Overview

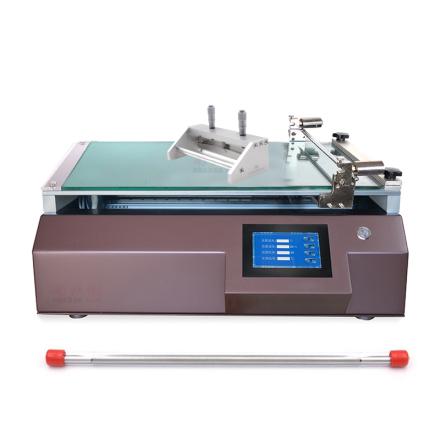

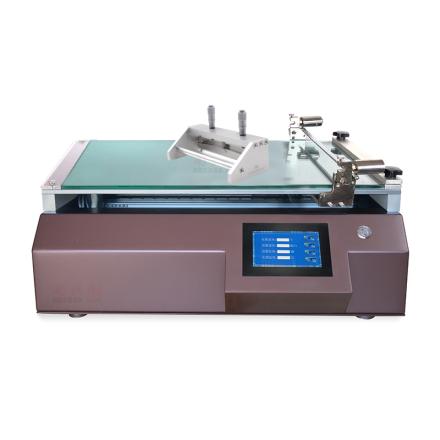

Automatic Film Applicator is a device used for intermediate coating film in laboratory. It replaces manual film and automatically films to improve the accuracy and efficiency of film. The Working Principle of Experimental Automatic Film Applicator is to uniformly Spreader the sample on the substrate by controlling the Spreader head and Spreader parameters to form the desired film. This Film Applicator is a bar drawdown blade Coater, with bar Spreader and Blade Coating two functions, the new bar Installation method and clamshell drawdown blade head greatly improve the efficiency of Spreader, easy to clean, with speed control and application length adjustment function, suitable for laboratory High Accuracy automatic film, Moulding proofing in laboratories such as university research institutes, New material, lithium, glue, Resin, etc.
Features
1. Hard aluminum alloy plate
2. Big brand differential regulator, high film thickness control accuracy
3. Clamped Blade Coating Head for Easy Cleaning
4. High Accuracy film applicator, original imported bar film uniform accuracy
5. Touchscreen control panel, easy to operate
6. Free adjustment of application length and Spreader speed
Principle
The Working Principle of Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and Spreader parameters. This Film Applicator adopts the drawdown Bar & Blade coating method, which is driven by a servo motor to achieve precise adjustment of coating speed and length, ensuring film uniformity and High Accuracy.
Applications
University research institutes, New materials, Lithium batteries, glues, Resin, Coatings, inks, paints, Stocks, Lithium batteries, Pressure sensitive adhesives, Polymer materials, pharmaceuticals and other laboratory film sample preparation
Steps
1. Prepare the substrate and fix it on the Spreader table
2. Select the coating method (bar or drawdown blade) and install the corresponding Spreader head
3. Set application length and Spreader speed parameters through Touchscreen
4. Start the equipment for automatic film operation
5. Clean the Spreader head after the Spreader is completed
Notice
• Ensure that the equipment power supply meets the requirements before use (220V/50HZ or customized voltage)
• Check whether the substrate is firmly fixed before Spreader
• Select the appropriate coating method and thickness parameters according to the sample characteristics
• Clean the Spreader head in time after the Spreader is completed, especially the clamshell drawdown blade head
• Pay attention to safety during operation and avoid contact with moving parts
• Regularly check the running status of the equipment and keep it clean
