Overview

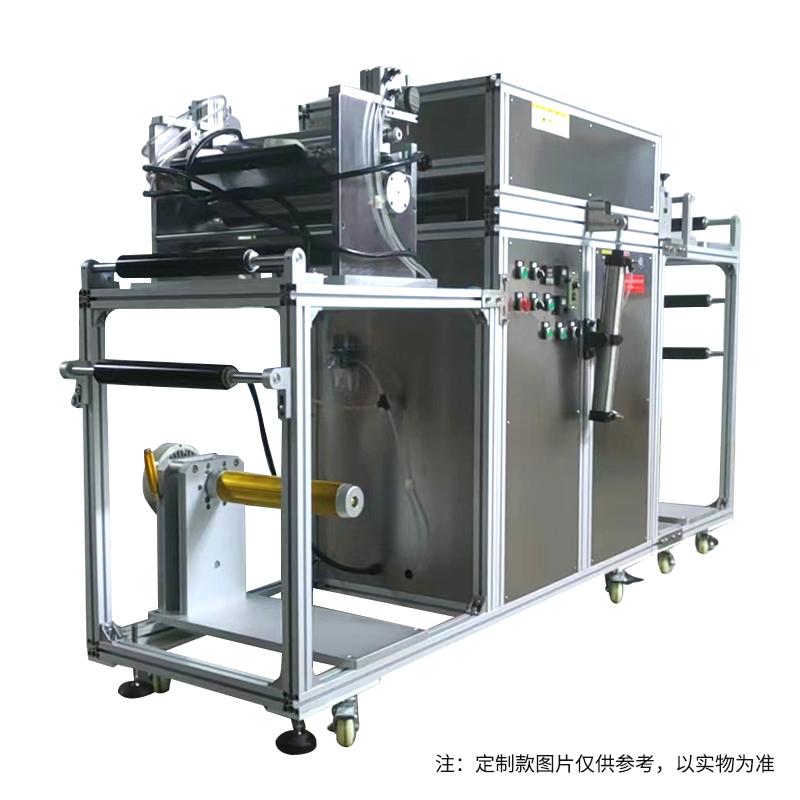

Automatic film applicator Rgd-01/800 is a factory direct oven coil Automatic film applicator, suitable for non-elastic materials such as water-based adhesive Spreader paper, film, aluminum foil, plastic, non-woven fabrics. The equipment integrates the functions of unwinding, scraping, drying, and winding, which can realize efficient and automated Spreader operations.
Features
1. Solid body composed of aluminum alloy + high electrostatic spray plate
2. Glue width adjustment device equipped with food-grade plastics and adjustable braces
3. Equipped with double discharge racks and with automatic deviation correction function
4. Coating roller set made of double roller precision machining parts, smooth transmission
5. Equipped with a thickness adjustment dial meter to precisely control the thickness of the Spreader
6. Stainless steel transmission platform to ensure smooth transmission of the substrate
7. Spreader work is completed by power transmission
8. Adjustable coating speed 1~ 10m/min, Spreader thickness range 0.005-3mm
9. Drying Temperature range RT +~ 200 ℃, Drying length 1m
10. Maximum discharge and receipt width 800mm, effective application width ≤ 800mm
Principle
The device sends the substrate into the coating roller group for scraping through the discharge rack, and the coating thickness is controlled by the dial adjustment handwheel. The substrate after Spreader is smoothly transmitted to the traction roller group through the stainless steel transmission platform, and the traction roller group pulls the substrate through the power transmission to complete the Spreader process. The drying tunnel provides a heating environment of RT +~ 200 ° C to ensure that the Spreader material is fully dried.
Applications
Paper, film, aluminum foil, plastic, non-woven fabric and other non-elastic materials
Steps
1. Place the substrate on the discharge rack
2. Adjust the glue width adjustment device to the desired width
3. Adjust Spreader thickness by thickness adjustment dial swirl/spin handwheel
4. Drag the substrate by hand between the upper and lower rollers of the traction roller
5. Tighten the handwheel on the rack to make the rubber ring of the upper roller of the traction roller contact the lower roller
6. Start the equipment, and the traction roller group completes the Spreader work through power transmission
7. Adjust the drying tunnel temperature to the desired range
8. Monitor Spreader process to ensure Spreader mass
