Overview

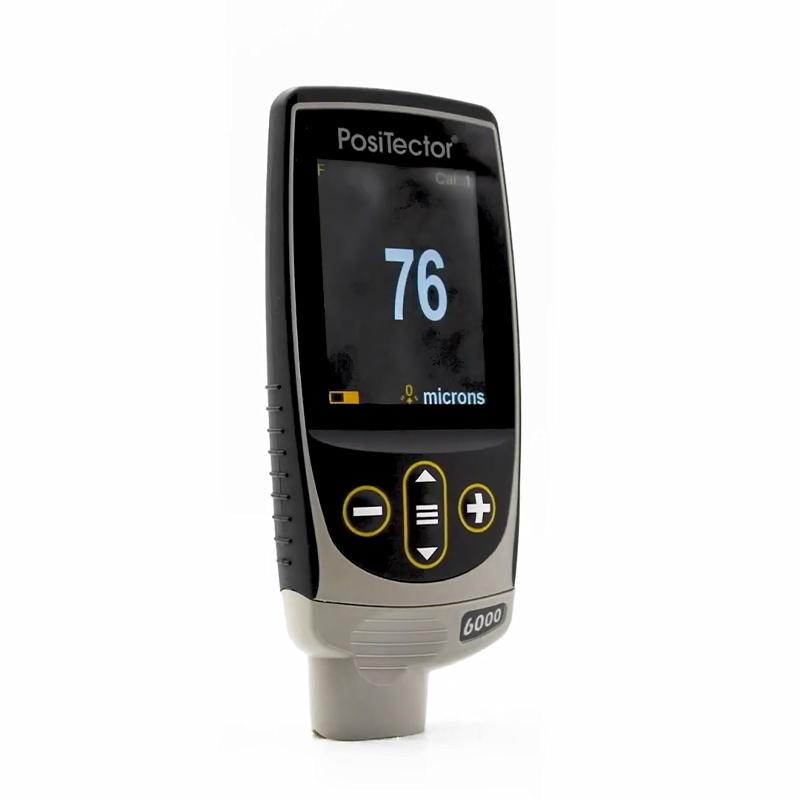

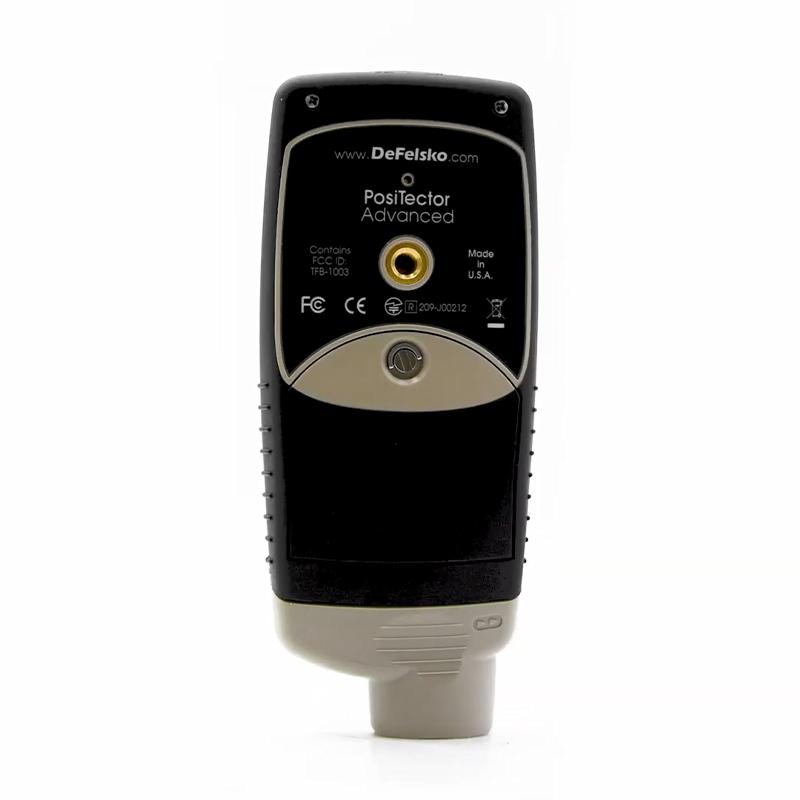

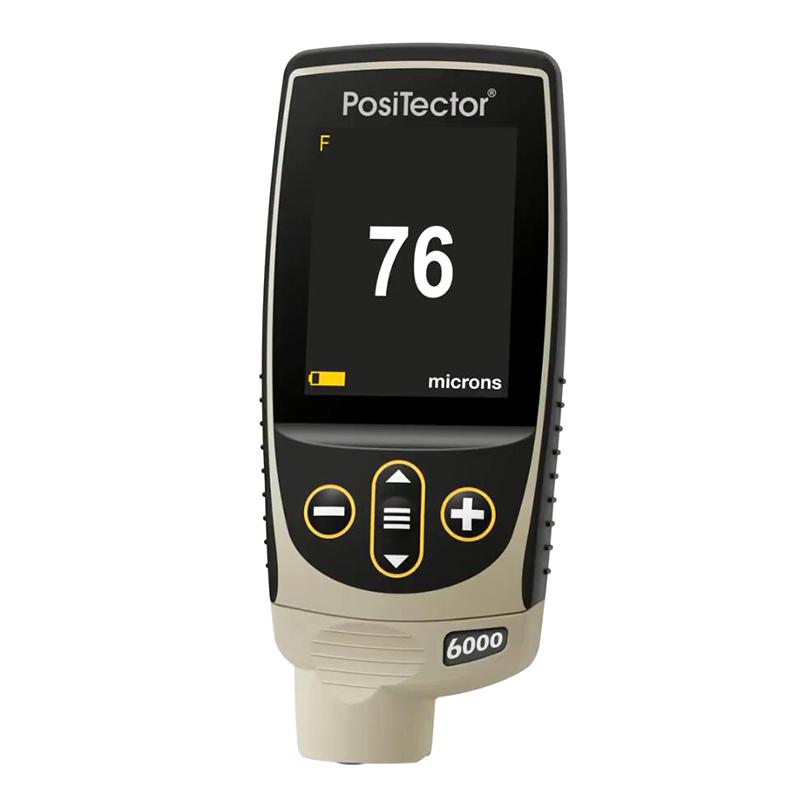

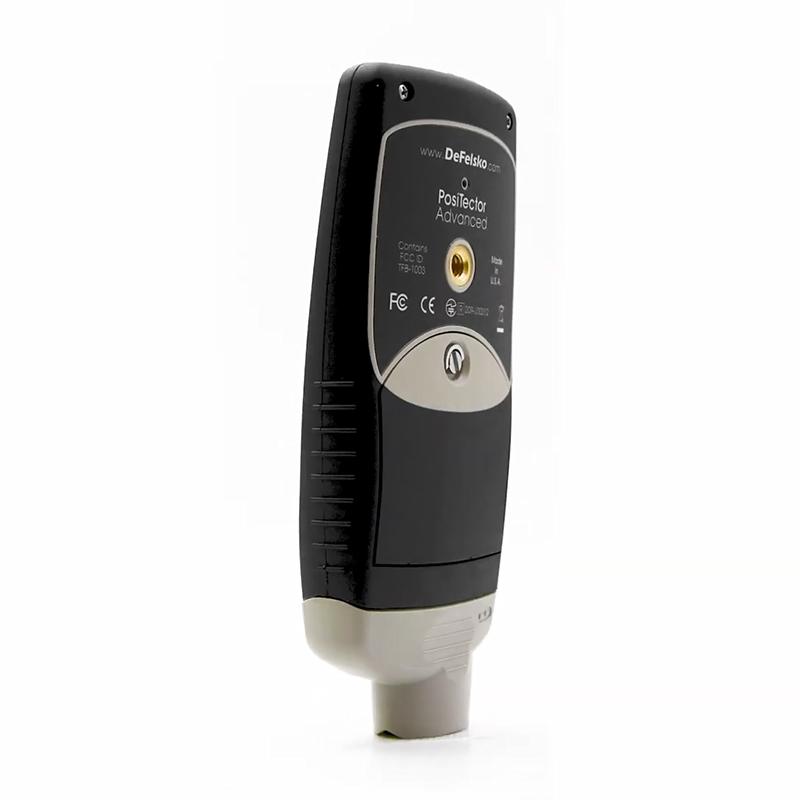

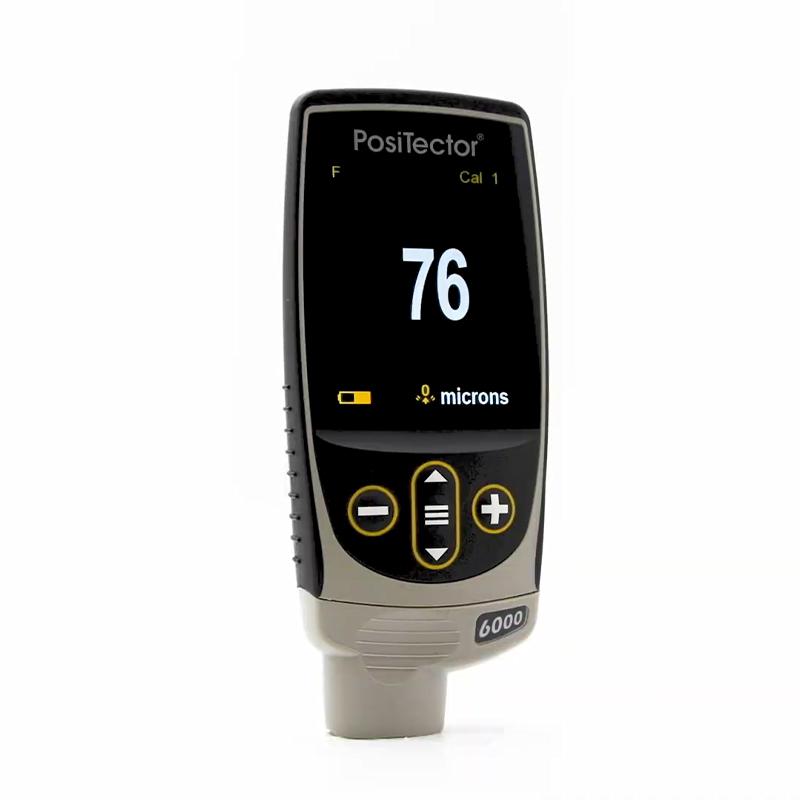

The Defelsko PosiTector 6000 FN3 metal thickness measurement instrument is a built-in probe type thickness measurement instrument with two functions of F Probe and N Probe, which can automatically identify different measurement substrates sensitively, and the measurement thickness range is 0~ 1250 microns. The instrument is compact, easy to carry, and has Abrasion Resistance Probe, which can be used normally in noisy environments. The dual functions include: measurement nonmagnetic coating when the substrate is ferrous metal; measurement nonconductive coating when the substrate is ferrous metal.
Features
1. Dual-function Probe (F Probe and N Probe) automatically identify substrates
2. Compact size, easy to carry
3. Abrasion Resistance Probe Design

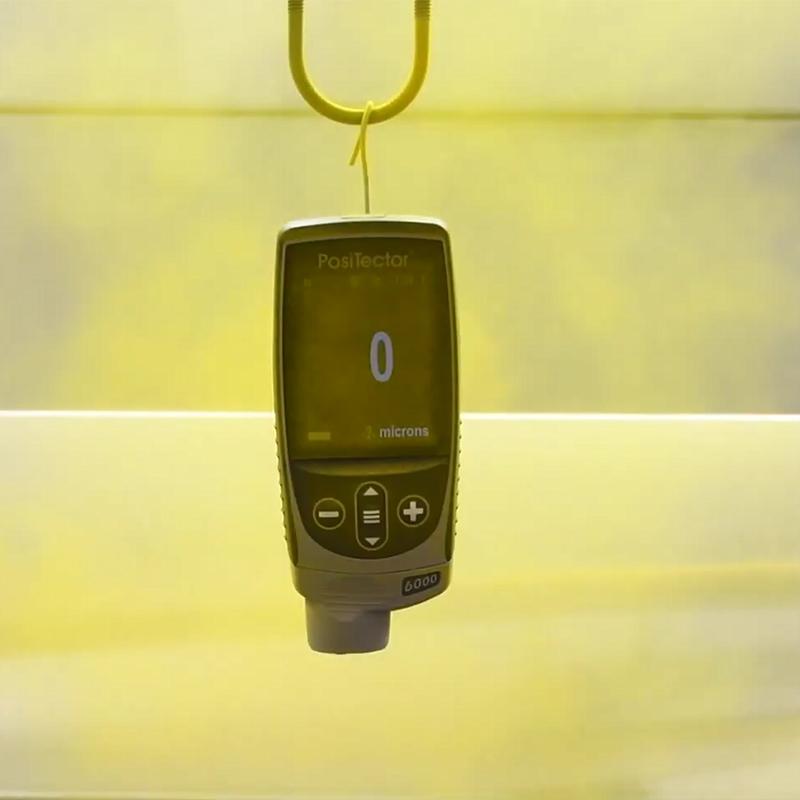

4. Normal use in noisy environment
5.2.8 inch Color Touchscreen
6. Support USB and Bluetooth Interface
7. IP65 Protection Ratings
High-speed measurement with more than 180 readings per minute
9. Data storage with 250,000 Measured values and 1000 packets
10. Support screen image saving (100)
Principle
Measurement principles of magnetic Induction and eddy Current can automatically identify ferrous and non-ferrous metal substrates and automatically convert measurements in magnetic and nonmagnetic environments.
Applications
Metallic coating thickness measurement, industrial testing, quality control, painting engineering
Standards
ISO 2178、ISO 2360、ISO 2808、PrEN ISO 19840、ASTM B499、ASTM D1186、ASTM D1400、ASTM D7091、ASTM E376、ASTM G12、BS3900-C5、SSPC-PA2
Steps
1. Install 3 AAA alkaline batteries
2. Power on and select the system language (Chinese or English)
3. Probe into contact with the surface to be tested
4. The instrument automatically recognizes the type of substrate and makes measurements
5. View measurement results and statistics through Touchscreen
6. Transfer data to PosiSoft software using USB or Bluetooth
7. Save screen images (up to 100)
Notice
• Coating thickness measurement for all metal substrates only
• Probe clean before measurement
• Avoid use in extreme temperatures or Humidity environments
• Regularly calibrate using Defelsko calibrating standards (STDS1, STDA1)
• Replace the battery in time when the battery is low
• Data storage needs to be exported in time when it is full
