Overview

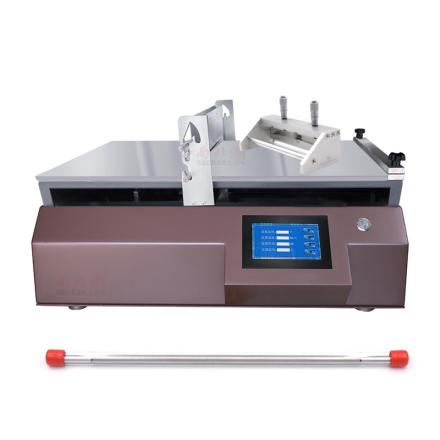

Automatic Film Applicator is a device for intermediate coating film in the laboratory. It replaces manual film and automatically films to improve the accuracy and efficiency of film. This Film Applicator is a servo motor High Accuracy bar drawdown blade Coater. It adopts two coating methods of bar and drawdown blade. It has heating and drying function. The new bar Installation method and clamshell drawdown blade head greatly improve the efficiency of Spreader, easy to clean, and has speed control and application length adjustment functions. It is suitable for laboratory High Accuracy automatic film.
Features
1. Surface hard treatment Aluminum alloy countertop, Hardness and wear resistance, Smoothness of countertop is detected by imported High Accuracy instrument
2. Big brand differential regulator, high film thickness control accuracy
3. Clamped Blade Coating Head for Easy Cleaning
4. High Accuracy film applicator, original imported bar film uniform accuracy
5. Touchscreen control panel, easy to operate
6. Free adjustment of application length and Spreader speed
7. With heating function, suitable for hot-melt adhesive film
Principle
The Working Principle of Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and Spreader parameters. High Accuracy film is realized by using two coating methods, bar and drawdown blade, driven by servo motor.
Applications
Moulding proofing in research institutes of universities, hot-melt adhesive, New material, lithium battery, glue, Resin and other laboratories. Suitable for Coating, inks, paints, Stock, hot-melt adhesive, lithium battery, Pressure sensitive adhesive, Resin, glue, polymer materials, pharmaceuticals and other film samples, can be scratched on Glass, cardboard, fabric.
Steps
1. Prepare the substrate and samples
2. Set Spreader parameters (application length, Spreader speed, temperature, etc.) through Touchscreen
3. Select coating method (bar or drawdown blade)
4. Start the device for automatic filming
5. Clean the Spreader head after finishing the film
Notice
• Ensure that the equipment power supply meets the requirements before use (220V/50HZ or customized voltage)
• Check whether the substrate is firmly fixed before Spreader
• Select the appropriate coating method and parameters according to the sample characteristics
• Pay attention to the temperature setting when using the heating function to avoid overheating
• Clean the Spreader head in time after the Spreader is completed to keep the equipment clean
• Regularly check all parts of the equipment to ensure normal operation
