Overview

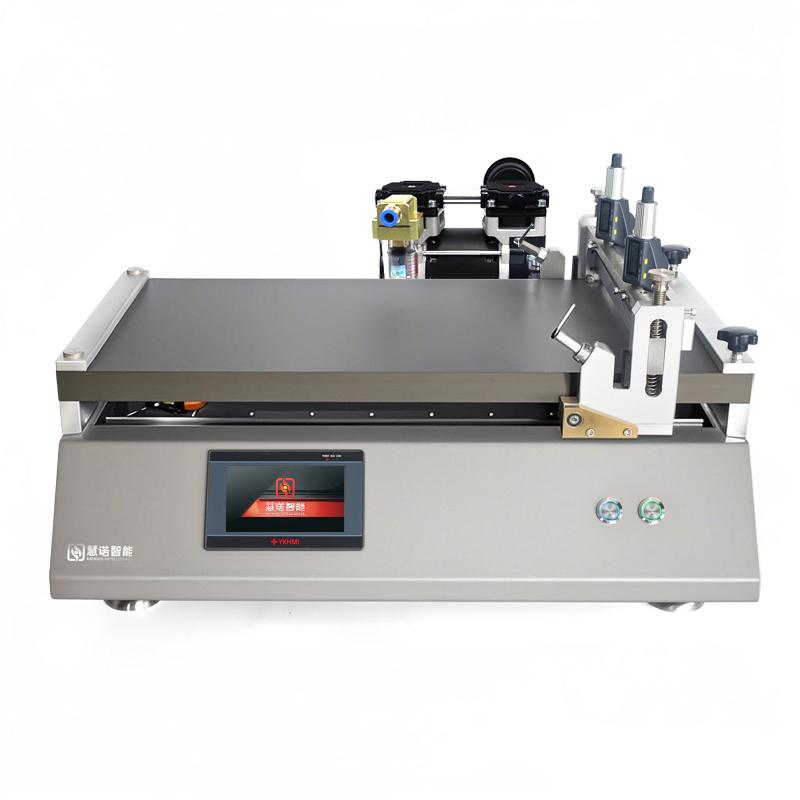

Automatic Film Applicator is a device used for intermediate coating film in laboratory. It replaces manual film and automatically films to improve the accuracy and efficiency of film. The Working Principle of Experimental Automatic Film Applicator is to uniformly Spreader the sample on the substrate by controlling the Spreader head and Spreader parameters to form the desired film. This Film Applicator is a bar drawdown blade Coater, with bar Spreader and Blade Coating two functions, the new bar Installation method and clamshell drawdown blade head greatly improve the efficiency of Spreader, easy to clean, with speed control and application length adjustment function, suitable for laboratory High Accuracy automatic film, Moulding proofing in laboratories such as university research institutes, New material, lithium, glue, Resin, etc.
Features
1. Surface hard treatment Aluminum alloy countertop, Hardness and wear resistance, Smoothness of countertop is detected by imported High Accuracy instrument
2. Big brand differential regulator, high film thickness control accuracy
3. Clamped Blade Coating Head for Easy Cleaning
4. High Accuracy film applicator, original imported bar film uniform accuracy
5. Touchscreen control panel, easy to operate
6. Free adjustment of application length and Spreader speed
7. Vacuum chuck and heating
Principle
Automatic Film Applicator controls the Spreader head and Spreader parameters to evenly Spreader the sample on the substrate to form the desired film. High Accuracy automated film is achieved by using bar Spreader and Blade Coating, combined with Vacuum chuck to fix the substrate.
Applications
Coatings, inks, paints, Stocks, Lithium batteries, Pressure sensitive adhesives, Resins, glues, polymer materials, pharmaceuticals and other film samples
Steps
1. Prepare the substrate and samples
2. Set application length and Spreader speed via Touchscreen
3. Select Bar or Blade Coating Method
4. Start the device for automatic filming
5. Clean the Spreader head after finishing the film
Notice
• Make sure the power supply of the device is connected correctly before use
• Spreader parameters need to be adjusted according to sample characteristics
• Clean Spreader head and countertop regularly to maintain accuracy
• Pay attention to safety during operation and avoid contact with heating parts
