Overview

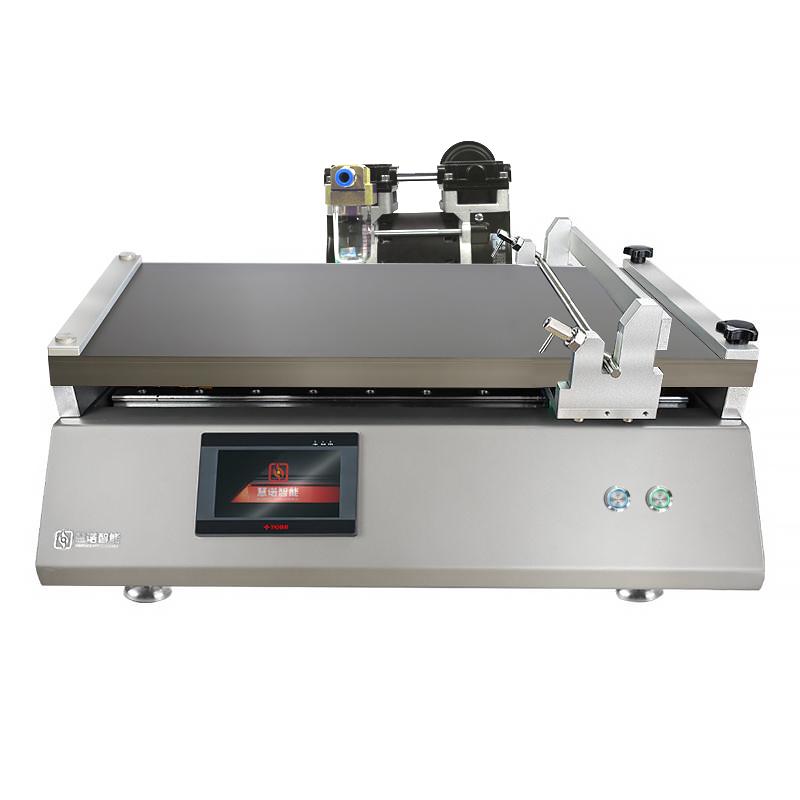

Automatic Film Applicator is a device used for intermediate coating film in laboratory. It replaces manual film and automatically films to improve the accuracy and efficiency of film. The Working Principle of Experimental Automatic Film Applicator is to uniformly Spreader the sample on the substrate by controlling the Spreader head and Spreader parameters to form the desired film. This Film Applicator is a bar type Automatic film applicator, with heating and Vacuum chuck function, innovative bar Installation method and clamshell drawdown blade greatly improve Spreader efficiency, easy to clean, support speed control and application length adjustment, suitable for laboratory High Accuracy automatic film, Moulding proofing in laboratories such as university research institutes, New material, lithium battery, glue, Resin, etc.
Features
1. Surface hard treatment Aluminum alloy countertop, Hardness and wear resistance, Smoothness of countertop is detected by imported High Accuracy instrument
2. Big brand differential regulator, high film thickness control accuracy
3. With heating and Vacuum chuck function
4. High Accuracy film applicator, original imported bar film uniform accuracy
5. Touchscreen control panel, easy to operate
6. Free adjustment of application length and Spreader speed
Principle
The Working Principle of Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and Spreader parameters. High Accuracy film is achieved by precisely controlling the coating speed and application length by using the bar coating method combined with Vacuum chuck to fix the substrate.
Applications
Coatings, inks, paints, Stocks, Lithium batteries, Pressure sensitive adhesives, Resins, glues, polymer materials, pharmaceuticals and other film samples
Steps
1. Prepare the substrate and samples
2. Place the substrate on the Spreader table and turn on the Vacuum chuck to fix
3. Set the heating temperature as needed
4. Adjust Spreader speed and application length via Touchscreen
5. Install bar film applicator
6. Start the device for automatic filming
7. Remove the sample after the film is completed
8. Cleaning film applicators and countertops
Notice
• Check the working status of the power supply and vacuum pump before use
• Ensure that the substrate is fixed flat on the Spreader table
• Select the appropriate Spreader parameters according to the sample characteristics
• Avoid touching the heating area during operation
• Regularly clean film applicators and countertops
• Turn off the power when the device is not in use
