Overview

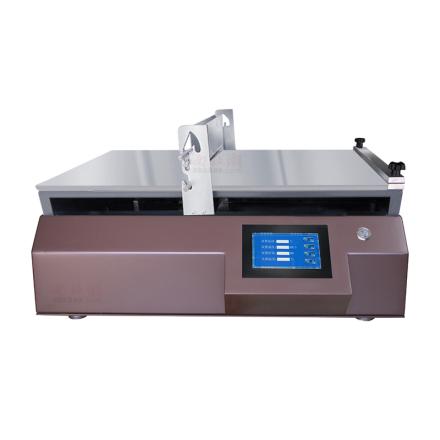

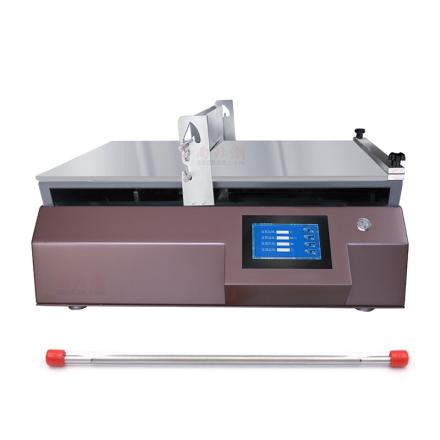

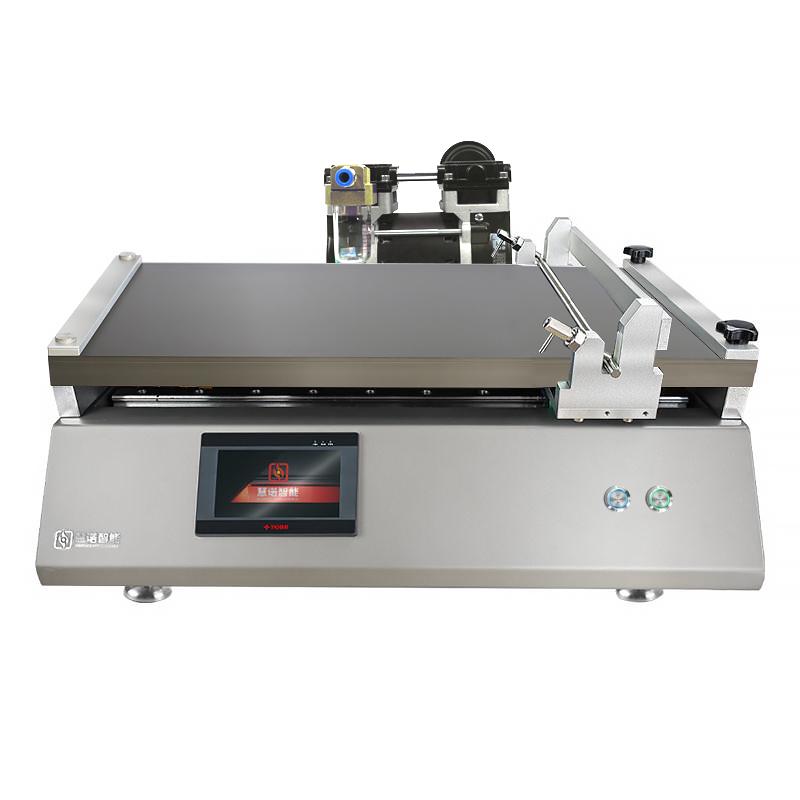

Automatic Film Applicator is a device for intermediate coating film in the laboratory, replacing manual film and automatically filming to improve the accuracy and efficiency of film. This Film Applicator is a High Accuracy bar Coater with servo motor, with heating and Vacuum chuck function, the new bar Installation method and clamshell drawdown blade greatly improve the efficiency of Spreader, easy to clean, support speed control and application length adjustment, suitable for laboratory High Accuracy automatic film, Moulding proofing in university research institutes, New material, lithium battery, glue, Resin and other laboratories.
Features
1) Surface hard treatment aluminum alloy countertop, Hardness and wear resistance, Smoothness of countertop is detected by imported High Accuracy instrument.
2) Big brand differential regulator, high film thickness control accuracy
3) With heating and Vacuum chuck function
4) High Accuracy film applicator with high accuracy of original imported bar film
5) Touchscreen control panel, easy to operate
6) Free adjustment of application length and Spreader speed
7) Using servo motor, stable operation, higher film accuracy
Principle
The Working Principle of Experimental Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and Spreader parameters.
Applications
Coatings, inks, paints, Stock, Lithium batteries, Pressure sensitive adhesives, Resin, Glue, Polymer materials, pharmaceuticals and other film samples, can be scraped on Glass, cardboard, fabric
Steps
1) Prepare the substrate and samples
2) Set Spreader parameters (application length, Spreader speed)
3) Install bar film applicator
4) Start Vacuum chuck fixed substrate
5) Turn on the heating function as needed
6) Start filming through the Touchscreen control panel
7) Cleaning equipment after film
Notice
• Check whether the Power supply voltage matches before use
• Vacuum chuck system working properly
• Pay attention to temperature control when heating to avoid burns
• Clean the bar and countertops in time after the film is completed
• Regularly check the operating status of the equipment
• Customized parameters need to be confirmed in advance
