Overview

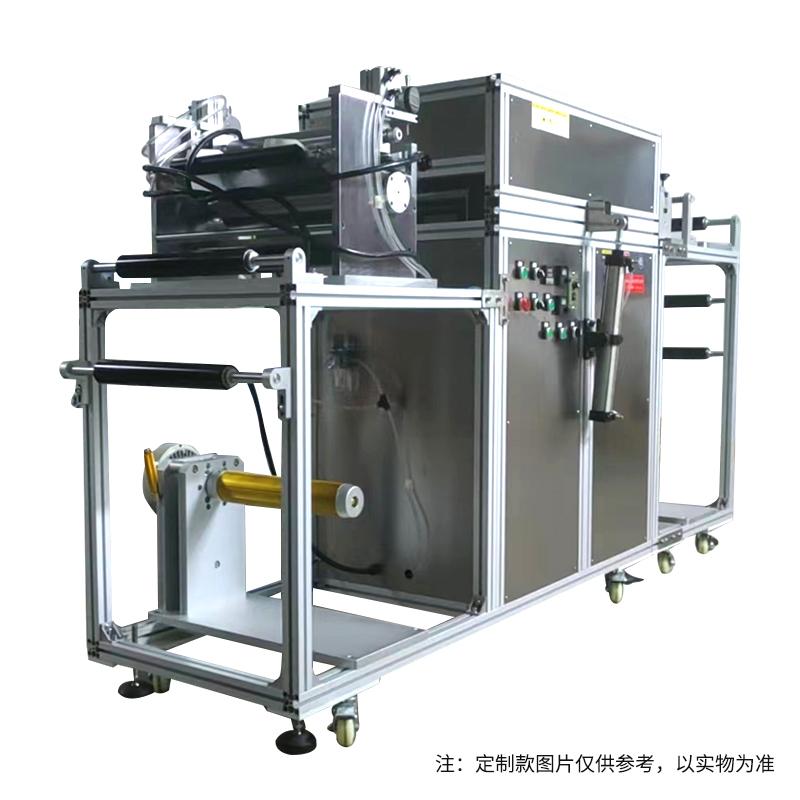

Rxg-01/600 Pilot Coil Automatic film applicator is a factory direct roll-to-roll Spreader with roll unwinding, scraping, drying, weaving, Laminating and winding functions. The machine has an application width of 600mm, a wet film thickness range of 0.005-3mm, and a roller heating temperature of up to 200 ° C. It is dedicated to PUA glue film applications.
Features
1. Spreader process is complete, including unwinding, scraping, drying, weaving, Laminating and winding;
2. Adjustable coating speed, range of 1~ 10m/min;
3. The effective application width is adjustable, the range is 100~ 600mm;
4. Spreader thickness range is wide, 0.005-3mm;
5. Temperature range, from room temperature to 200 ℃;
6. Equipped with a deviation correction device to automatically adjust material alignment.
7. The coating roller group is precisely machined by double rollers, resulting in smooth transmission.
8. Thickness adjustment is precisely controlled by a dial gauge.
9. The body adopts aluminum alloy and high electrostatic spray plate, and the structure is strong.
Principle
The machine scrapes the substrate through the coating roller group, and the thickness of the Spreader is controlled by the dial adjustment handwheel. After the substrate is glued, it is smoothly transferred from the transmission platform to the drying tunnel for drying, and the drying tunnel temperature can reach 200 ° C. During the coating process, the deviation correction device automatically adjusts the position of the discharge rack to ensure the alignment of the materials, and finally completes the winding through the traction roller group.
Applications
Pilot material Spreader, PUA glue film
Steps
1. Place the substrate on the discharge rack.
2. Manually pull the substrate between the traction roller groups.
3. Tighten the handwheel to make the traction roller contact the substrate.
4. Adjust the width and thickness of the glue, set it through the swirl/spin handwheel and follow the dial indicator;
5. Start the equipment, Spreader process automatically, including scraping, drying, correction, Laminating and winding;
6. Monitor coating speed and temperature to ensure operation within 1~ 10m/min and setting range.
Notice
• Power supply voltage is 220V before operation;
• Ensure accurate adjustment of Spreader thickness to avoid exceeding the range of 0.005-3mm;
• The drying tunnel temperature shall not exceed 200 ° C to prevent overheating damage;
When pulling the substrate, pay attention to safety and avoid hand involvement.
• Regularly maintain the coating roller group and transmission parts to ensure smooth operation;
• Use PUA glue that meets specifications to ensure film mass.
