Overview

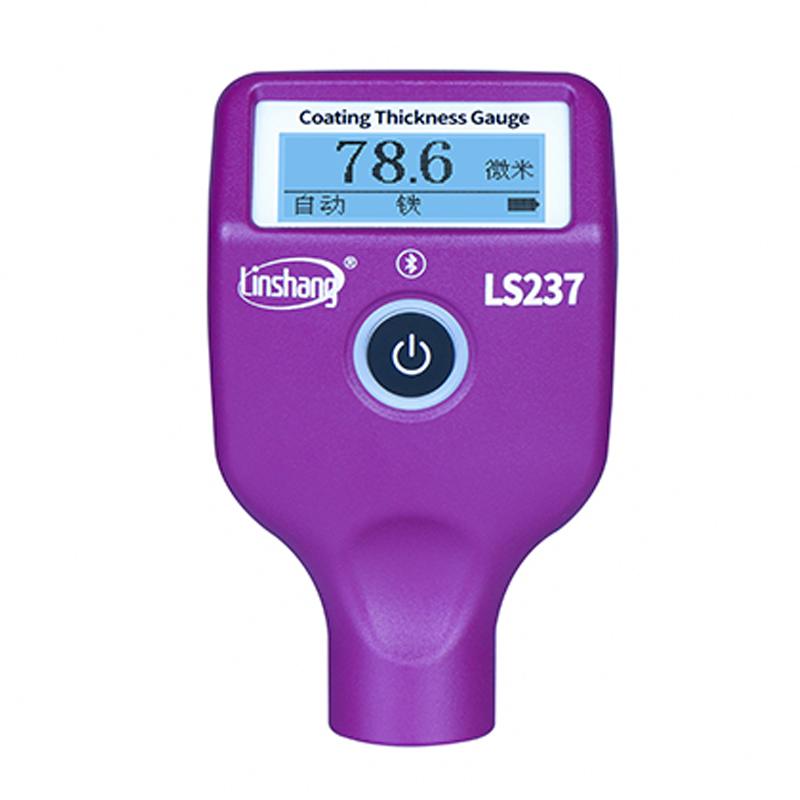

The LS237 paint film instrument is a professional instrument for car paint thickness detection. It can measure the thickness of car paint on iron and aluminum materials, intelligently identify Non-metallic shells, iron powder putty layer and iron galvanized layer. The instrument uses three-color backlight and indicator light to display different paint thicknesses. It is equipped with swirl/spin screen, rechargeable lithium battery and Bluetooth function. It supports Mini Program and APP to generate car inspection reports.
Features

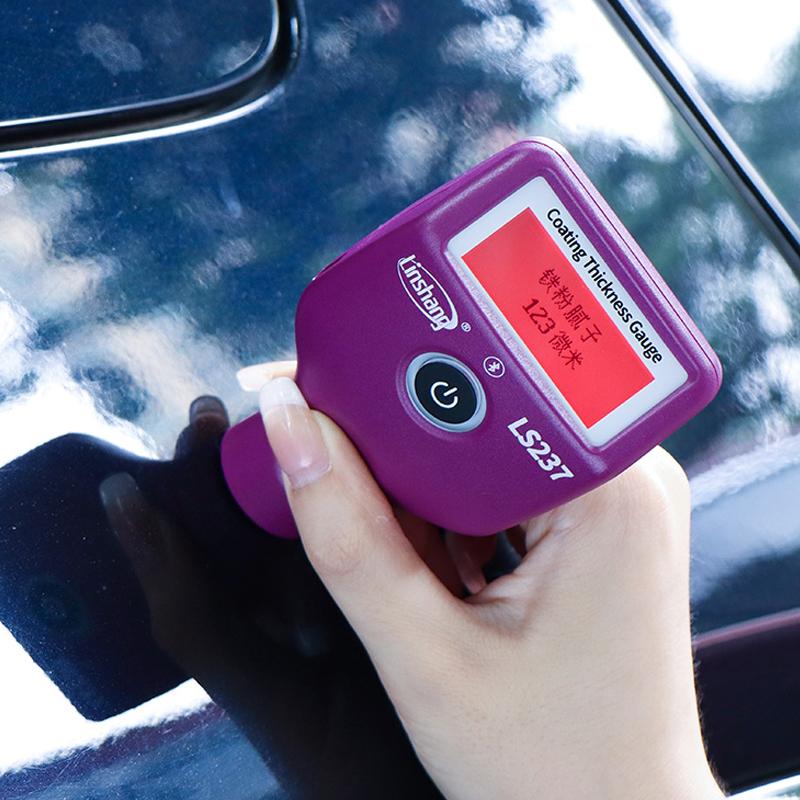

1. Intelligent identification of iron powder putty, beep twice during measurement and the backlight and indicator light are bright red.
2. Multi-purpose machine, can quickly detect iron, aluminum, iron galvanized and non-metallic body.
3. Three-color display function, display different Color backlight and indicator light according to paint thickness.

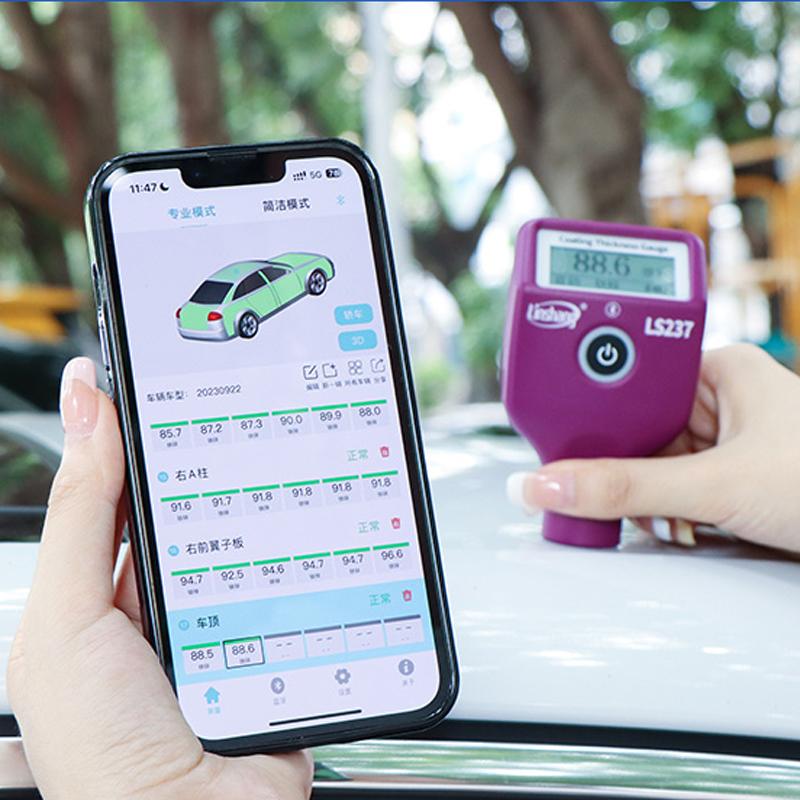

4. Equipped with WeChat Mini Program and APP, generate and share car inspection reports through Bluetooth.
5. Can bind mobile phone number to prevent loss, boot display binding number.
6. Ultra-large range, with a maximum thickness of 3500 μm.

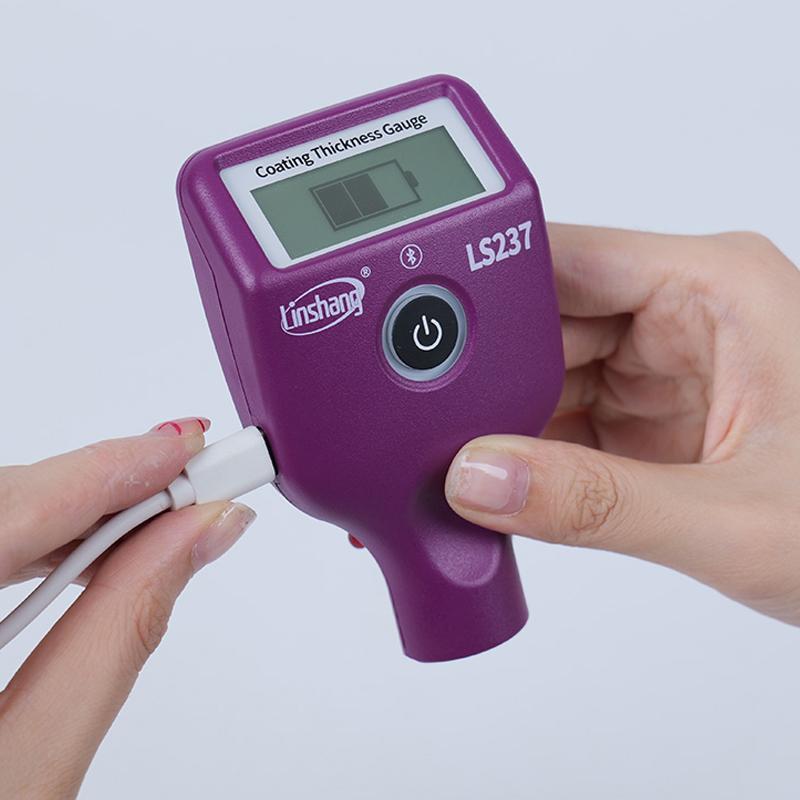

7. Adopt rechargeable lithium battery, Type-C interface charging, battery life over 50 hours.
8. Measurement speed is fast, 0.5 seconds to complete a measurement.
9. Use a hard and wear-resistant ruby probe to reduce abrasion errors.
10. Using reliable digital Probe technology, digital signal processing is completed on Probe, and the data is stable. Repeatability is good.
11. The screen can be swirled/spun for easy reading.
12. Support free switching of languages in 5 countries.
Principle
The LS237 film meter is based on the Hall effect and eddy Current principle for measurement. For iron substrates, the Hall effect is used to detect magnetic changes; for aluminum substrates, the eddy Current method is used to detect conductivity changes. The digital Probe directly processes the signal to ensure accuracy and Stability, and quickly outputs the film thickness data.
Applications
Automotive paint thickness detection
Standards
DIN EN ISO 2808、JJG-818-2005、GB/T 4956-2003、GB/T 4957-2003
Steps
1. Turn it on and ensure that the instrument has sufficient power.
2. Select Iron/Aluminum Measurement mode.

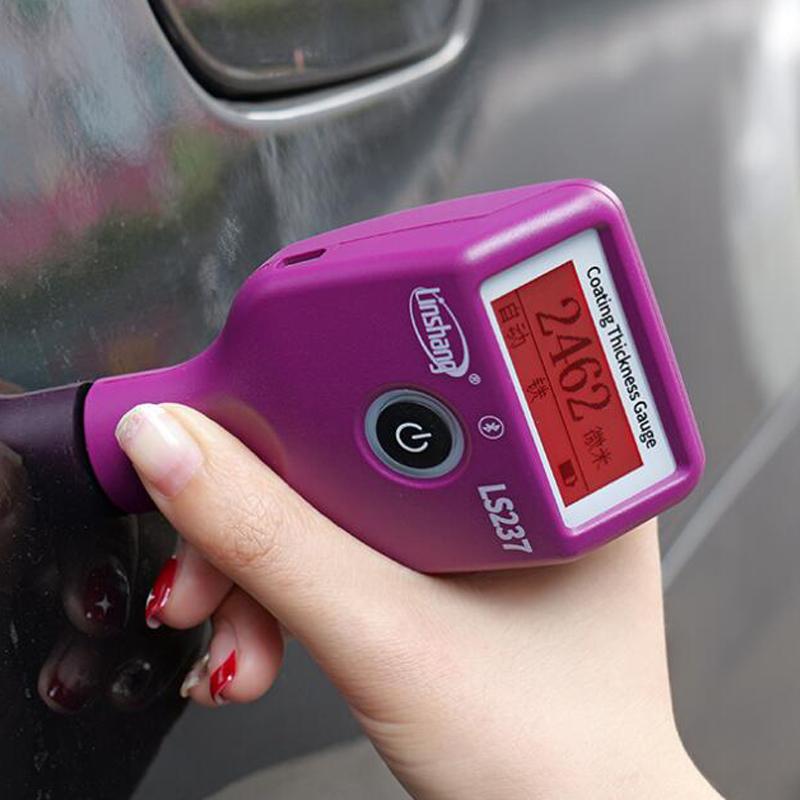

3. Fit the probe vertically to the paint surface to be tested.
4. Wait 0.5 seconds to read the measurement result.
5. Swil/spin the screen or connect to Bluetooth to export the report as needed.
Notice
• Make sure the probe is vertically attached to the surface during measurement.
• Avoid use in extreme temperature environments.
• Regularly check the probe for abrasion.
• Use the original Type-C interface when charging.
• Bind mobile phone number in case the instrument is lost.
