RDS 44 #1/4 Applicator Rod formed stainless steel 100.6μm wet film thickness

Name: RDS 44 #1/4 Applicator Rod formed stainless steel 100.6μm wet film thickness
Brand: RDS
SKU: NB004578
Price: 158.0 USD
Availability: PreOrder

$ 158.00Ex works

The formed process does not require winding steel wire, the film thickness is controlled through the groove, and the 100.6 micron wet-film can be prepared, the application width is 300mm, and the stainless steel material ensures long-term stable use.

Model

Get Quote

Category : Coating Rod

Brand : RDS

SKU : NB004578

Service :The delivery and service By NBCLab.Com

Overview

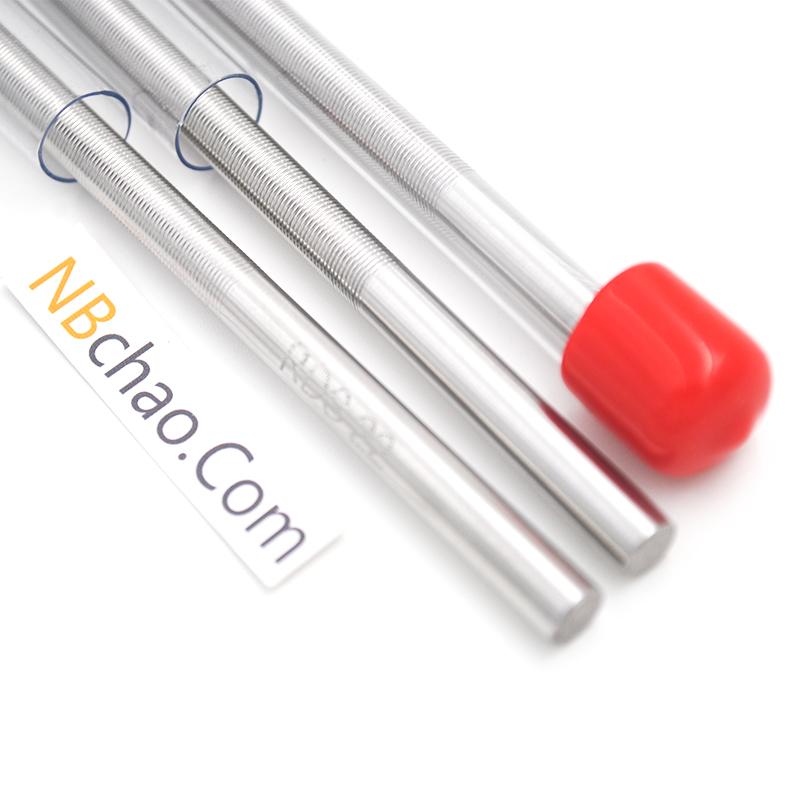

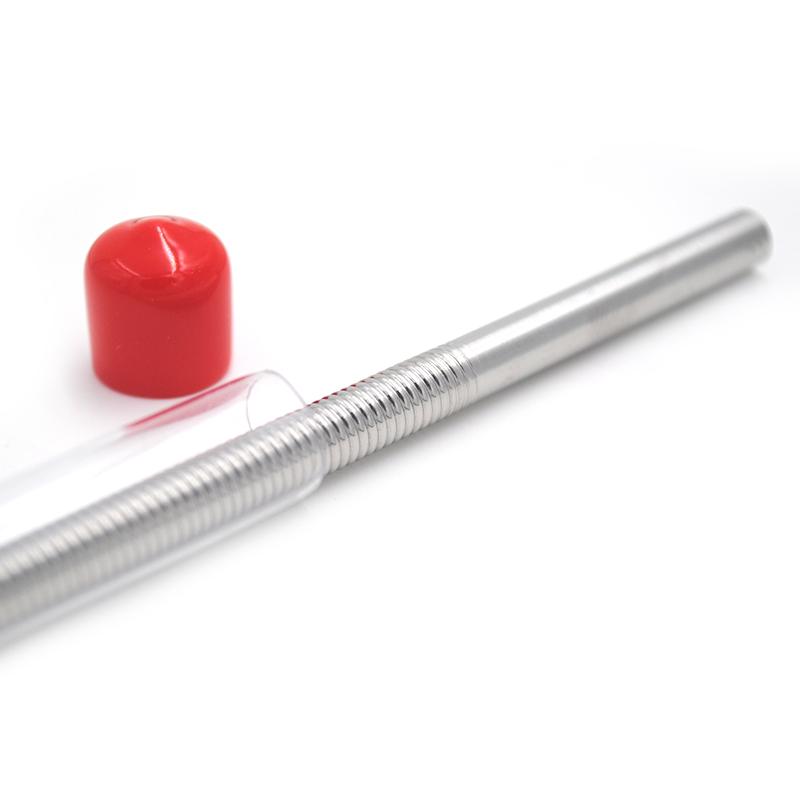

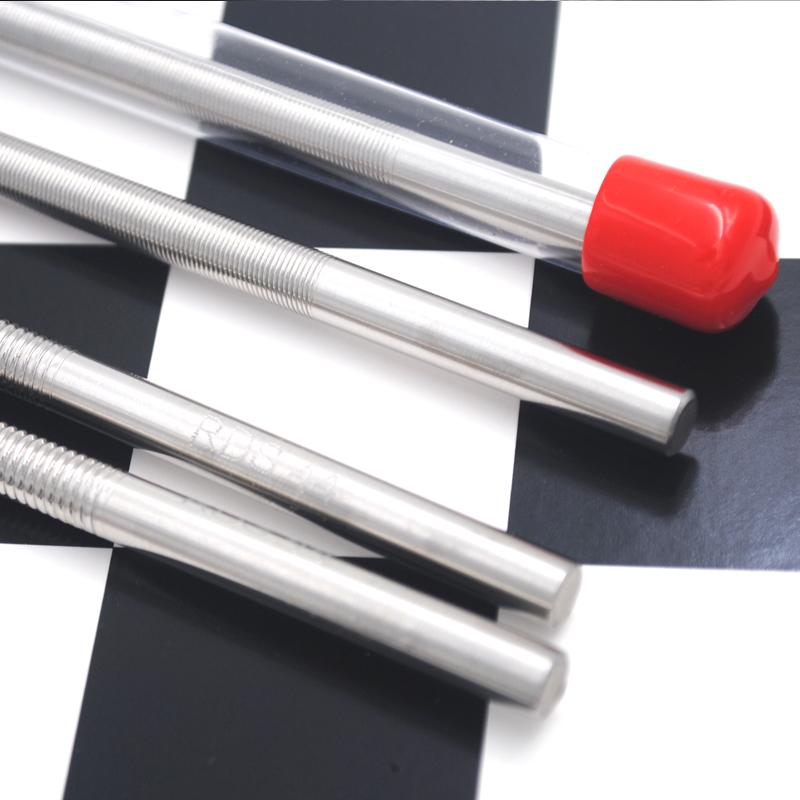

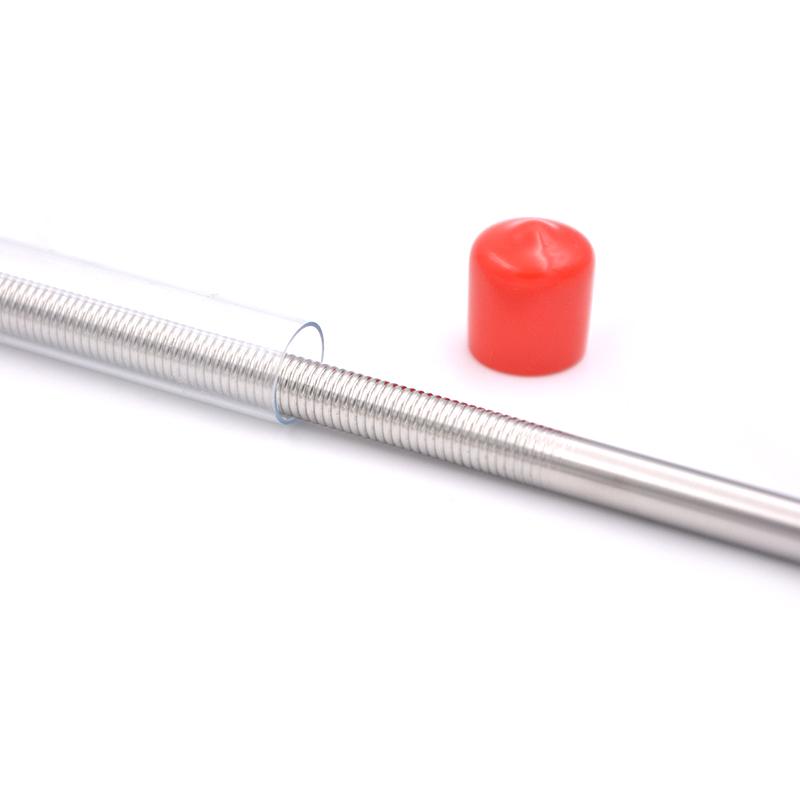

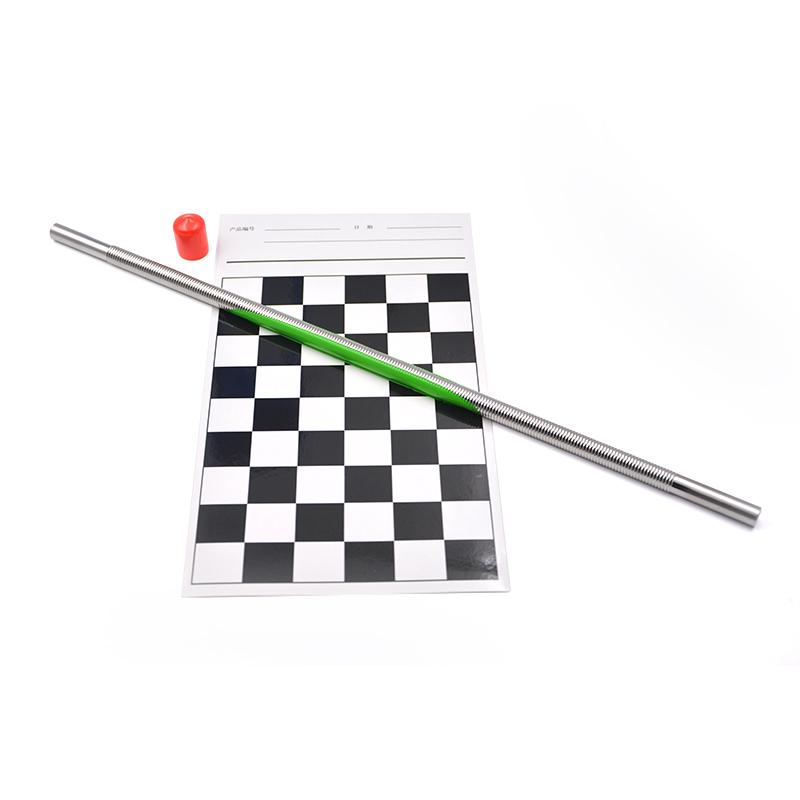

US RDS #44 Mayer Rods is a coating rod that inherits the principle of "Mayer" rod Spreader, which is a coating rod with a specific wet film thickness. It adopts a new extrusion process technology to develop, without winding the steel wire, and controls the film thickness through the groove size. This model can prepare a wet film thickness of 100.6 microns, and the effective application width is 300mm.

Features

1. Adopt formed production process without winding steel wire 2. Precise control of film thickness by groove size 3. Can be prepared 100.6 micron wet film thickness 4. Effective application width up to 300mm 5. Provide a variety of model options, a wide range of films 6. Equipped with wet-film calculator selection tool for users to choose

Principle

The wire rod coating applicator is based on the "Mayer" rod Spreader principle, and the thickness of the Spreader wet-film is controlled by the groove size formed by the extrusion process to form a uniform film of a specific thickness during the Spreader process.

Specifications

Production process: formed, wet film thickness: 100.6μm, diameter: 6.35mm, total length: 400mm, application width: 300mm, hand width: 50 + 50mm, material: stainless steel

Production process
formed
wet film thickness
100.6μm
rod diameter
6.35mm
Total length
400mm
application width
300mm
Grip Width
50+50mm
material
stainless steel

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
