Overview

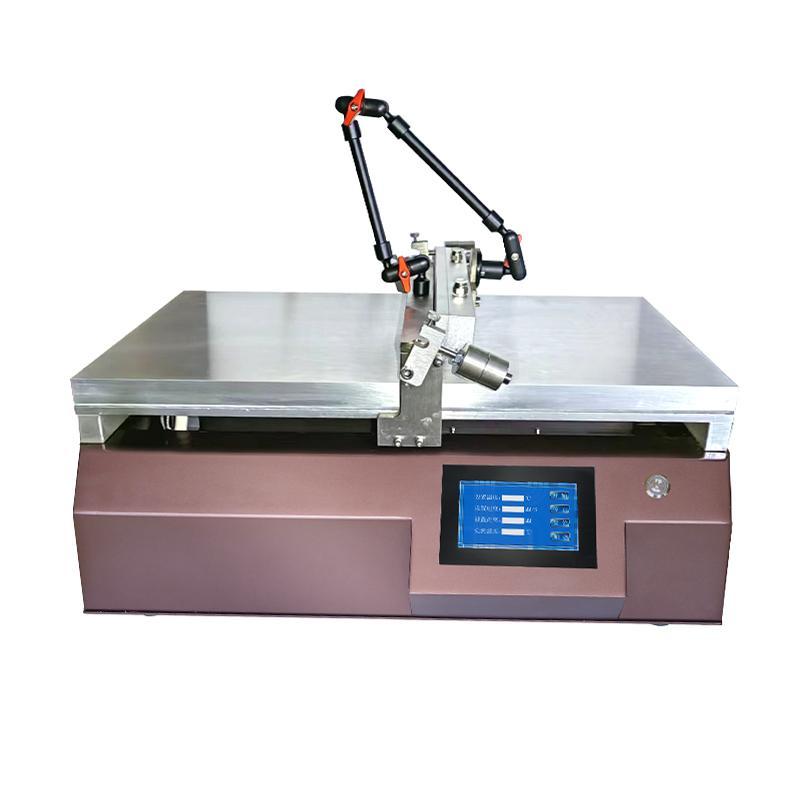

The perovskite-specific Automatic Film Applicator TBJ-X4-ABO4 is equipped with imported High Accuracy Mayer Rods with heating function and air knife and air knife holder. It uses nitrogen as a gas source to accelerate the drying of perovskite solution, the air knife can be adjusted at a 360-degree angle, and the Dry-Film can be as thin as nano-level. The device is designed to solve the problem of artificial film inconsistency. Spreader precision wet-film on different substrates through automated operation, significantly improving film reproducibility.
Features
1. Equipped with Imported High Accuracy Mayer Rods
2. Integrated heating function, Temperature range RT +~ 180 ℃
3. Equipped with air knife and air knife bracket, using nitrogen to accelerate drying
4. Air knife 360-degree angle adjustable, Dry-Film thinnest up to nano-scale
5. coating speed 0.1~ 40mm/s stepless speed control
6. Support bar, drawdown blade, air knife coating method
7. Spreader accuracy, meyer rod coating accuracy +/- 0.001mm, Blade Coating accuracy +/- 0.003mm
8. The effective coating area is 400 * 300mm to meet the needs of different samples
Principle
The equipment unifies the Spreader perovskite solution on the substrate through High Accuracy Mayer Rods, uses the heating function to improve the efficiency of the Spreader, and uses the air knife to blow nitrogen to accelerate the solution drying process. The angle of the air knife can be adjusted 360 degrees to ensure the uniformity of drying and achieve nano-scale dry-film thickness control. Automated operation eliminates the inconsistency of artificial film, ensuring the Stability and reproducibility of film mass.
Applications
Perovskite Material Spreader, Scientific Research Experiment, Material Preparative, Thin Film Preparative
Standards
Host power supply 220V 50Hz
Steps
1. Prepare perovskite solution and substrate
2. Set Spreader parameters (speed, temperature, etc.)
3. Install the appropriate coating applicator (bar, drawdown blade or air knife)
4. Start the Device for Auto Spreader
5. Use an air knife to accelerate the drying process
6. Remove the sample after completing the Spreader
Notice
• Make sure the power supply meets the 220V 50Hz requirements before use
• Pay attention to the angle adjustment of the air knife during operation
• Spreader thickness range according to bar model
• Keep the coating table clean
• Regularly check equipment accuracy
• Pay attention to safety when using nitrogen as a gas source
