Overview

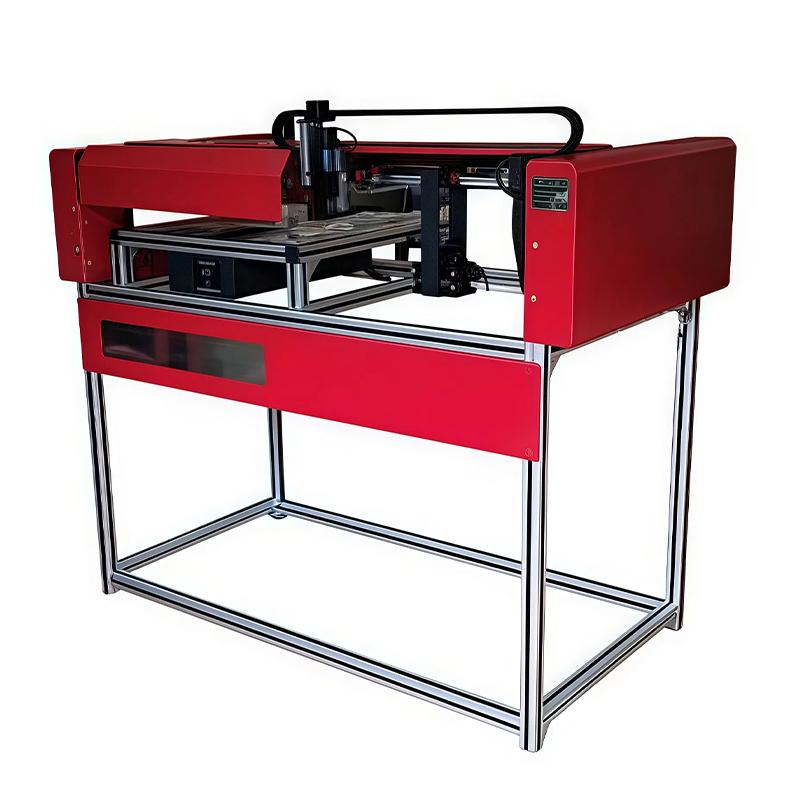

JY-82D large sample automatic video contact angle tester is a professional test equipment of Dingsheng brand, which can test samples of any size in multiple directions. The platform adopts Aluminum profile design, Appearance is precise, and the test is convenient. It is suitable for large sample testing. At the same time, it is equally convenient for small sample testing. Test accuracy is high and titration is convenient. Standard Dimension is 1200 * 740 * 380mm, and Test Sample Platform size is 650 * 650mm.
Features
0.7-4 high definition industrial grade continuous zoom Microscope
2. Adjustable backlight plane parallel Illuminant to ensure high image clarity without distortion
3. Can be arbitrarily set to capture image time timing acquisition and full video recording
4. Test any point on the surface of a large sample through a sliding table moving titration system and a camera system
5. The titration system adopts double-step motor control to realize automatic setting, titration and reset, and the titration is convenient and accurate
6. Industrial digital black and white camera for image acquisition, continuous zoom adjustment luminance, high image definition

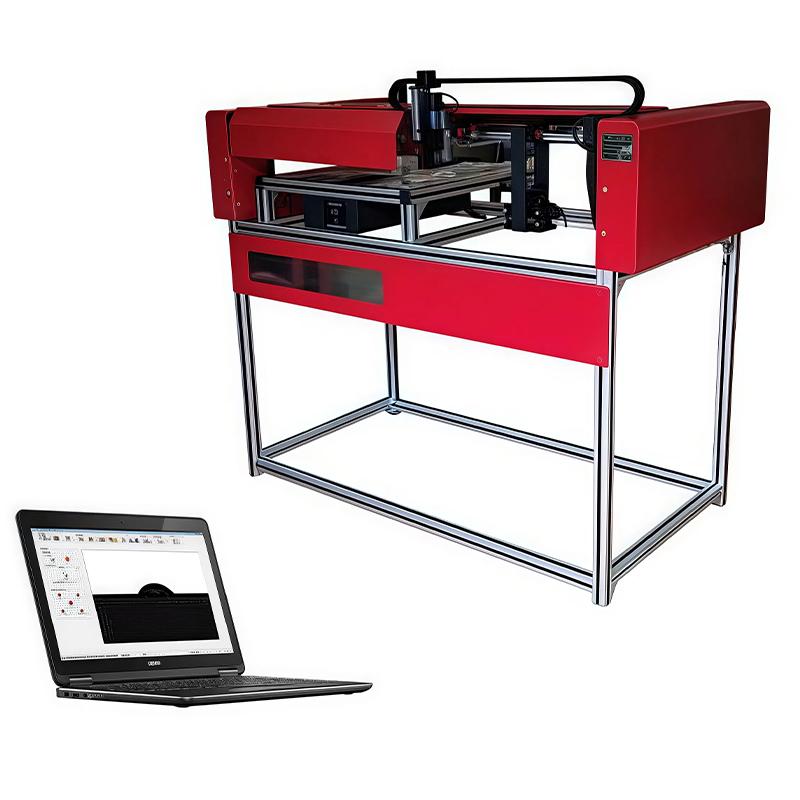

7. The instrument adopts USB port, easy to install and easy to use, suitable for JY-82 video test system of WINDOWS 64-bit Operating system
8. Powerful database management capabilities make it easy to save, query, and export data
9. All measured data can be exported as WORD documents and BMP standard format picture files
10. Can test any size sample, sheet or profile sample can be measured, super large size requires special customization
11. Solid surface free energy estimation models can be derived and applied to polar, non-polar, low-energy, and high-energy solid surface analysis
Principle
The instrument uses the static droplet method to measure the contact angle, and automatically tests the left corner, right corner and average angle of the droplet in real time through the Opencv graphic profile analysis software. It provides real-time test Linear dispersion and test data Excle list, and has image saving function. At the same time, the hanging drop method is used to measure interfacial tension and CMC, and the interfacial tension value of the test liquid ranges from 0.001mN/m to 1000mN/m.
Applications
Determination and study of wettability between nanomaterials and different active agents; adhesion between inks, metals, and paper in the printing industry; study on the degree of adhesion between adhesives and solids; detection of the degree of wetting of aircraft substrates by rain and fog in the air of the aerospace industry; determination of the contact angle between projectiles and rain and fog in the air in military science; measurement of the forward and backward angles of injecting additives and solids in crude oil during oil extraction; detection of flux adhesion to metals during metal welding; Determination of hydrophilic angle of aluminum foil; Determination of hydrophilic angle of Eletroplating film and various liquid crystal screens
Standards
SY/T5153-2007、ASTM D 724、ASTM D5946-2004、ISO15989、IEC6207
Steps
1. Install the instrument and connect the USB port
2. Start WINDOWS 64-bit Operating system JY-82 video test system
3. Place the specimen on the test platform
4. Move the titration system and camera system to the test point via the slide
5. Set the time to capture the image or select the full video recording.
6. Automatic Basis Weight Drops for Testing
7. The system automatically analyzes the droplet profile and calculates the contact angle
8. View real-time test Linear dispersion and data
9. Save images and test data
10. Export data to WORD document or BMP image format
Notice
• The instrument is suitable for WINDOWS 64-bit Operating system
• Super large size samples require special customization
• Make sure Illuminants are properly adjusted before testing to ensure clear images
• Pay attention to the accuracy control of 0.1ul when dripping
• Test accuracy by calibrating instruments regularly
• Select the appropriate format when exporting the data to facilitate subsequent processing
• Use the corresponding fixture to fix the profile sample
