Overview

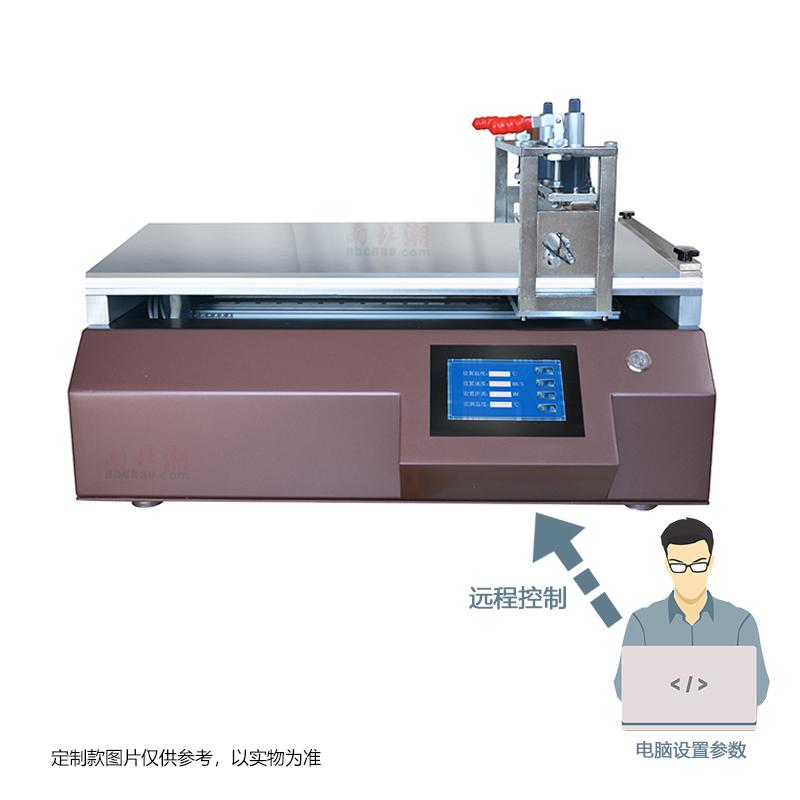

TBJ-B4-DJ10 Automatic Film Applicator is a small Lab Film Applicator for China experiments. It adopts imported accessories and is cheap. It is favored by multinational R & D institutions, universities and scientific research institutions at home and abroad. Spreader coating effect is guaranteed by controlling speed and stable pressure to ensure uniformity and smoothness. The intelligent program-controlled Coater comes standard with 1 imported bar, supports two coating methods of bar and drawdown blade, application width 300mm, heating temperature RT +~ 180 ℃, suitable for hot-melt adhesive, glue and other films.
Features
1. Using imported accessories, the price is good and cheap; 2. Support bar and drawdown blade two coating methods; 3. Application width 300mm, heating temperature RT +~ 180 ℃; 4. Intelligent program control, support computer remote setting film speed, length and temperature; 5. Optional accessories are rich, such as leakage tank, substrate fixing fixture, etc.; 6. Customized functions include jet system device, UV solid inclusion device, automatic inking system; 7. Spreader accuracy, meyer rod coating accuracy +/- 0.001mm, Blade Coating accuracy +/- 0.003mm; 8. Wide coating speed range, 2~ 180mm/s; 9. Spreader thickness range, bar Spreader 1~ 571.5μm, Blade Coating 0.2~ 10mm; 10. Temperature Uniformity +/- 3 ℃, to ensure stable heating.
Principle
Automatic Film Applicator achieves uniform Spreader by controlling the speed of the Spreader and applying a steady pressure. The intelligent programmable system allows remote setting of parameters including film speed, length and temperature to ensure the accuracy and Repeatability of the Spreader process. Two coating methods, bar and drawdown blade, can be selected according to demand, and the heating system maintains the set temperature to ensure the film mass.
Applications
Hot-melt adhesive, glue and other films
Steps
1. Prepare the Spreader substrate and required accessories; 2. Select the bar or drawdown blade mode according to the needs of the Spreader; 3. Remotely set the film speed, application length and film temperature through the control panel or computer; 4. Start the equipment for Spreader operation; 5. Monitor the Spreader process to ensure stable parameters; 6. Turn off the equipment after the Spreader is completed, clean and maintain.
Notice
• Check whether the power supply and accessories of the equipment are normal before operation; • Make sure that the parameters of the Spreader are within the specifications of the equipment; • The heating temperature should not exceed 180 ° C to avoid overheating damage; • Pay attention to accuracy control when using the bar or drawdown blade; • Regularly clean the coating table and accessories to prevent residues from affecting the Spreader effect; • Optional Accessories such as liquid leakage tank, substrate fixing fixture, etc. need to be installed correctly; • Customized functions such as jet system devices need to be operated by professionals; • Device weight 65KG, pay attention to safety when handling.
