Overview

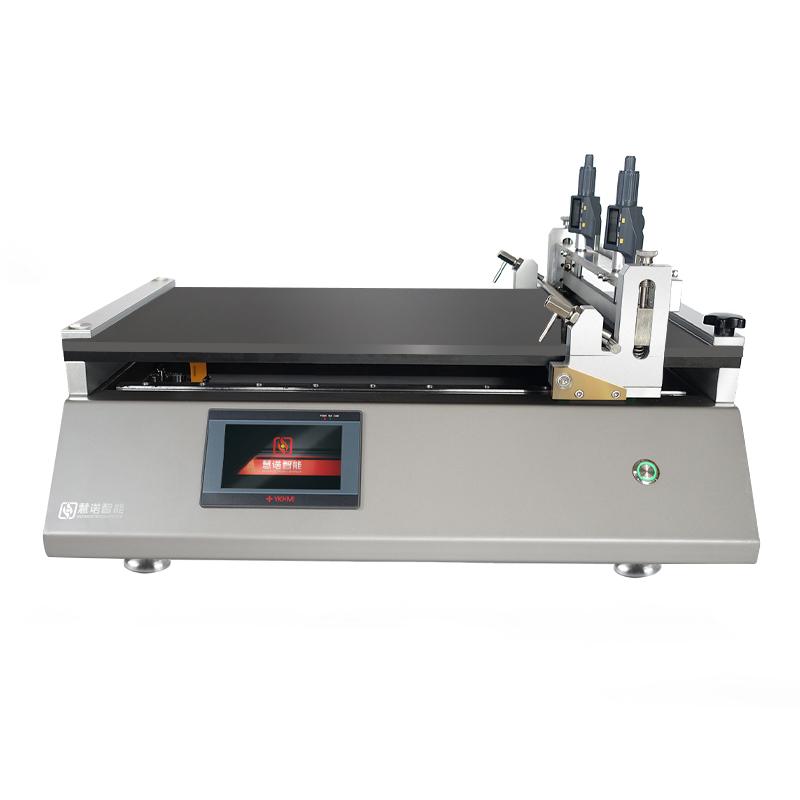

Automatic Film Applicator is a device for intermediate coating film in the laboratory, replacing manual film and automatically filming to improve the accuracy and efficiency of film. This Film Applicator is a bar drawdown blade Coater, using bar and drawdown blade two coating methods, external Vacuum chuck pump, innovative bar Installation method and clamshell drawdown blade head greatly improve Spreader efficiency, easy to clean, with speed control and application length adjustment function, suitable for laboratory High Accuracy automatic film, Moulding proofing in university research institutes, New material, lithium battery, glue, Resin and other laboratories.
Features
1. Surface hard treatment Aluminum alloy countertop, Hardness and wear resistance, Smoothness of countertop is detected by imported High Accuracy instrument
2. Big brand differential regulator, high film thickness control accuracy
3. Clamped Blade Coating Head for Easy Cleaning
4. High Accuracy film applicator, original imported bar film uniform accuracy
5. Touchscreen control panel, easy to operate
6. Free adjustment of application length and Spreader speed
7. With Vacuum chuck function, suitable for thin film and other soft substrate Spreader
Principle
The Working Principle of Experimental Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and Spreader parameters.
Applications
Coatings, inks, paints, Stocks, Lithium batteries, Pressure sensitive adhesives, Resins, glues, polymer materials, pharmaceuticals and other film samples
Steps
1. Prepare the substrate and samples
2. Set Spreader parameters (application length, Spreader speed)
3. Select coating method (bar or drawdown blade)
4. Start the device for automatic filming
5. Clean the Spreader head after finishing the Spreader
Notice
• Make sure the power supply of the device is connected correctly before use
• Check whether the substrate is firmly fixed before Spreader
• Select the appropriate coating method and parameters according to the sample characteristics
• Clean the Spreader head in time after the Spreader is completed to avoid sample residue
• Pay attention to safety during operation and avoid contact with moving parts
