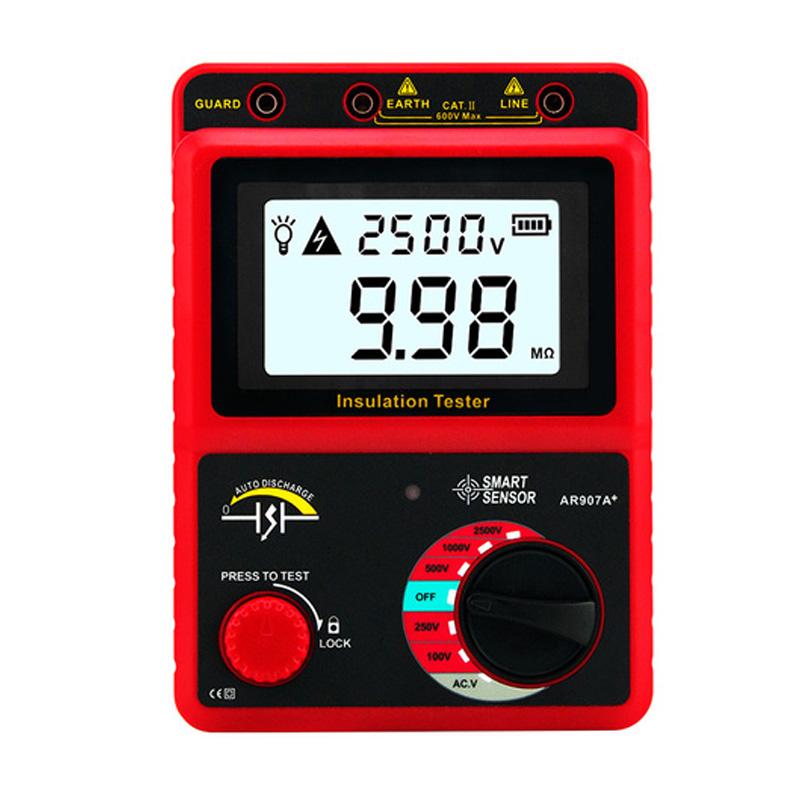

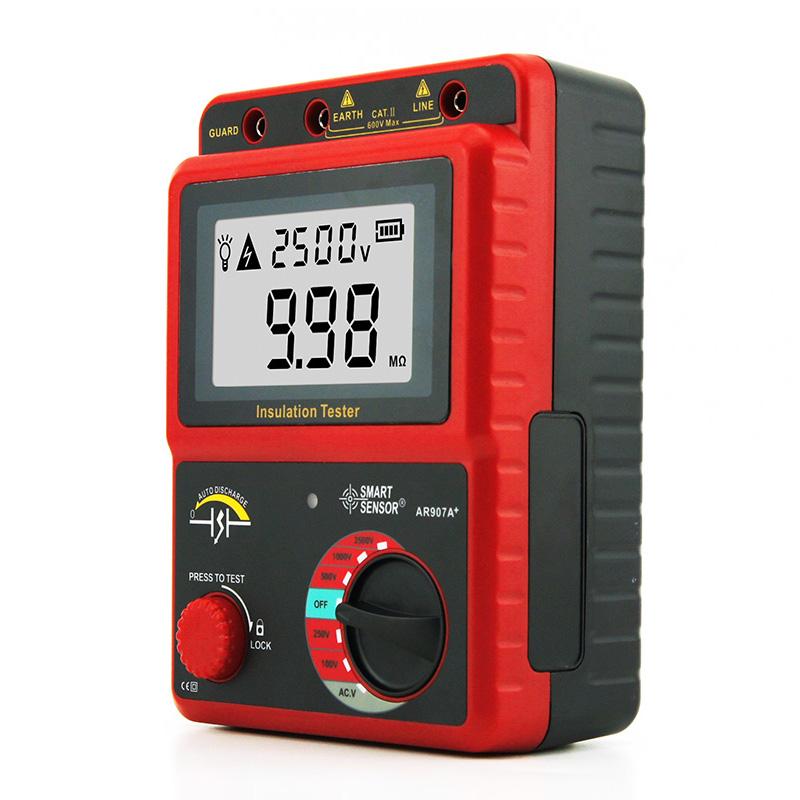

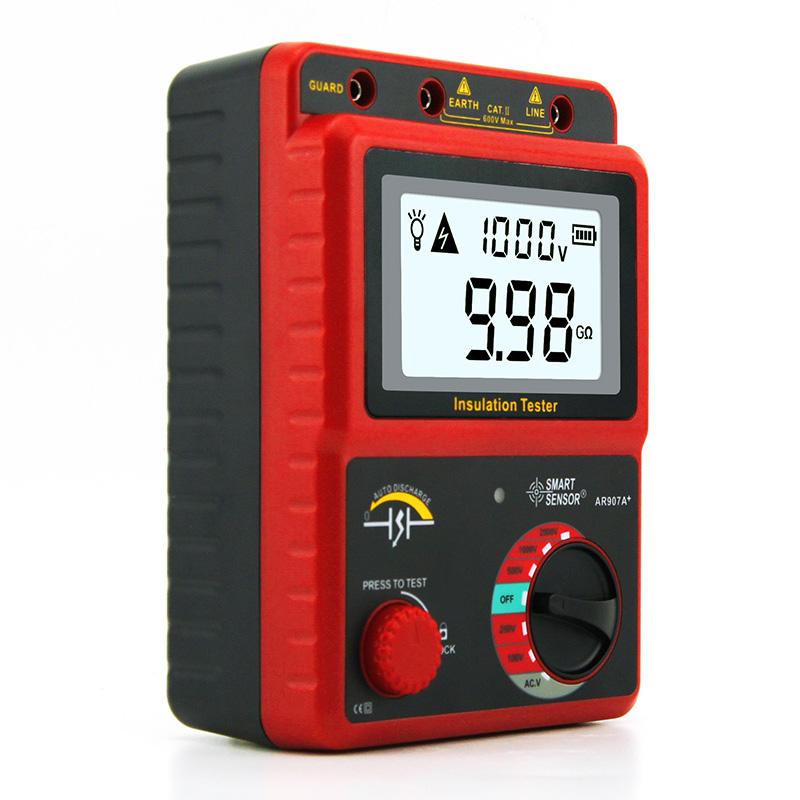

SMART SENSOR AR907A digital megohmMeter, high resistance Meter, insulation resistance test 0.0MΩ~ 49.9GΩ

Name: SMART SENSOR AR907A digital megohmMeter, high resistance Meter, insulation resistance test 0.0MΩ~ 49.9GΩ
Brand: SMART SENSOR
SKU: NB045899
Price: 118.0 USD
Availability: InStock

$ 118.00Ex works

With 0.0MΩ~ 49.9GΩ wide range insulation resistance testing capability, support 100V to 2500V multi-gear Rated voltage, Sampling rate 0.5~ 10 times/second, buzzer alarm function, portable design weighs only 404g.

Model

AR907A

Get Quote

Category : Multimeter

Brand : SMART SENSOR

SKU : NB045899

Service :The delivery and service By NBCLab.Com

Overview

The AR907A digital megohmmeter is an insulation resistance tester under the brand SMART SENSOR, which is widely used for the measurement of insulation resistance in generators, motors, power transformers, wiring, appliances and other electrical installations. It is often used in routine maintenance procedures to monitor changes in insulation resistance to warn of potential failures and requires regular calibration to ensure meter accuracy.

Features

1. Rated voltage selection: 100V/250V/500V/1000V/2500V 2. Wide range insulation resistance test: 0.0MΩ~ 49.9GΩ 3. High Accuracy measurement: Insulation resistance Precision +/- 5% reading +/- 5 words 4. AC voltage test function: range 30~ 600V (50/60Hz) 5. Portable design: Net weight 404g, size 125 * 175 * 69mm 6. Buzzer alarm function 7. Battery power supply: use 6 * 1.5V AA battery

Principle

Rated voltage is applied to the device to measure the leakage current flowing through the insulating material, and the insulation resistance value is calculated according to Ohm's law. By monitoring the change trend of the insulation resistance, the deterioration of the insulation performance of electrical equipment can be judged.

Applications

Electrical power industry, industrial production, construction engineering, telecommunications equipment, railway systems, aerospace, scientific laboratories

Rated Voltage
100V/250V/500V/1000V/2500V
open circuit Voltage
Rated Voltage 100%~ 120%
Insulation resistance test Range
0.0MΩ~49.9GΩ
short circuit
Approximately 1.3 mA
Insulation Resistance Precision
+/- 5% reading +/- 5 words
AC Voltage test Range
30~600V (50/60Hz)
AC Voltage resolution
1V
Accuracy
±2%rdg ±3rdg
Sampling rate
0.5~ 10 times/second
Operating environment
0℃~40℃，≤85% RH
Storage environment
-20℃~60℃，≤90% RH
Buzzer alarm
Yes.
power supply
6 * 1.5V AA battery
Net weight of product
404g
Product Size
125*175*69mm
Encasement method
Encasement of color box
