Overview

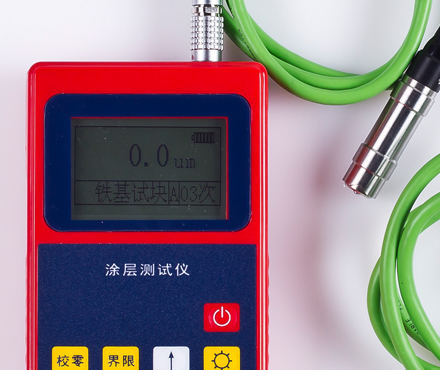

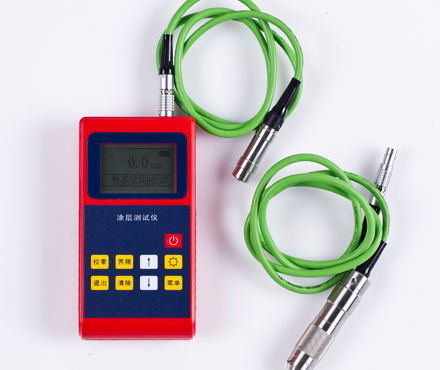

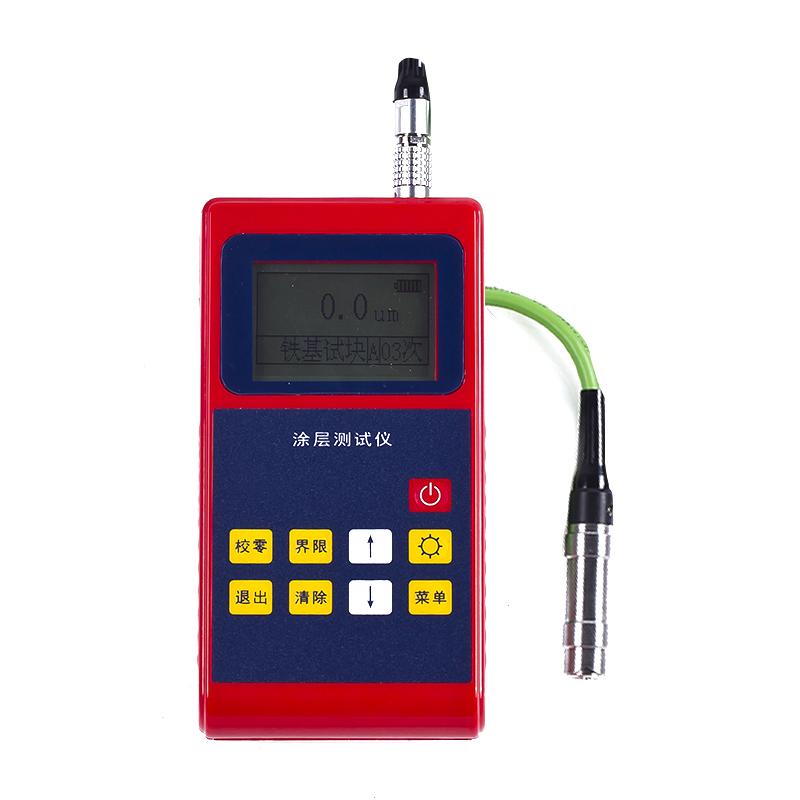

LEEB leeb222 (F1) magnetic Induction Coating thickness gauge is a Probe host split Coating thickness gauge equipped with magnetic F1 Probe, suitable for the measurement of nonmagnetic Coating thickness on magnetic metal substrates. Measurement range is 0~ 1250 microns, resolution is 0.1 μm.
Features
1. Data deletion function
2. Boundaries can be set
3. Full Chinese menu
4. Measurement modes
5. Two ways of working
6. Power undervoltage indication
7. Store 500 Measured values
8. Manual and automatic shutdown methods
9. Measured value outside the limit can automatically alarm
Principle
The product uses magnetic Induction principle for measurement, suitable for nonmagnetic Coating thickness detection on magnetic metal substrates.
Applications
Eletroplating, anti-corrosion, aerospace, aviation, chemical industry, automobile, shipbuilding, light industry, commodity inspection
Steps
1. Power on and select Measurement mode
2. Set measurement limits (optional)
3. Probe placed on the surface of the coating to be tested for measurement
4. View measurement results and store data (optional)
5. Manual or automatic shutdown
Notice
• Measurement range limited to 0~ 1250μm
• Minimum measurement surface is φ 7mm
• Minimum radius of curvature: convex 1.5mm, concave 9mm
• The thinnest substrate is 0.5mm.
• Operating temperature range 0~ 40 ℃
• relative humidity range of 20~ 90% RH
• Powered by 2 * AAA alkaline batteries
• Pay attention to the power undervoltage indication
