Overview

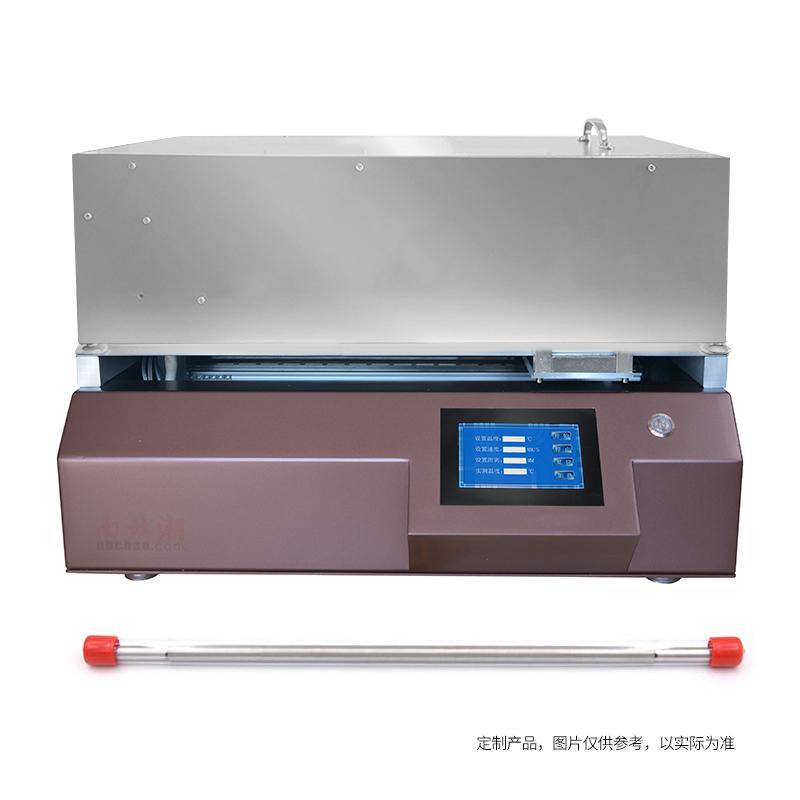

The TBJ-A bar Lab Film Applicator is a newly upgraded product. It is carefully designed for Spreader accurate wet-film on different substrates, and can repeatedly and continuously prepare smooth, flat and flawless test samples. After the equipment was put into the market, it was favored by many familiar companies, R & D institutions, Universities & colleges.
Features
1. Wide coating speed range: 2~ 200mm/s
2. Heating mode Advanced: Upper infrared heating, Temperature range RT +~ 180 ℃, accuracy +/- 3 ℃
3. Spreader accuracy: meyer rod coating accuracy +/- 0.001mm
4. Spreader thickness range: 1~ 571.5μm (determined according to bar model)
5. Work surface size: 400mmx300mm (Miscellaneous size can be customized)
6. Optional accessories are rich: leakage tank, substrate fixing fixture, fine-tuning horizontal height support foot device, etc
7. Customizable functions: automatic lame plating device, UV curing device, automatic inking system, etc
Principle
The equipment uses the bar coating method, by precisely controlling the coating speed to move in the range of 2~ 200mm/s, with the upper infrared heating system (Temperature range RT +~ 180 ℃), Spreader the precise thickness of the wet-film on the surface of different substrates. Spreader thickness is determined by the bar model, and the accuracy can reach +/- 0.001mm.
Applications
Corporate R & D, Research Institutions, Universities & colleges Laboratories
