Overview

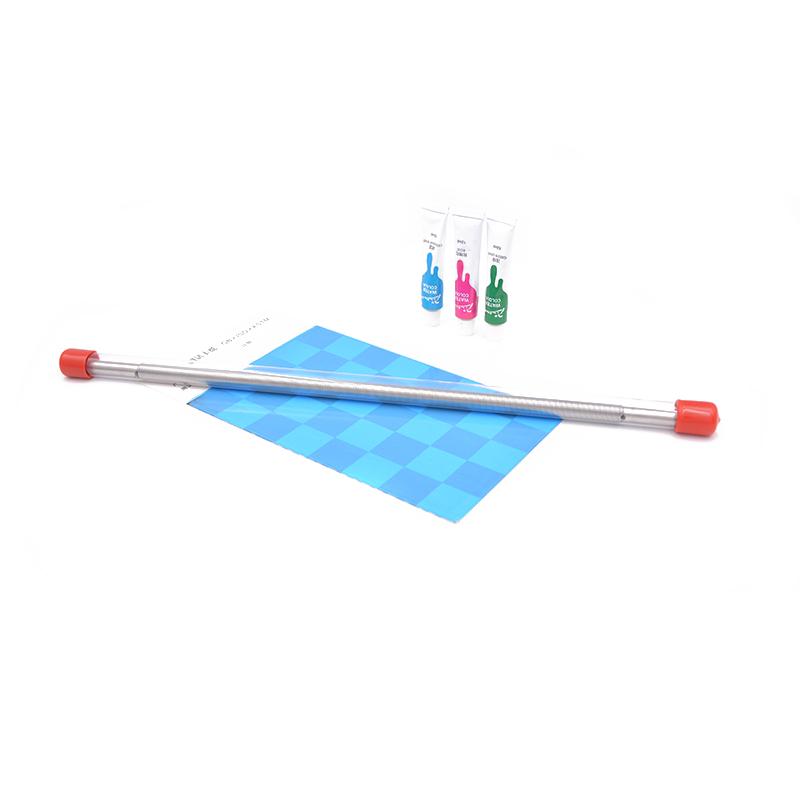

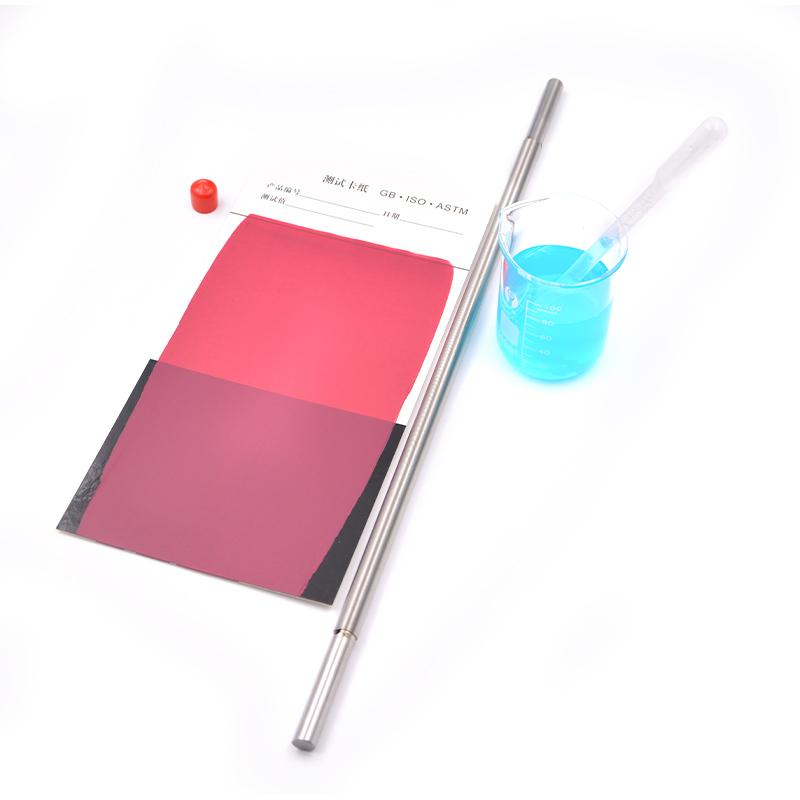

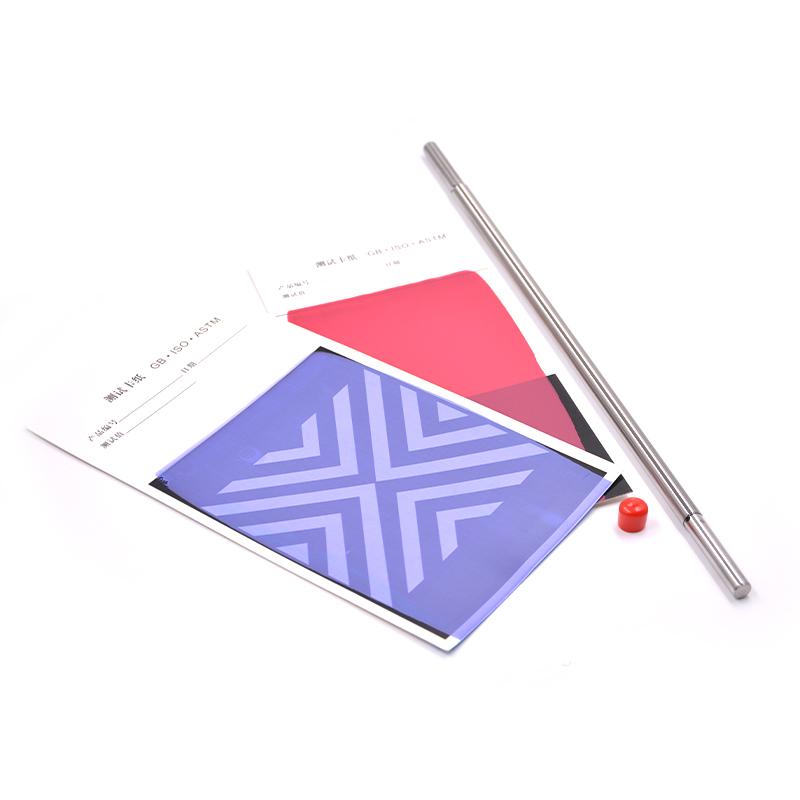

RDS 28 #1/2 "Mayer Rods is a popular model in the industry, which can Spreader 64.0 micron wet film thickness. The product has been used in China for 30 years and has been well received by users in Resin, Pigment, Auxiliaries, Architectural coatings, powder coatings, printing, chemical chemistry, Aluminum profile and other industries.
Features
1.Accurate wet film thickness of 64.0 microns
2. Adopt wire-wound production process
3. Material is stainless steel, with strong durability
4. Application width up to 300mm, high efficiency
5. Total length 400mm, hand width 50 + 50mm, comfortable operation
Principle

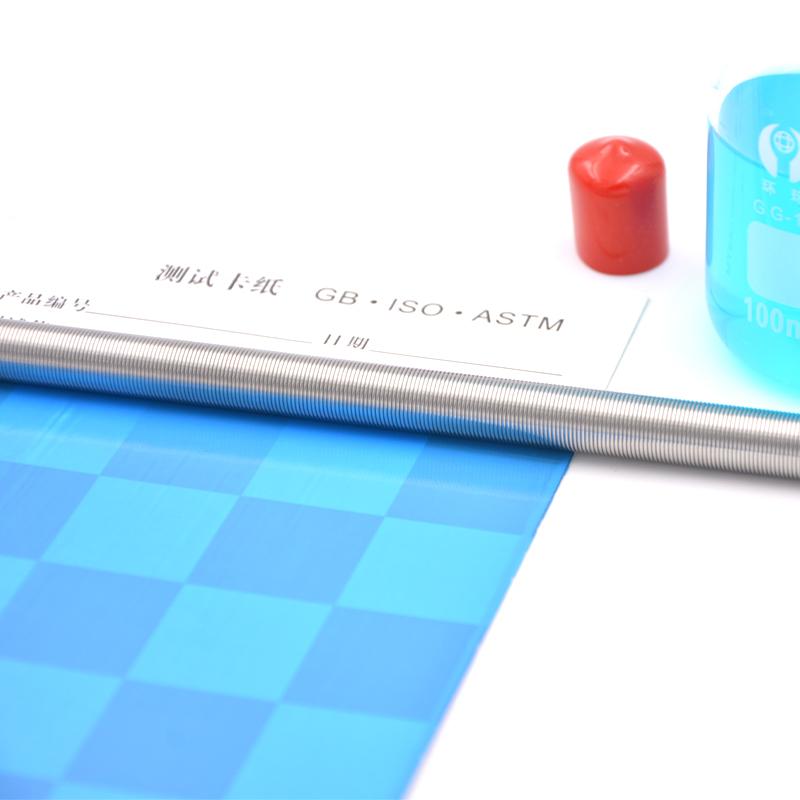

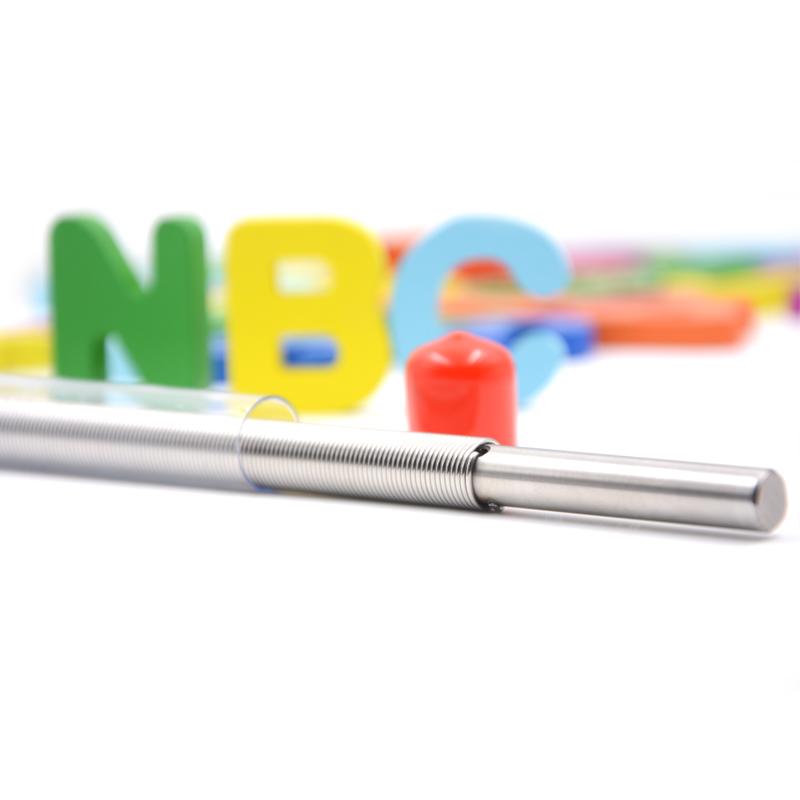

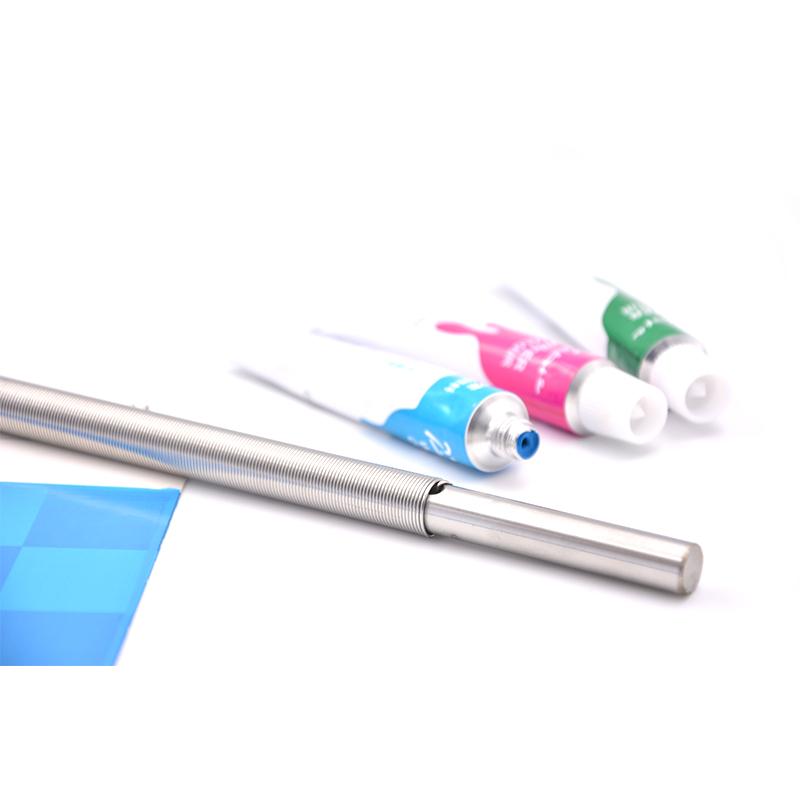

The wire (0.71mm diameter) wound on the stainless steel rod rolls on the surface of the substrate to form a uniform wet-film coating. The wire-wound design ensures that the thickness of the Spreader is stable at 64.0 microns.
Applications
Resin, Pigment, Auxiliary, Architectural coatings, Powder coatings, Printing, Chemical Chemistry, Aluminum profile
Steps
1. Spreader substrate
2. Coating at one end of substrate
3. Handheld coating applicator at both ends, with uniform pressure Spreader
4. Spreader process with 300mm width
5. Clean maintenance coating applicator
Notice
• Make sure the coating applicator is clean and free of residue before use
• Spreader to maintain uniform pressure to avoid uneven thickness
• Avoid long-term contact with corrosive substances
• Prevent bumping and deformation during storage
• Regularly check the wire-wound status
