Overview

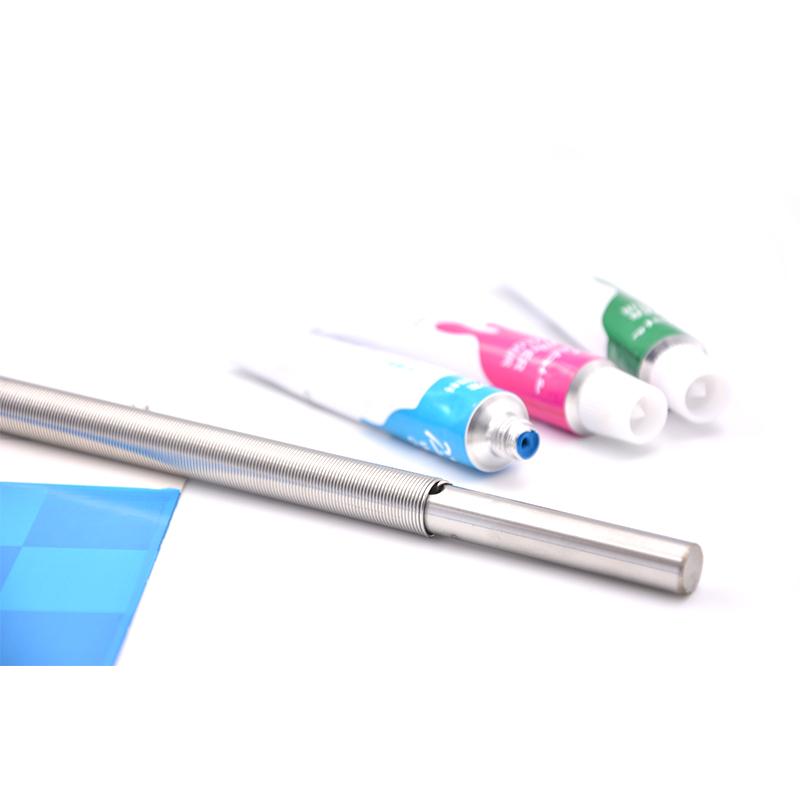

RDS 32 #1/2 "Mayer Rods is a High Accuracy film tool with a wet film thickness of 73.2 microns and a film accuracy scale of 0.1 microns, which has a high level of Accuracy in the industry. Made of stainless steel, it is not easy to break wires, abrasion resistance and rust resistance. The normal service cycle can reach more than 6 months, and the service life is longer when well maintained.
Features
1. The film thickness is 73.2 microns, the accuracy scale is 0.1 microns, and the industry's leading accuracy
2. Stainless steel material, abrasion resistance, rust resistance, not easy to break wire
3. The normal service life is more than 6 months, and good maintenance can prolong the service life
4. Wire-wound production process to ensure film uniformity
Principle

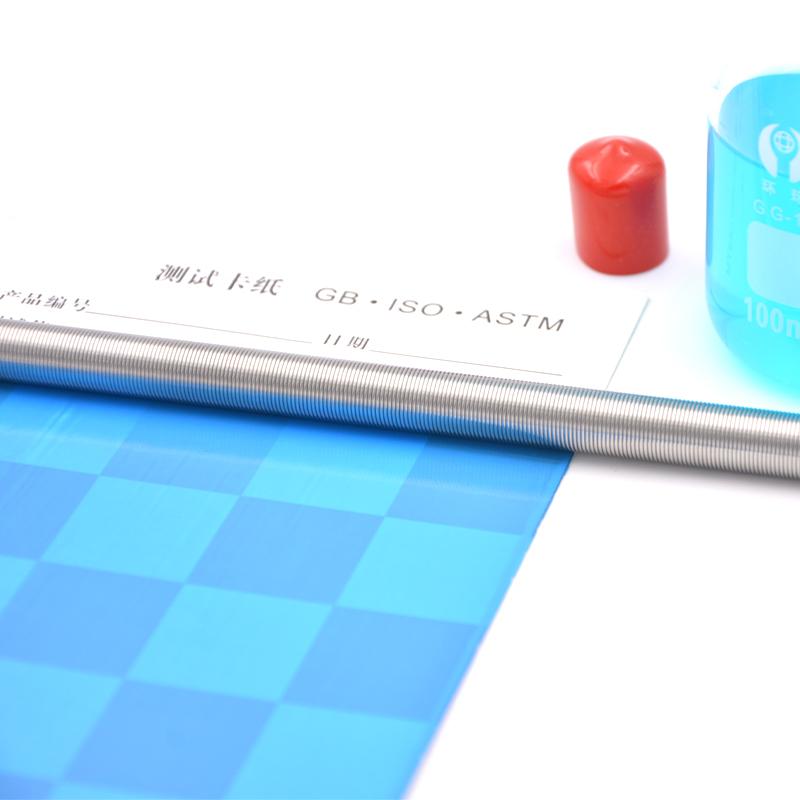

RDS Mayer Rods uses a wire-wound design to form a uniform film gap on the surface of the rod body through stainless steel wire. When the coating applicator moves on the surface of the substrate, the Coating forms a wet-film coating of precise thickness through the wire gap.
Specifications
Production process: wire-wound, wet film thickness: 73.2 μm, diameter: 12.7mm, total length: 400mm, application width: 300mm, hand width: 50 + 50mm, material: stainless steel, wire diameter: 0.81mm
