RDS 5 #1/2\ "Applicator Rod wire-wound stainless steel Mayer Rods wet film thickness 11.4μm

$ 184.00Ex works

Wire-wound structure ensures Spreader uniformity, wet film thickness 11.4μm, diaMeter 12.7mm, stainless steel material is durable and easy to clean, suitable for different Coating Weight requirements.

Model

Get Quote

Category : Coating Rod

Brand : RDS

SKU : NB004630

Service :The delivery and service By NBCLab.Com

Overview

American RDS No. 5 Mayer Rods (model: 5 #1/2 ") is a professional tool for laboratory prepative precision film, also known as coating rod or coating bar. The product is made of high-grade stainless steel and is available in forming and wire-wound processes. Wire-wound coating rods are also available in 1/4, 3/8 and 1/2 inch diameter sizes.

Features

1. Made of high-grade stainless steel, with strong durability 2. Provide two process options: molding and wire-wound 3. Wire-wound coating rod available in 1/4, 3/8 and 1/2 inch diameter specifications 4. The wet film thickness is precisely controlled at 11.4μm 5. Total length 400mm, application width 300mm, easy to operate

Principle

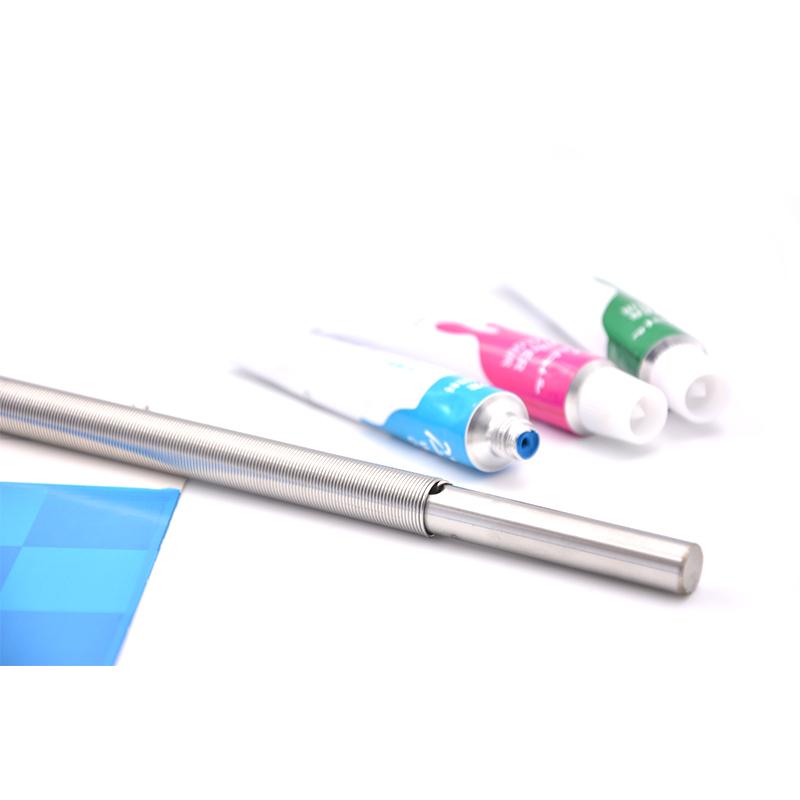

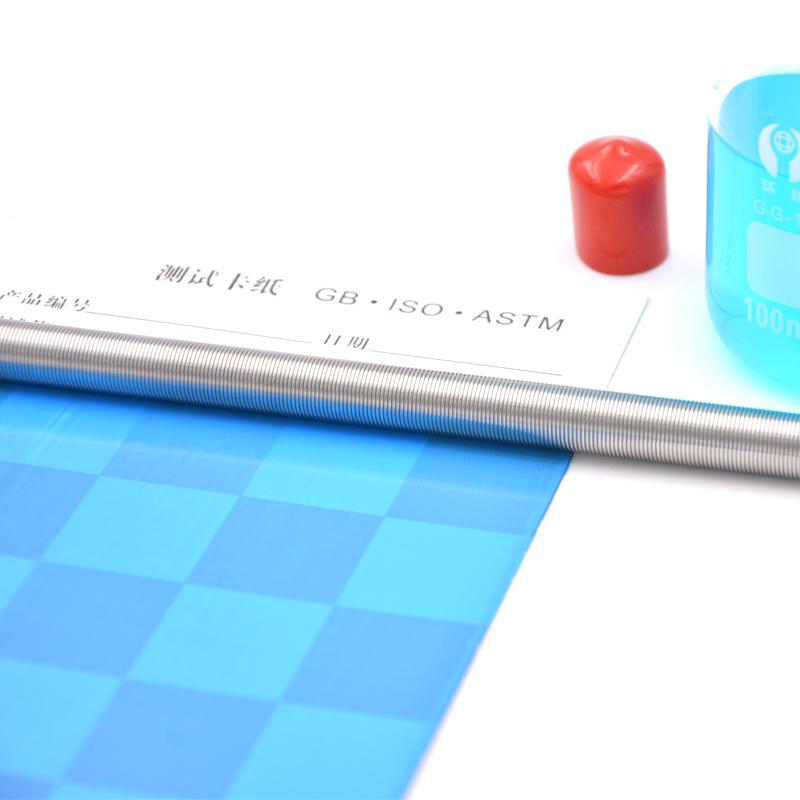

Mayer Rods form grooves by wrapping wires around the rod body. During the Spreader process, the Coating fills the grooves and forms a uniform wet-film coating on the surface of the substrate. Coating rods of different diameters have the same wet film thickness, but the Coating Weight will vary depending on the groove shape and the diameter of the main rod.

Specifications

Production process: wire-wound, wet film thickness: 11.4μm, diameter: 12.7mm, total length: 400mm, application width: 300mm, hand width: 50 + 50mm, material: stainless steel, wire diameter: 0.13mm

Production process
wire-wound
wet film thickness
11.4μm
rod diameter
12.7mm
Total length
400mm
application width
300mm
Grip Width
50+50mm
material
stainless steel
wire diameter
0.13mm

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
