Defelsko PosiTector 6000 NS3 Coating thickness Gauge zinc layer thickness measurement instrument eddy Current measurement 0-1500μm

Name: Defelsko PosiTector 6000 NS3 Coating thickness Gauge zinc layer thickness measurement instrument eddy Current measurement 0-1500μm
Brand: Defelsko
SKU: NB000465
Price: 1602.0 USD
Availability: InStock

$ 1602.00Ex works

Measurement range of 0-1500 μm using eddy Current principle, with high contrast ratio color display and USB/Bluetooth data transmission, supports efficient measurement of more than 180 readings per minute.

Model

Get Quote

Category : Coating Thickness Gauge

Brand : Defelsko

SKU : NB000465

Service :The delivery and service By NBCLab.Com

Overview

The Defelsko PosiTector 6000 NS3 zinc layer thickness measurement instrument is an external Probe type eddy Current platings thickness measurement instrument for the measurement of the thickness of nonconductive coatings on non-ferrous metal surfaces. The instrument is an advanced Coating thickness gauge with data saving function, Portable can be easily operated with one hand, and is designed with a good user experience menu navigation, easy to operate.

Features

1. High contrast ratio reversible color LCD Display screen 2. Can store up to 100,000 readings, divided into up to 1000 combined subgroups 3. Transfer data to a computer via USB or a phone or printer via Bluetooth wireless technology 4. Can store multiple calibrated data to facilitate measurement of different substrates 5. One-handed operation, ready-to-use - no need to calibrate most tests 6. Protection Rating IP65 7. Measurement speed 180 + readings per minute

Principle

The eddy Current Measurement principle is used to measure the thickness of nonconductive coatings on nonferrous metal surfaces.

Applications

Non-ferrous metal substrate, nonconductive coating environment

Standards

ISO 2178/2360/2808、PrEN ISO 19840、ASTM B499/D1186/D1400/D7091/E376/G12、BS3900-C5、SSPC-PA2

Steps

1. One-handed operation of the instrument 2. Set up through menu navigation 3. Carry out measurements 4. Transfer data via USB or Bluetooth 5. Data analysis with PosiSoft software suite

Notice

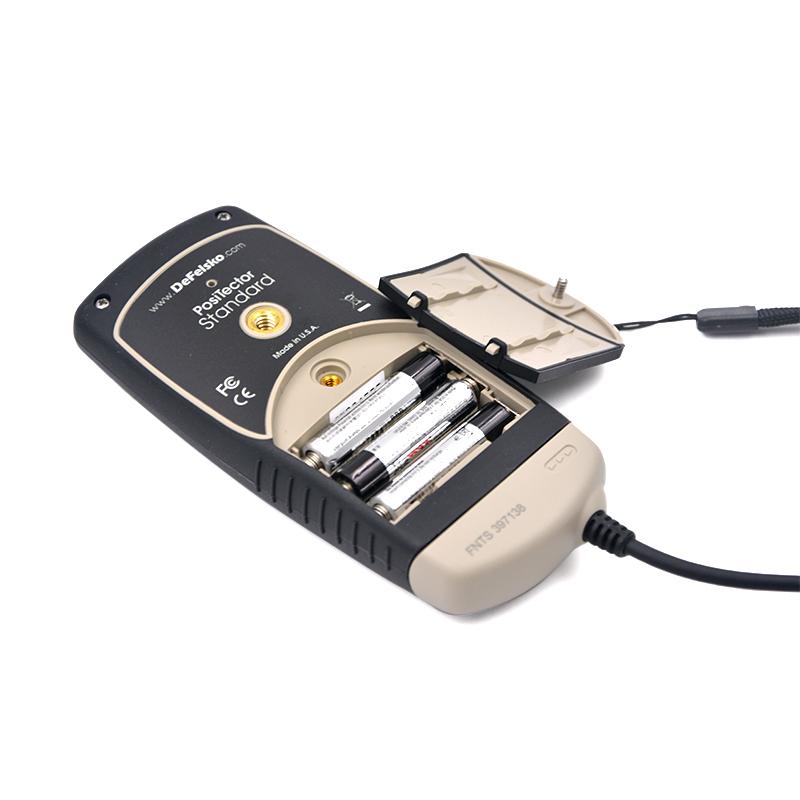

• Suitable for non-ferrous metal substrates and nonconductive coating environments Powered by 3 * AAA alkaline batteries • weight 140g (without battery) • Dimension 137 * 61 * 28mm • Equipped with NS3 Probe (Universal)

Data storage
250,000 readings, 100 screen image captures supported
limit alarm
Audible and visual alarms
Measurement speed
60 + readings per minute; enhanced FAST mode - 90 + readings per minute
display screen
2.8 inch Color Touchscreen
data software
PosiSoft Software Suite
Protection Rating
IP65
power supply
3 AAA batteries
Interface
USB, Bluetooth communication
testing environment
Non-ferrous metal substrate (such as copper and aluminum) nonconductive coating
Featured features
Real-time rendering of measurement data, batch processing mode, three scanning modes
Dimension
127 x 66 x 25.4mm
weight
137G (without battery)
Meet the standard
ISO 2178/2360/2808, PrEN ISO 19840, ASTM B499/D1186/D1400/D7091/E376/G12, BS3900-C5, SSPC-PA2 and others
Measurement Range
0~1500 um
margin of error
+ (1 um + 1%) 0~50 um; + (2 um + 1%) > 50 um

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
