Overview

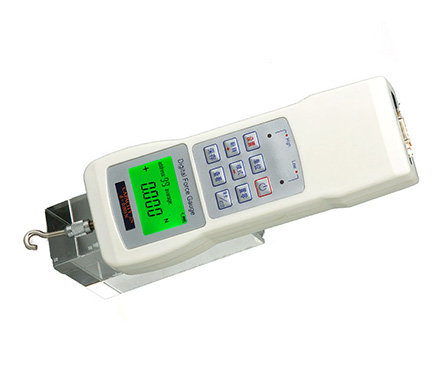

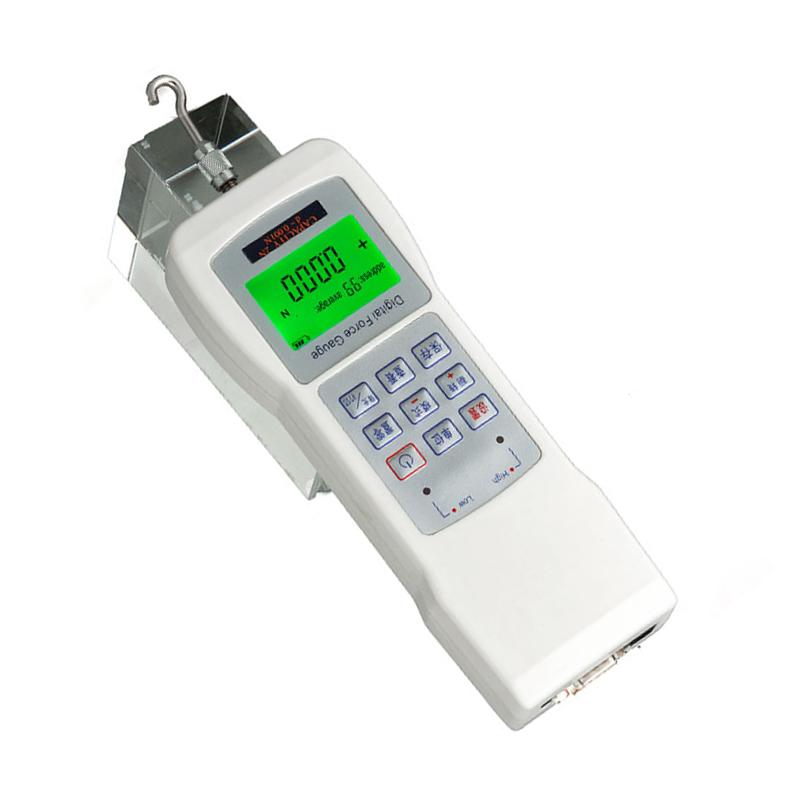

The HBO HG-10 Digital Display Force Gauge is a Portable Force Gauge with a load value of 10N and a Graduation of 0.005N. It features High Accuracy, High Resolution, High Stability, and displays the test direction through Pull +/Thrust -, and has 99 test data storage functions built in for easy data management and analysis.
Features
1. High Accuracy High resolution, High Stability, sampling speed up to 120HZ
2. Special Instrument Toolbox with EVA Shockproof Encasement, Easy to Transport, Save and Carry
3. Segment LCD display, green backlight screen
4. Six units N, KN, Kgf, gf, lbf, tf are freely interchangeable
5. Test direction display (tension +, thrust -)
6. Three test modes: real-time force tracking mode, peak holding mode, and first peak mode
7. Can set the upper and lower limit comparison value to judge whether the data is qualified or not, with sound alarm and level signal output
8. Store 99 sets of test data and automatically calculate the average value of the stored data, MAX Maximum and MIN Minimum.
9. Peak hold time can be set (can be set from 0 to 99 seconds)
10. Gravity acceleration value can be set
11. Automatic shutdown without operation can be set (time can be set freely from 0 to 99 minutes)
12. Limit protection: with range sound alarm and mechanical two-level limit protection
13. Smart Charging, Safe Charging, Extend Battery life
14. With the company's electric testing device, it can realize various new practical functions such as stop or reset when the tested product is damaged, stop or reset when it reaches the preset force value, fatigue test, etc
15. Host computer software: Chinese WINDOWS interface
16. The test results have a variety of coordinate Linear dispersion display: real-time force value - time, peak force value - number of times, first peak - number of times
17. Qualification judgment: In addition to automatically obtaining the test results, the qualified judgment and batch inspection pass rate can be made according to the qualified range of the preset Standard value
18. Automatic storage: Test data and Linear dispersion are automatically stored in the computer, and the number of storage is unlimited
19. Test data: The data obtained from the test can be queried and exported in excel format
20. Test report: Test report can be prepared in the format required by the user, form a report and print it
Principle
The HG-10 Digital Display Force Gauge detects push and pull forces through a built-in Sensor, converts the force values into electrical signals, and displays them on the segment LCD after ADC conversion. It supports a variety of test modes, including real-time force tracking, peak holding, and first peak mode. It also performs data qualification judgment by setting upper and lower comparison values, and outputs audible alarms and level signals.
Applications
Push-pull testing, quality control, product failure testing, fatigue testing, batch testing
Standards
Precision 0.5, Indication Error ≤ +/- 0.5%
Steps
1. Connect the power supply or use the built-in lithium battery
2. Select Measurement unit (N, KN, Kgf, gf, lbf, tf)
3. Set the test mode (real-time force tracking, peak hold, or first peak mode)
4. Set the upper and lower limit comparison value, peak holding time, gravitational acceleration value or automatic shutdown time without operation as needed
5. Perform a push-pull force test and observe the force reading and direction symbol of the display window

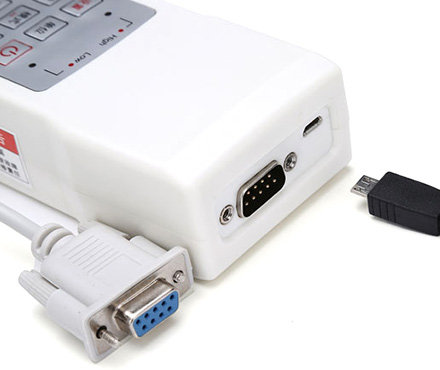

6. Data is automatically stored or exported via Communication interface
7. Data analysis, report generation and printing using PC software
Notice
- When the battery level shows very small, charge it in time to avoid automatic shutdown.
- Operating temperature range is 0~ 40 ℃, storage temperature is -20~ 70 ℃, relative humidity is 15%~ 80% RH
- Ensure that there is no vibration and corrosion medium around
- Charge with dedicated charger (AC Input: 220V/50HZ, DC Output: 5V/1A)
- Pay attention to the range sound alarm and mechanical limit protection to avoid overload use
