Overview

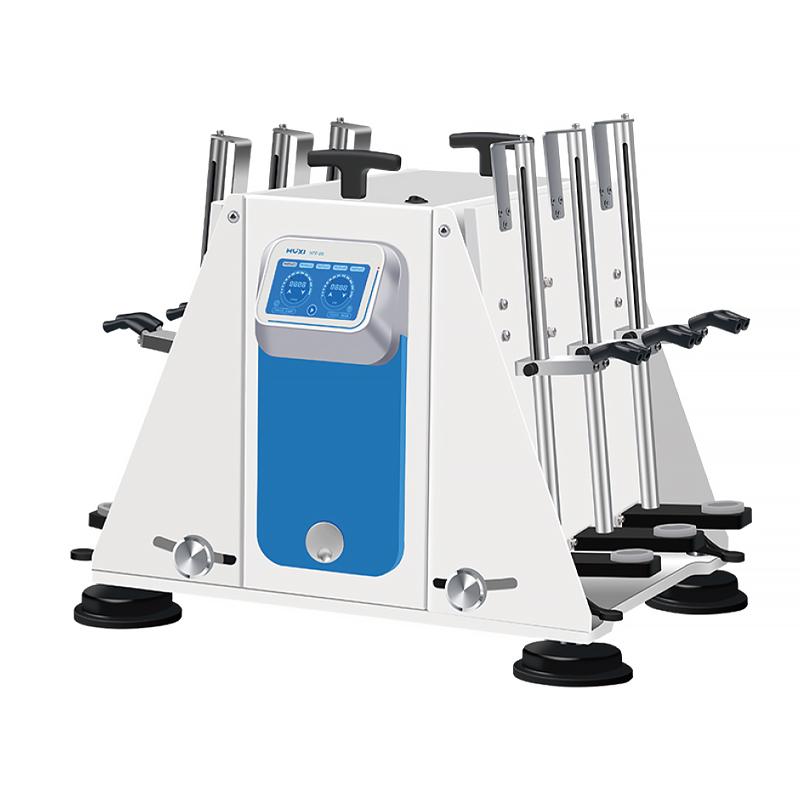

HTF-S6 separatoryfunnel Shaker is a product independently developed by HUXI brand. It has the characteristics of adjustable oscillation time, large vibration amplitude and fast speed. The sample holder can be used for separatoryfunnel of various specifications, and can process up to 6 samples at the same time, which can greatly improve work efficiency and reduce work intensity. Widely used in food inspection, chemical extraction, mixed extraction and other occasions.
Features
1. Small size, low noise, smooth and reliable operation.
2. Wide voltage design for a wider range of applications.
3. The sample bracket can slide freely, and the placement or sampling is simple and convenient;
4. Suitable for separatoryfunnel of different specifications, the range is 250ml~ 2L;
5. Humanized control, digital display timing function, greatly improving work efficiency.
6. LCD Touchscreen operation displays oscillation speed and running time, and the value is clear at a glance;
7. The oscillation speed is equipped with a stepless speed regulation function, and there is a buffer function when starting and changing the speed, which reduces the impact of the sample on the container.
Principle
HTF-S6 separatoryfunnel Shaker is driven by servo motor, with a swing amplitude of 40mm and a Speed range of 60~ 300rpm through vertical oscillation, to achieve uniform mixing and extraction of samples.
Applications
Food inspection, chemical extraction, mixed extraction, ester synthesis experiment, organic compound extraction, oil extraction from water, environment hormone extraction, dissolution experiment of heavy metals in soil, determination of pesticides and food additives in crops
Steps
1. Place the separatoryfunnel on the sample holder;
2. Set the oscillation speed and running time through the LCD Touchscreen;
3. Start the device and Shaker starts working.
4. After the timing ends, it will automatically stop and take out the sample.
Notice
• Permissible Ambient Temperature 5~ 40 ℃;
• Environmental humidity of 80%;
• Power supply voltage range is 200~ 240V, Frequency 50~ 60Hz;
• Make sure that the separatoryfunnel specification is within the range of 250ml~ 2L before use;
• Pay attention to the buffer function when starting and shifting to avoid sample Impact container.
