Overview

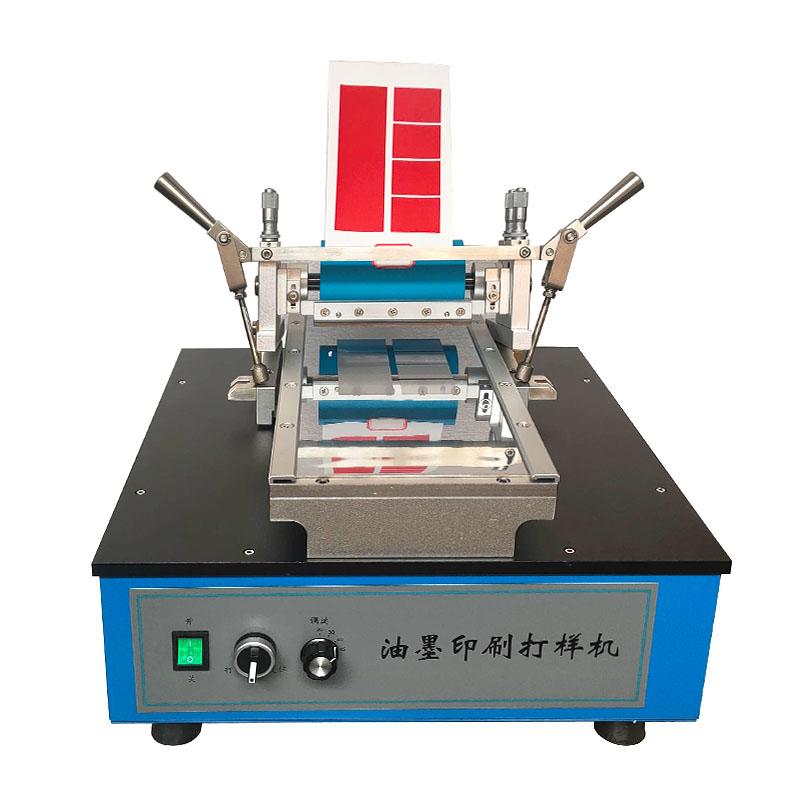

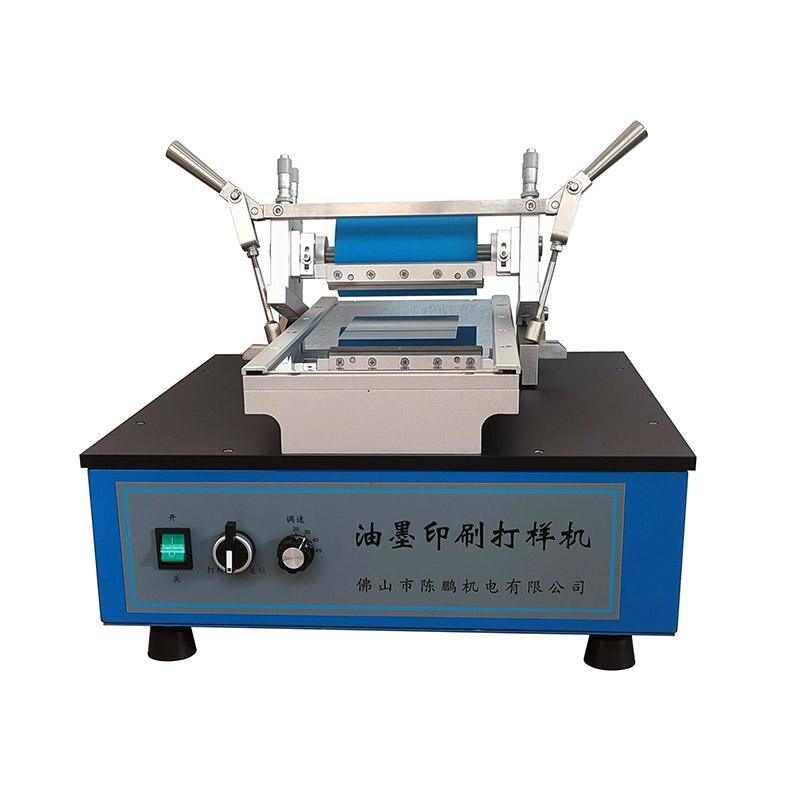

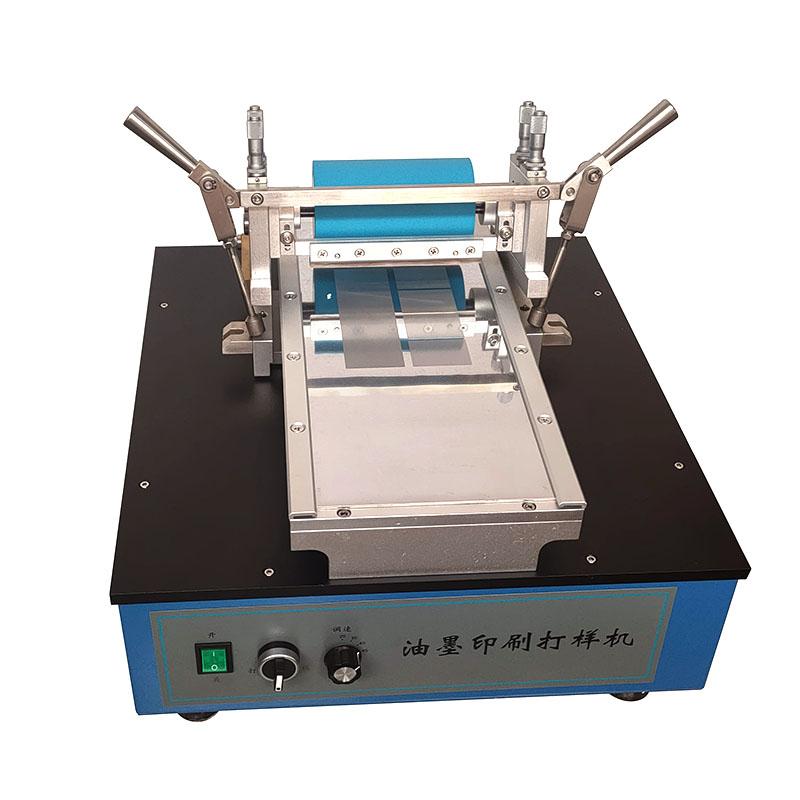

HuiNuo CP150 gravure plate Proofer is a printing verification equipment that can quickly produce Gravure ink printing proofs in a way close to actual printing under laboratory conditions. The machine adopts the direct printing method of flat engraving plate, which is suitable for fast proofing of flexible substrates such as Plastic film and paper. It is easy to operate and randomly provides 1 special Gravure Printing proofing plate.
Features
1. Gravure ink printing proofs can be quickly produced under laboratory conditions
2. Using flat engraving plate direct printing method
3. Suitable for various flexible substrate proofing
4. Easy to operate
5. Randomly provide 1 special Gravure Printing Proofing Edition
6. Proofing speed four gears optional (20/30/40/45m/min)
7. Available in four versions (A, B, C, D)
Principle
Gravure ink printing samples were prepared quickly under laboratory conditions in a way that is closer to the actual printing.
Applications
Preparation of laboratory printing proofs, inspection of inks printing suitability, research and development of inks products
Steps
1. Prepare flexible substrates (such as Plastic film, paper, etc.)
2. Select the appropriate proofing version (A, B, C, D)
3. Set the proofing speed (20/30/40/45m/min four gears optional)
4. Perform printing and proofing operations
5. Obtain printing proofs
Notice
• Power Supply 220V/50HZ
• Recommended sample size is 120 × 240mm
• Concave sample range is 95 × 149mm
• Random gravure plate is 150 lines/inch
• Note that the Dimension of the equipment is 500 × 425 × 350mm
• The weight of the whole machine is 26kg
