Overview

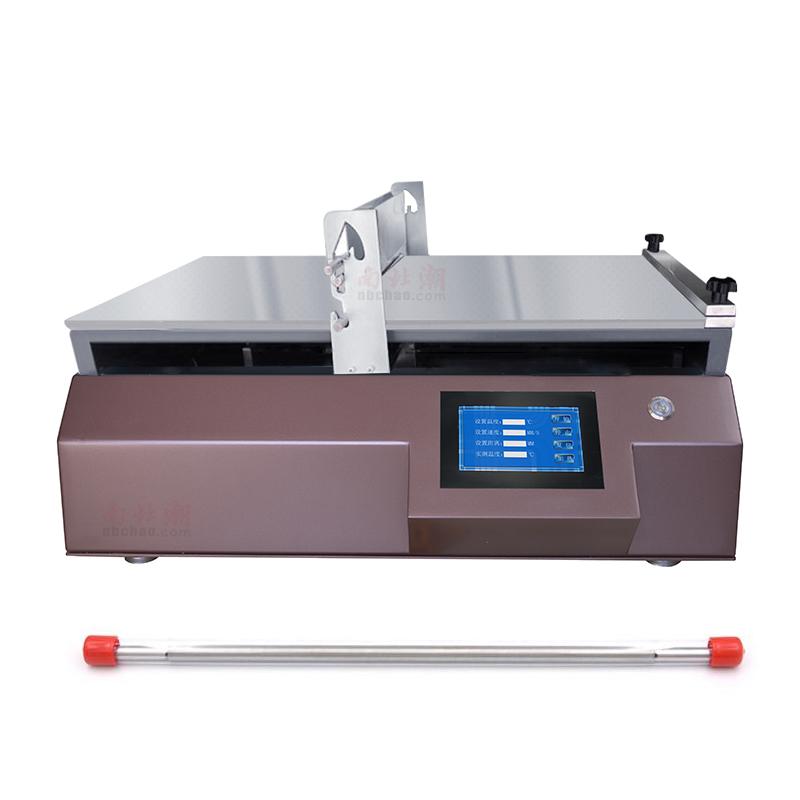

TBJ-X4-DJ7 Automatic Film Applicator is a China customized Spreader size experimental equipment. It adopts imported accessories and has a good price. It is favored by multinational R & D institutions, universities and scientific research institutions at home and abroad. By controlling the speed and stable pressure of the Spreader, the uniformity and smoothness of the Spreader coating are guaranteed, the problem of artificial film inconsistency is effectively solved, and the film reproducibility is improved. This model is a bar heating Vacuum chuck Film Applicator. The effective area of the Spreader is 500 * 500mm. It is suitable for coating hot melt materials on substrates such as film and release paper.
Features
1. Using imported accessories, the price is good and cheap
2.High Accuracy film bar, Spreader accuracy +/- 0.001mm
3. With heating function, Temperature range RT +~ 180 ℃, uniformity +/- 3 ℃
4. Vacuum chuck fixed substrate, adsorption size 500 * 500mm

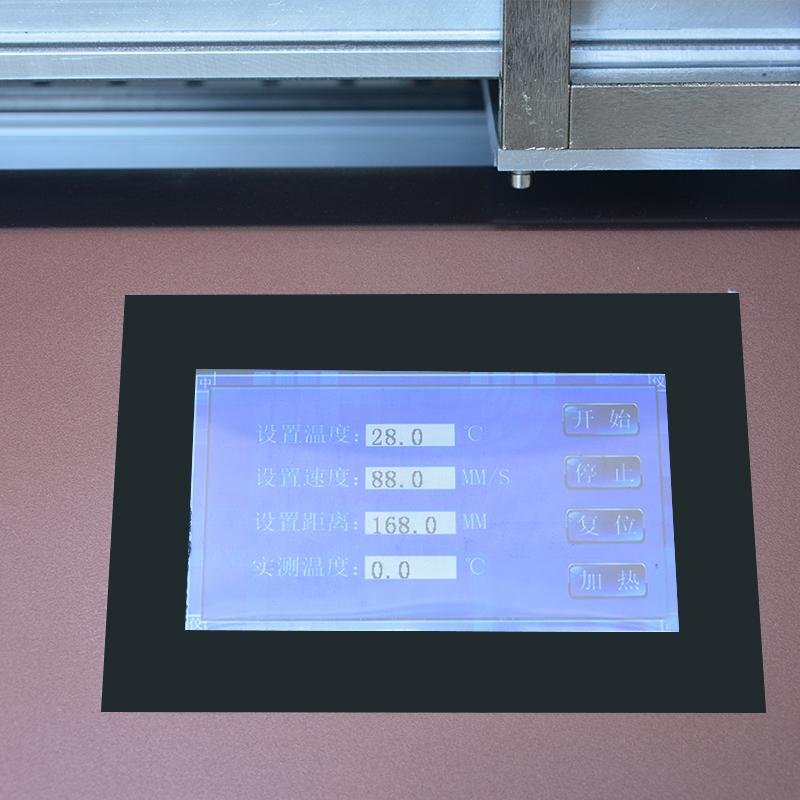

5. Touchscreen control, easy to operate
6. Infinitely variable speed control, coating speed 5~ 200mm/s
7. Customizable Spreader size and function
8. Multiple Optional Accessories
Principle
High Accuracy Spreader is performed with bar by controlling the speed of the Spreader and the steady pressure applied to the film applicator. The device uses Platen Heating to heat the substrate, and at the same time fixes the film, release paper and other substrates through the Vacuum chuck system to ensure that the substrate is flat and stable during the Spreader process, so as to achieve uniform and accurate wet-film Spreader.
Applications
Film Spreader, Release Paper Spreader, Hot Melt Material Spreader, Scientific Research Experiment, University Laboratory, Enterprise R & D Institution
Steps
1. Spreader substrate and place on Vacuum chuck board
2. Set Spreader thickness and bar model according to requirements
3. Set the heating temperature to the desired range
4. Adjust the coating speed in the range of 5~ 200mm/s
5. Spreader Travel 1~ 400mm
6. Start Vacuum chuck fixed substrate
7. Start Spreader operation via Touchscreen control
8. Turn off the device after completing the Spreader
Notice
• Spreader thickness range 1~ 571.5μm should be determined according to the bar model
• Customized coating speed below 5mm/s
• The effective coating area 500 * 500mm can be customized
• Uniformity of heating Temperature +/- 3 ℃
• Ensure that the substrate is firmly fixed on the Vacuum chuck board before use
• Accessories such as leakage tank and substrate fixing fixture can be selected according to needs
• Customized functions need to be confirmed in advance
