Overview

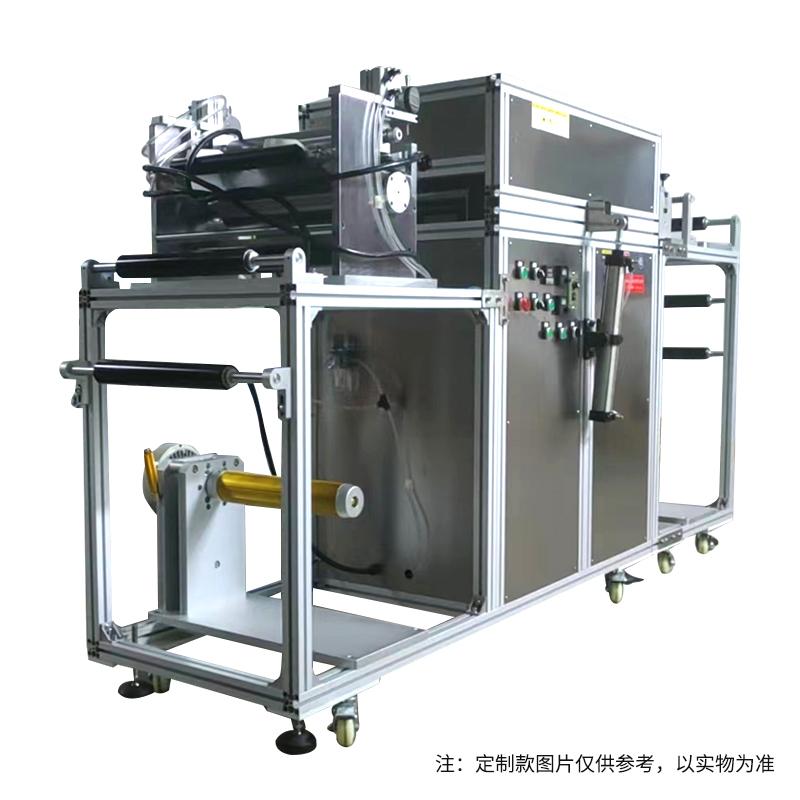

Rxg-01/400 coil drawdown blade Automatic film applicator is a continuous roll-to-roll Film Applicator with roll-off, scraping, drying and winding functions. The application width is 400mm, and the rubber roller can be heated up to 200 ° C. It is suitable for stickers, plasters, plasters, etc.
Features
1. Body structure composed of aluminum alloy + high electrostatic spray plate
2. Equipped with a gluing width adjustment device, composed of food-grade plastic and adjustable braces
3. Configure two discharge racks with automatic deviation correction function
4. The coating roller group is made of double-drum precision machining parts, with smooth transmission
5. Equipped with a thickness adjustment dial meter to precisely control the thickness of the Spreader
6. The transmission platform is made of stainless steel
7. The traction roller set is well designed and easy to operate
Principle
The device releases the substrate through the unwinding device, and is glued by the Blade Coating device. The thickness of the Spreader is adjusted by the dial meter. The glued substrate is smoothly transferred to the drying tunnel through the transmission platform for drying, and finally the winding is completed by the traction roller group. Realize continuous roll-to-roll Spreader processing.
Applications
Stickers, plasters, plasters
Steps
1. Place the substrate in the discharge rack
2. Adjust the glue width and thickness to the required parameters
3. Drag the substrate by hand between the upper and lower rollers of the traction roller
4. Tighten the handwheel on the rack to make the rubber ring of the upper roller of the traction roller contact the lower roller
5. Start the equipment, and the traction roller group pulls the substrate through the power transmission to complete the Spreader work
Notice
• When adjusting the glue thickness, the specific thickness should be determined according to the instructions of the percentage table
• Before the equipment runs, make sure that the substrate is correctly pulled to the traction roller group
• Pay attention to the high temperature of the drying tunnel during operation to avoid burns
• Check whether the Power supply voltage meets the 220V requirement before use
