Overview

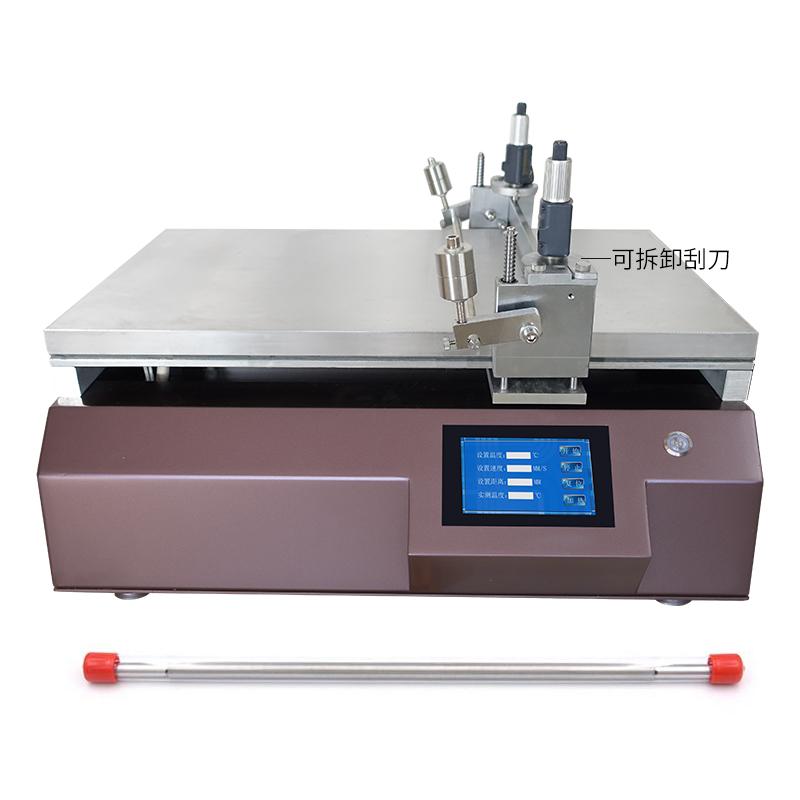

TBJ-X2-DJ12 Automatic Film Applicator is a small Spreader device with an effective coating area of 400 * 500mm, bar and Blade Coating methods, equipped with Vacuum chuck function, suitable for film proofing of film, release paper and other substrates. The device solves the problem of artificial film inconsistency through automated operation, significantly improves the reproducibility of film, and supports customization of larger formats.
Features
1. coating method: bar + drawdown blade double coating method
2. drawdown blade characteristics: detachable design, easy to clean, easy to replace
3. High Accuracy Spreader: Blade Coating accuracy +/- 0.003mm, meyer rod coating accuracy +/- 0.001mm
4. Wide thickness range: Blade Coating thickness 0.001~ 10mm adjustable, bar Spreader thickness 1~ 571.5μm
5. Infinitely variable speed control: coating speed 5~ 200mm/s adjustable
6. Vacuum chucking system: effectively fixed substrate
7. Touchscreen control: easy and intuitive operation
8. Rich optional Accessories: leakage tank, substrate fixing fixture, fine-tuning horizontal height support foot device, etc
9. Customized service: Support automatic lame plating device, UV curing device, double extrusion Spreader and other function customization
Principle
The Automatic Film Applicator precisely controls the speed of the Spreader and the pressure applied to the film applicator to achieve accurate wet-film Spreader on different substrates. The device uses Vacuum chuck to fix the substrate, and the Spreader operation is carried out through the bar or drawdown blade. The Touchscreen Control system adjusts the Spreader parameters to ensure the conformity and reproducibility of the film.
Applications
Spreader, release film, film proofing
Steps
1. Prepare the Spreader substrate and place it on the Spreader stage
2. Vacuum chuck system fixed substrate
3. Set Spreader parameters (Speed, Travel, etc.) through Touchscreen
4. Select the appropriate Spreader tool (bar or drawdown blade)
5. Start the Spreader
6. Remove the sample after completing the Spreader
Notice
• Make sure the equipment is placed horizontally before use
• Choose the appropriate fixing method according to the thickness of the substrate
• Spreader parameter settings need to be adjusted according to specific materials
• Regularly clean the Spreader tool to maintain accuracy
• Customized functions need to confirm technical parameters in advance
