Overview

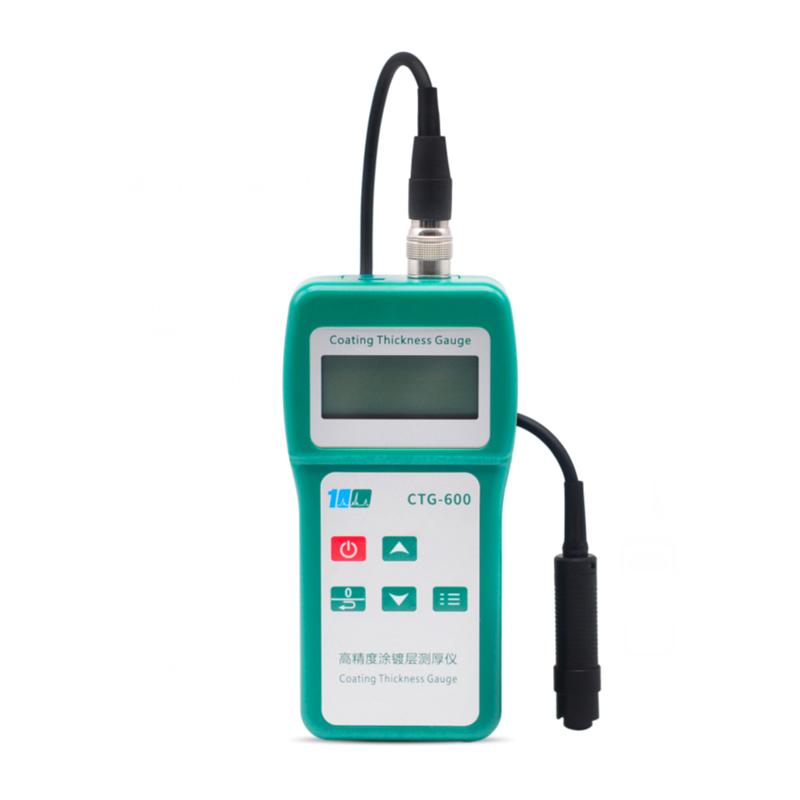

YIBAI CTG-600Z split Coating thickness gauge adopts the principle of magnetic Induction, which can automatically identify magnetic metal substrates and measure the thickness of coatings and platings quickly, without damage and precision. It can be used in laboratories and engineering sites, and is widely used in the automotive industry, manufacturing, metal processing industry, chemical industry, commodity inspection and other testing fields.
Features
1. With backlight, large screen digital display, single point and multi-point Adjustment
2. High and low temperature resistance, drop resistance, Probe wear resistance (more than 500,000 times)
3. Test Stability, Test speed, suitable for various measurement environments
4. Switchable display of galvanized Grammage and thickness
5. Probe with wear resistant carbide probe
6. Can quickly and automatically identify the magnetic substrate
7. High accuracy, Stability, can measure 1-5μm ultra-thin coatings
8. Measurement speed up to 0.3 seconds/time
9. Two shutdown methods: manual shutdown mode and automatic shutdown mode
10. Measurement range, high resolution
11. Adopt digital backlight display, ignore the difference, suitable for night use
12. Measurement mode: single measurement/continuous measurement
13. With metric-inch unit conversion function, it realizes μm/mil conversion
14. New design shell and internal structure to enhance product beauty, anti-drop and impact resistance
15. Measurement accuracy
Principle
The magnetic Induction + eddy Current Measurement principle is used. The Fe function detects the nonmagnetic Coating thickness on all magnetic substrates, such as lacquers on steel, iron, powder coatings, plastics, porcelain, chromium, copper, zinc, etc. The NFe function detects the insulation Coating thickness on all nonmagnetic substrates, such as lacquers, plastics, porcelain, etc. These coatings must be applied on nonmagnetic metal substrates such as aluminum, copper, brass or stainless steel.
Applications
Automobile industry, manufacturing industry, metal processing industry, chemical industry, commodity inspection
Standards
National standards, international standards
Steps
1. Install 2 AA batteries
2. Measurement mode: single measurement or continuous measurement
3. Touch the Probe surface for measurement
4. Read the measurement results displayed by the LCD point array LCD screen
5. You can choose manual shutdown or automatic shutdown.
Notice
• Operating Environment Temperature should be in the range of -10-50 ℃
• Operating Environment Humidity should be less than 80%
• Suitable for nonmagnetic coating measurements on magnetic substrates
• The thinnest substrate is required to be 0.3mm.
• Minimum radius of curvature for convex surface measurement is 1.5mm
• Measurement error range of +/- 2%
• Ensure that the Probe is in sufficient contact with the surface to be tested to obtain accurate readings
