Overview

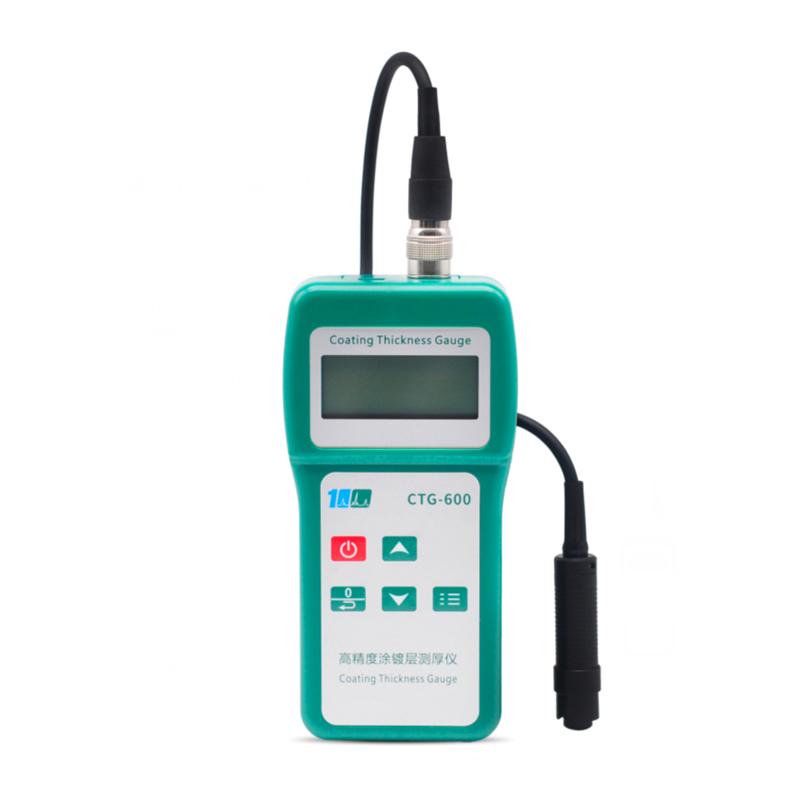

YIBAI CTG-600F split Coating thickness gauge adopts the principle of magnetic Induction, which can automatically identify magnetic metal substrates and measure the thickness of coatings and platings quickly, without damage and precision. It is suitable for laboratories and engineering sites, and is widely used in the automotive industry, manufacturing, metal processing industry, chemical industry, commodity inspection and other fields.
Features
1. The spring guide sleeve Probe with wear-resistant cemented carbide probe is used to ensure stable compression force and sampling value.
2. Fast automatic identification of magnetic matrix.
3. High accuracy, Stability, can measure 1-5μm ultra-thin coatings.
4. Measurement speed up to 0.3 seconds/time.
5. The large-screen digital display is clearer.
6. Two shutdown methods: manual and automatic.
7. Measurement range and high resolution.
8. Digital backlight display, regardless of differences, suitable for night use.
9. Measurement mode: single measurement/continuous measurement.
10. With metric-to-metric unit conversion function (μm/mil).
11. New design shell and internal structure, beautiful, anti-drop, anti-Impact.
12. Measurement accuracy is good.
13. High and low temperature resistance, anti-drop, Probe wear resistance (more than 500,000 times), good test Stability, Test speed.
Principle
Using the principle of magnetic Induction, the Fe function can detect the nonmagnetic Coating thickness on all magnetic substrates, such as lacquers on steel, iron, powder coatings, plastics, porcelain, chromium, copper, zinc, etc.
Applications
Automobile industry, manufacturing industry, metal processing industry, chemical industry, commodity inspection
Standards
National standards, international standards
Steps
Install 2 AA batteries.
2. Automatically identify the magnetic substrate after booting.
3. Measurement mode: single measurement or continuous measurement.
4. Tap Probe for measurement, and the screen displays the thickness value.
5. You can choose manual shutdown or automatic shutdown.
Notice
• Use ambient temperature range of -10-50 ℃, Humidity < 80%.
Make sure the substrate is made of magnetic material and the thinnest substrate is not less than 0.3mm.
• Keep Probe perpendicular to the surface during measurement to avoid affecting accuracy on rough surfaces.
• Probe abrasion to ensure measurement Stability.
• Avoid instrument from strong Impact or drop to maintain anti-drop performance.
