Overview

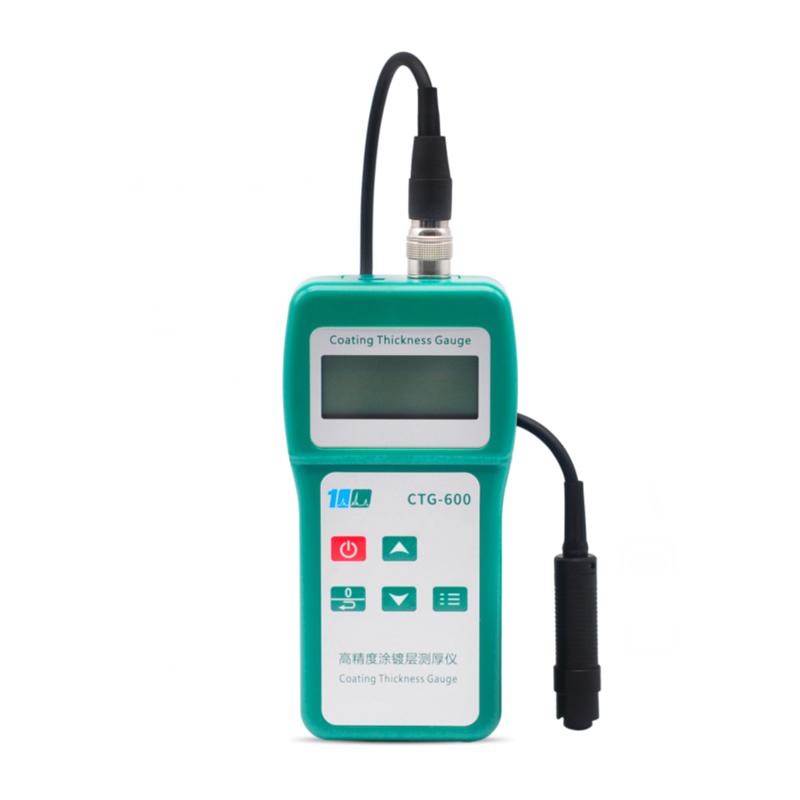

YIBAI CTG-600F10 Coating thickness gauge uses the principle of magnetic Induction to detect the nonmagnetic Coating thickness on all magnetic substrates. It can quickly, non-destructive and accurately measure the thickness of coatings and platings. It can be used in laboratories and engineering sites. This instrument can be widely used in the automotive industry, manufacturing, metal processing industry, chemical industry, commodity inspection and other testing fields.
Features
1. Backlight, large screen digital display
2. Single point and multi-point Adjustment
3. High and low temperature resistance, anti-drop
4. Probe wear resistance (more than 500,000 times)
5. Good Test Stability
6. Test speed
7. Suitable for various measurement environments
Principle
YIBAI CTG-600F10 Coating thickness gauge uses the principle of magnetic Induction to detect nonmagnetic Coating thickness on all magnetic substrates.
Applications
Automobile industry, manufacturing industry, metal processing industry, chemical industry, commodity inspection
Standards
National standards, international standards
Steps
1. Install 2 AA batteries (AAA)
2. Select Fe function to detect nonmagnetic Coating thickness on magnetic substrate
3. Probe contact with the surface to be measured for measurement
4. Read the thickness value displayed by the LCD point array LCD screen
Notice
Only for nonmagnetic coating measurements on magnetic substrates
• Use ambient temperature range of -10-50 ℃, Humidity < 80%
• The minimum substrate thickness is 0.3mm.
• Pay attention to the minimum curvature radius requirements when measuring: convex 20mm, concave 50mm
• Measurement error range of +/- 3%
• Pay attention to the battery power and replace it in time
