Overview

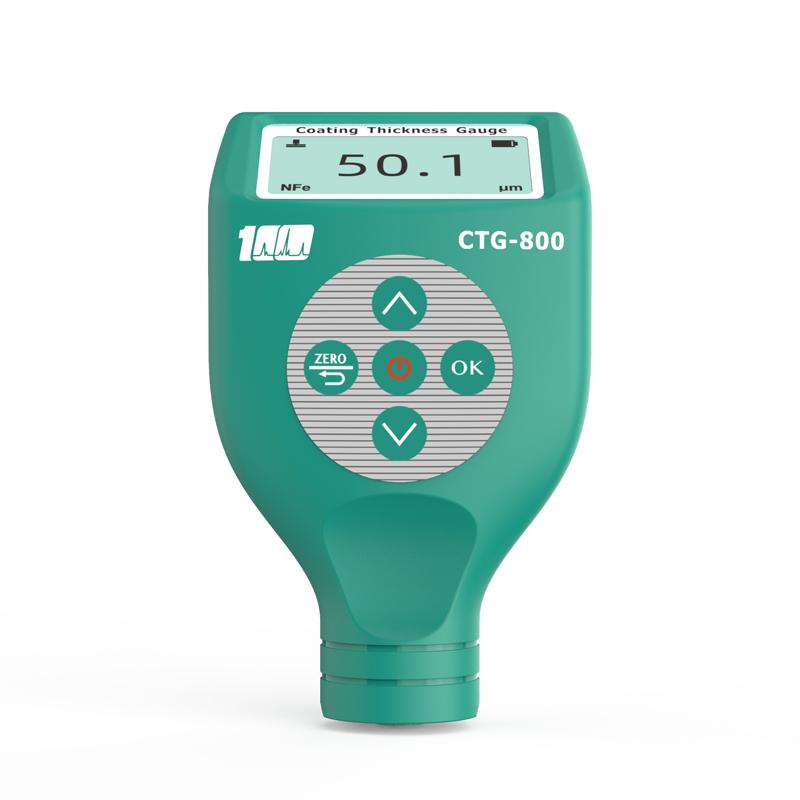

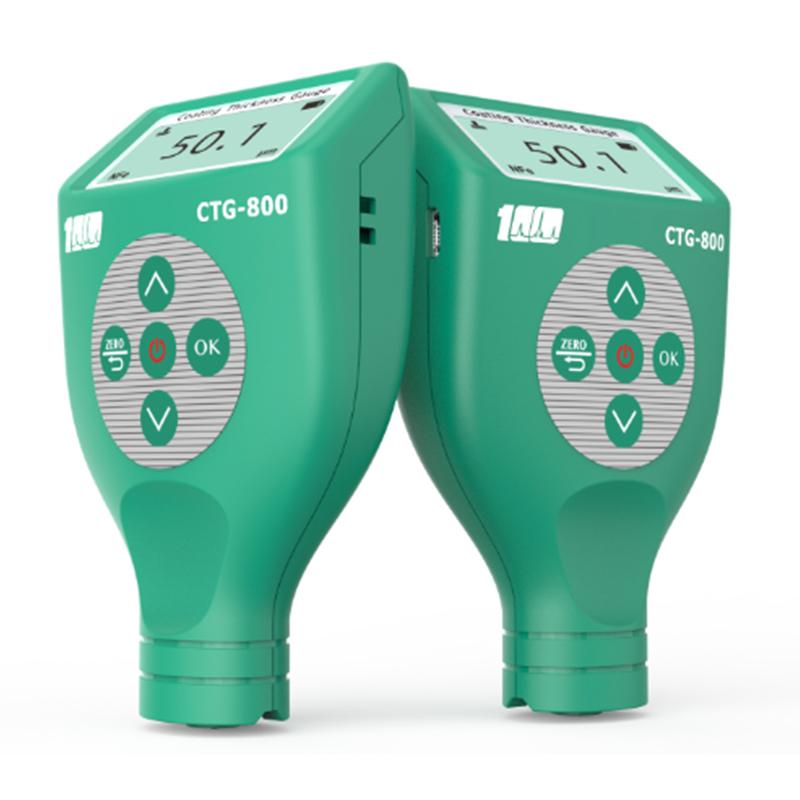

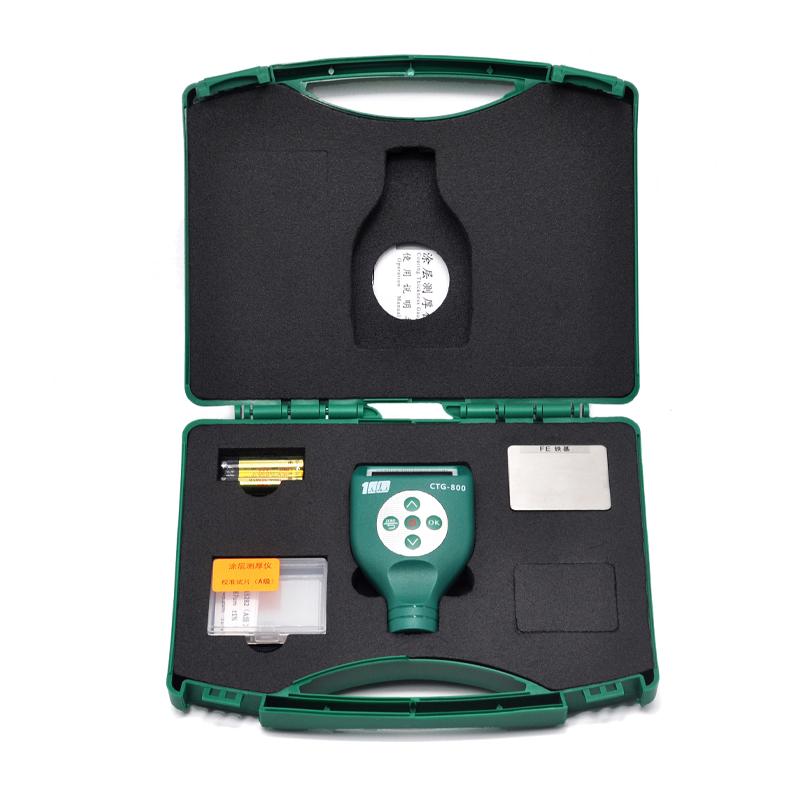

The YIBAI CTG-800Z Coating thickness gauge integrates magnetic and eddy current technology to automatically identify different magnetic substrates and realize automatic conversion. It can quickly, nondestructive and accurately measure the thickness of coatings and platings, and is suitable for laboratories and engineering sites. The instrument is widely used in automotive, manufacturing, metalworking, chemical and commodity inspection, etc.
Features
1. With backlight, large screen digital display, single point and multi-point calibrating and other functions
2. High and low temperature resistance, excellent anti-drop performance, Probe life up to 500,000 times
3. High measurement Stability, fast speed, adapt to a variety of complex measurement environment
4. Probe with wear resistant carbide probe
5. Can quickly and automatically identify magnetic and nonmagnetic substrates
6. High accuracy, Stability, can measure 1-5μm ultra-thin coatings
7. Measurement speed up to 0.3 seconds/time
8. Two shutdown methods: manual shutdown and automatic shutdown
9. Measurement range, high resolution
10. Adopt digital backlight display, ignore the difference, suitable for night use
11. Measurement mode: single measurement/continuous measurement
12. With metric-inch unit conversion function, it realizes μm/mil conversion
13. Newly designed shell and internal structure to enhance product beauty, anti-drop and impact resistance
14. Measurement accuracy
15. Galvanized Grammage function: can switch to display galvanized Grammage unit gram/square meter
Principle
The CTG-800Z Coating thickness gauge uses the magnetic Induction + eddy Current Measurement principle. The Fe function is used for the measurement of nonmagnetic Coating thickness on magnetic substrates such as steel and iron, including lacquers, powder coatings, plastics, porcelain, chromium, copper, zinc, etc. The NFe function is suitable for the measurement of insulation Coating thickness on nonmagnetic metal substrates such as aluminum, copper, brass or stainless steel, such as lacquers, plastics and porcelain.
Applications
Automotive, manufacturing, metal processing, chemical industry, commodity inspection
Standards
National, international
Steps
1. Choose Fe function (magnetic substrate) or NFe function (nonmagnetic substrate) according to measurement needs

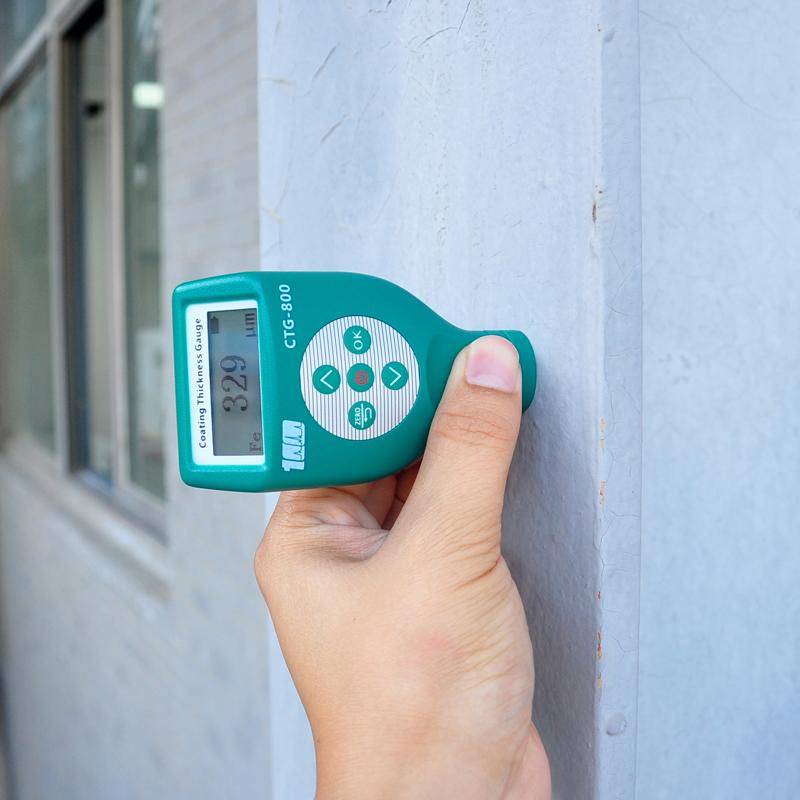

2. Touch the Probe surface for measurement
3. Single measurement or Continuous Measurement mode
4. Switch display units (μm/mil) or galvanized Grammage units as needed
5. After use, you can choose to shut down manually or wait for automatic shutdown.
Notice
● Operating Environment Temperature should be in the range of -10-50 ℃
● Operating Environment Humidity should be less than 80%
● Pay attention to the minimum curvature radius requirements during measurement: magnetic substrate convex 1.5mm/concave 25mm, nonmagnetic substrate convex 3mm/concave 50mm
The thinnest substrate thickness is 0.3mm.
● Powered by 2 AA batteries
● Suitable for nonmagnetic coatings on magnetic substrates and insulating coatings on nonmagnetic substrates
