Overview

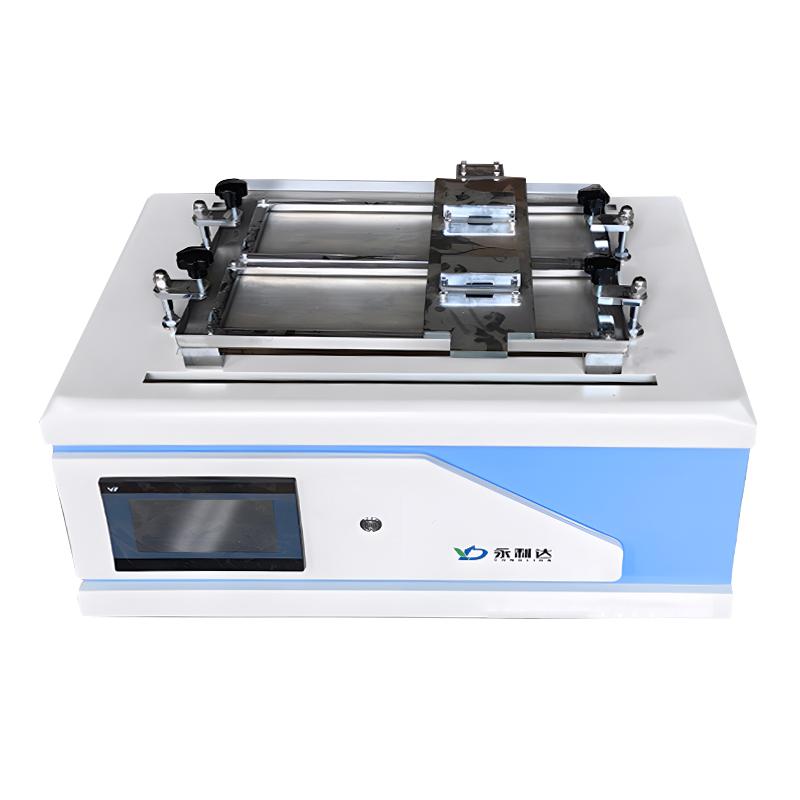

YONGLIDA YLD-5810 Coating scrubbing resistance tester is designed and manufactured according to GB/T9266 "Determination of scrubbing resistance of architectural coatings coatings", and meets the test requirements of the new national standard GB/T9755. The instrument adopts a color LCD Touchscreen Control system, which is suitable for measuring the scrubbing resistance of architectural coatings coatings (flat). It is a testing instrument for scientific research Measurement and Coating manufacturers.
Features
1. Color LCD Touchscreen Control system
2. After the number of brush runs reaches the set number of times, it will automatically stop working
3. After replacing the brush, a variety of standard tests can be done (customized)
4. Driven by DC stepper motor, safe and has no impact on mains power fluctuations
5. Adopt a modular slider system for smooth operation
6. Using a double brush combination, two tests can be done each time
7. Peristaltic Pump Control Liquid Flow velocity, Flow velocity adjustable
8. Worktable with 304 stainless steel design, corrosion resistance
Principle
The instrument drives the brush to reciprocate on the coating surface through a DC stepper motor to simulate the washing process in actual use. The peristaltic pump controls the liquid Flow velocity to ensure stable test conditions. Automatic stop when the number of brush runs reaches a preset value to evaluate the washing performance of the coating.
Applications
Research Measurement, Coating Factory
Standards
GB/T9266、GB/T9755
Steps
1. Prepare test samples and instruments
2. Set the number of brush runs
3. Start the instrument for testing
4. Record the result after the brush automatically stops
5. Replacement of brushes for Miscellaneous standard test (requires customization)
Notice
• The replacement brush needs to be customized.
• Power supply voltage 220V, 50HZ
• Regularly check the operating status of the instrument
• Keep the workbench clean
