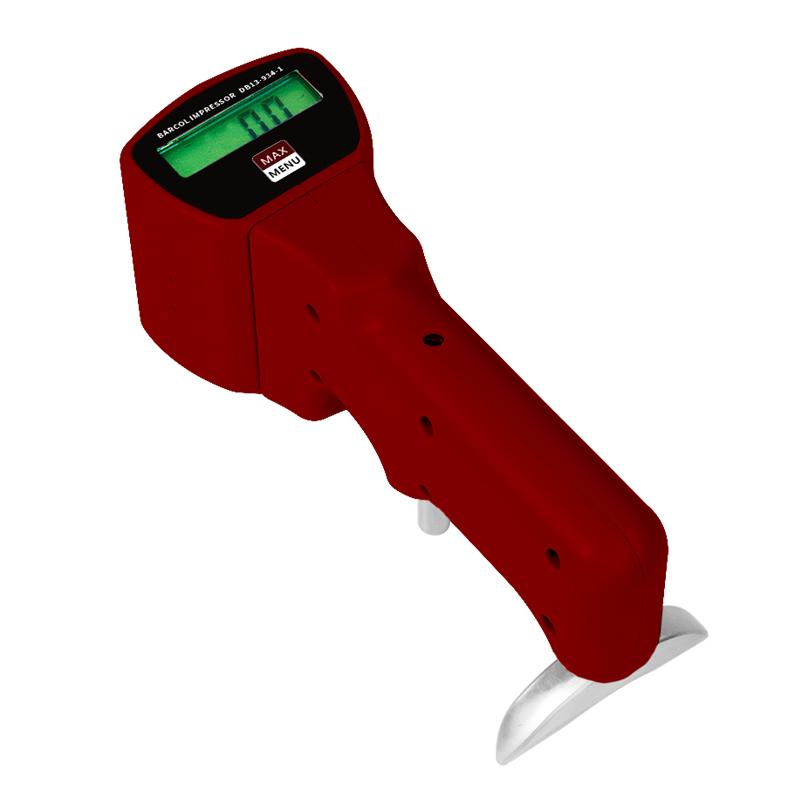

DUBAN DB13-934-1 Pasteur hardness Gauge Che hardness Gauge Single hand operation

Name: DUBAN DB13-934-1 Pasteur hardness Gauge Che hardness Gauge Single hand operation
Brand: Duban
SKU: NB047405
Price: 711.0 USD
Availability: InStock

$ 711.00Ex works

Che type hardness Gauge, test range 0~ 100HBa, equivalent to brinell hardness 25~ 150HB, no support, one-handed operation, with MAX Maximum retention function, suitable for various aluminum alloys and frp materials.

Model

DB13-934-1

Get Quote

Category : Other Hardness Testers

Brand : Duban

SKU : NB047405

Service :The delivery and service By NBCLab.Com

Overview

DB13-934-1 Pasteur hardness gauge is a newly designed and developed Cang type hardness gauge, mainly used in aluminum processing industry and frp industry. It is used to test pure aluminum, softer aluminum alloys, thicker aluminum alloys, Aluminum Panels, Aluminum profiles, aluminum rods, aluminum castings, aluminum forgings and aluminum alloy products.

Features

1. Pap Hardness value (HBa) of measurable materials 2. Small and lightweight design, one-handed operation, one pressure can be used, no experience is required, and it can be used in any occasion 3. Wide test range, from very soft pure aluminum to particularly hard aluminum alloy can be tested, the effective test range is equivalent to brinell hardness 25~ 150HB 4. No support required, only tested on one side of the sample, suitable for testing oversized and ultra-thick workpieces and assemblies 5. With MAX Maximum Hold function, record the maximum Hardness value during measurement 6. DB13-934-1 + model can additional measurement brinell hardness value (HB), Vickers Hardness value (HV), Wechsler Hardness value (HW), rockwell hardness value (HRB/HRE/HRF/HRH) 7. The DB13-934-1 + model has the average calculation function, which can calculate the average of up to 29 sets of data

Principle

The DB13-934-1 Pasteur hardness gauge uses the principle of Cedar hardness testing to evaluate the Hardness value by measuring the Cedar on the surface of the material.

Applications

Aluminum processing industry, FRP industry

Standards

ASTM B648-10 (2015) Standard Test Method for Crane Hardness measurement of aluminum alloys with Bacol hardness gauge, ASTM D 2583-13 Standard Test Method for Bacol Hardness of Hard Plastics, GB/T 3854-2005 Standard Test Method for Bacol Hardness of Hard Plastics, GB/T 3854-2005 Test Method for Bacol Hardness of Reinforced Plastics

Steps

1. Hold the hardness gauge with one hand 2. Align the hardness gauge head to the test sample Step 3 Apply pressure to test 4. Read the displayed Hardness value

Notice

• Ambient Temperature should be in the range of 0~ 50 ℃ • Environmental humidity should be less than 80% RH • Powered by 2 AA batteries • Make sure the surface of the sample is clean and flat before testing • Avoid use in humid or corrosive environments

Measurement Range
0~ 100HBa, equivalent to 25~ 150HBW
resolution
0.1HBa
Indication Error
81~88HBa ±1HBa
repeatability error
81~88HBa ±1.5HBa
MAX Maximum Hold Function
Yes.
Operating environment
Temperature: 0~ 50℃; Humidity: < 80% RH
power supply
2 AA batteries
Dimension
170x63x82mm
weight
390G (without battery)
