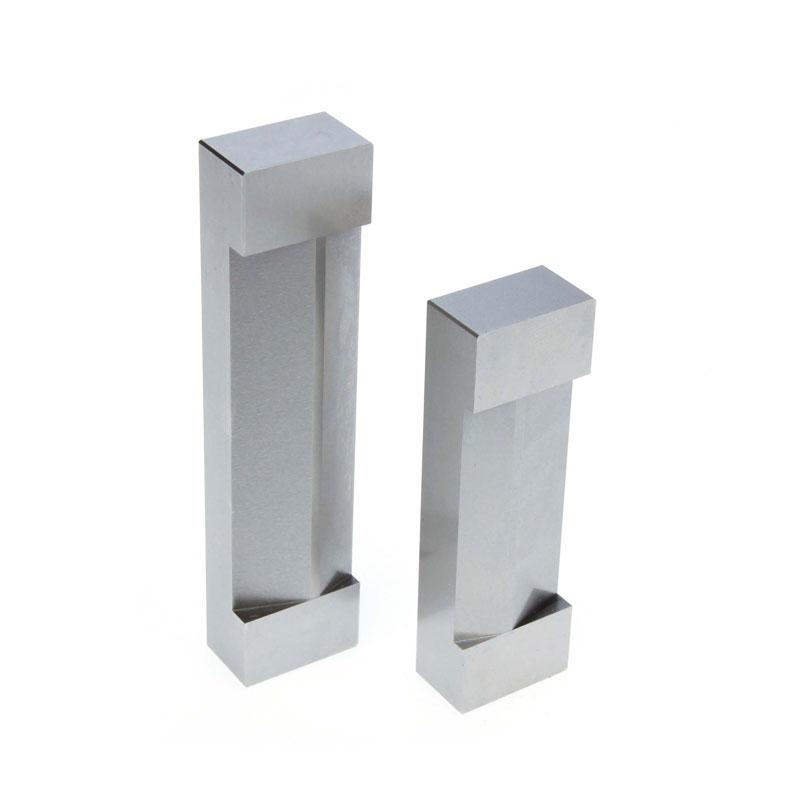

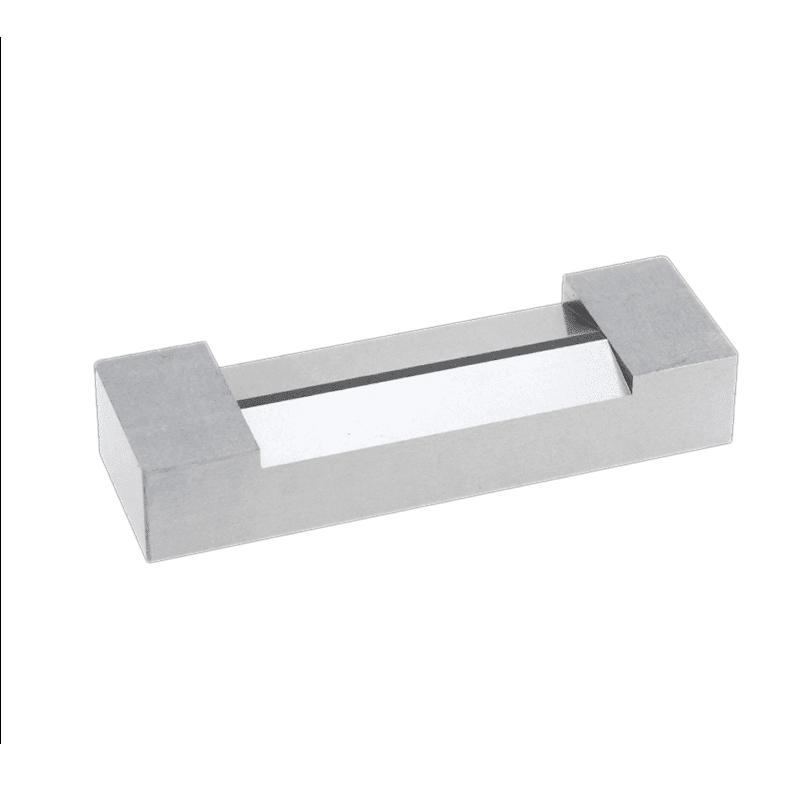

TQC sheen VF1576 prismatic bird type Film Applicator stainless steel 200μm wet film thickness

Name: TQC sheen VF1576 prismatic bird type Film Applicator stainless steel 200μm wet film thickness
Brand: TQC sheen
SKU: NB004743
Price: 781.0 USD
Availability: InStock

$ 781.00Ex works

Medical grade stainless steel material, wet film thickness 200μm, accuracy +/- 2μm, suitable for a variety of smooth flat surface, simple operation without adjustment.

Model

VF1576

Get Quote

Category : Film Applicator

Brand : TQC sheen

SKU : NB004743

Service :The delivery and service By NBCLab.Com

Overview

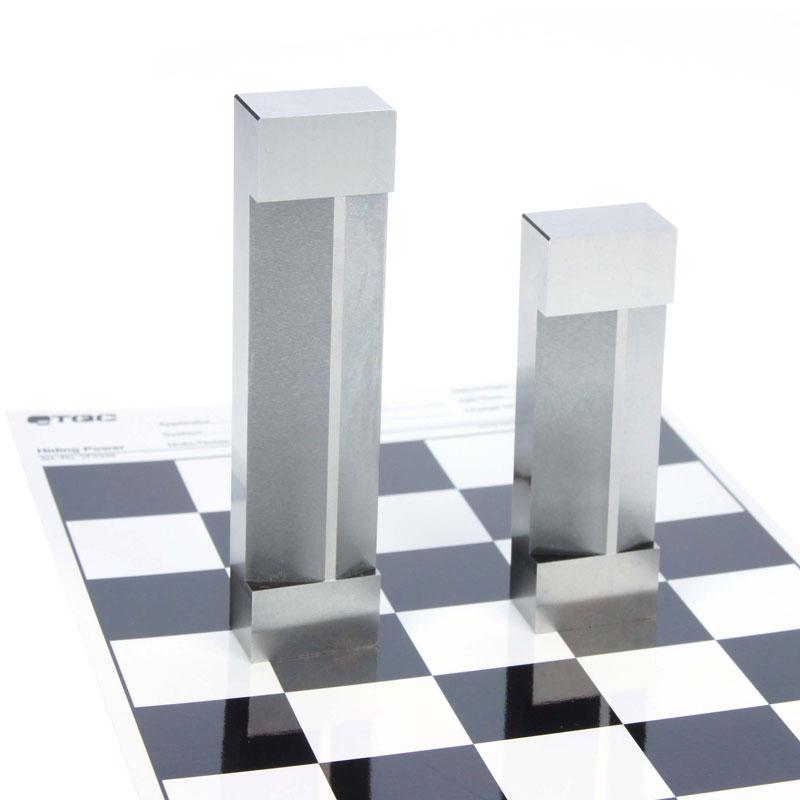

The TQC Prismatic Bird film applicator VF1576 is a single top coated cloth tool designed for paper, hiding power cards, Glass plates or Miscellaneous smooth flat surfaces. The product is easy to operate and accurate, making it an ideal tool for production quality control. It can be used without adjustment and has an application width of 75mm.

Features

1. Using DAIDO 440C medical grade martensitic stainless steel material, sub-zero vacuum hardening treatment, Hardness up to HRC55 highest grade 2. wet film thickness 200μm, application width 75mm, accuracy +/- 2μm 3. Surface polishing, Dimension 105 * 25 * 15mm, overall accuracy does not exceed 3μm 4. No adjustment required, simple and accurate operation

Principle

The film applicator uses a prismatic bird-shaped design to uniformly Spreader wet-film on a smooth and flat surface, and uses the precision-machined Spreader edge to control the wet film thickness to achieve accurate Spreader effect.

Applications

Paper, hiding power card, Glass plate, smooth flat surface

Type
single-sided
wet film thickness
200μm
application width
75mm
accuracy
±2μm
material
DAIDO 440C material Medical grade martensitics stainless steel tool steel. Sub-zero vacuum hardening (+ 1756 ℃~ -70℃), Hardness is HRC55 (highest rocKwell hardness grade)
Size
105*25*15mm
surface preparation
polishing

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
