Overview

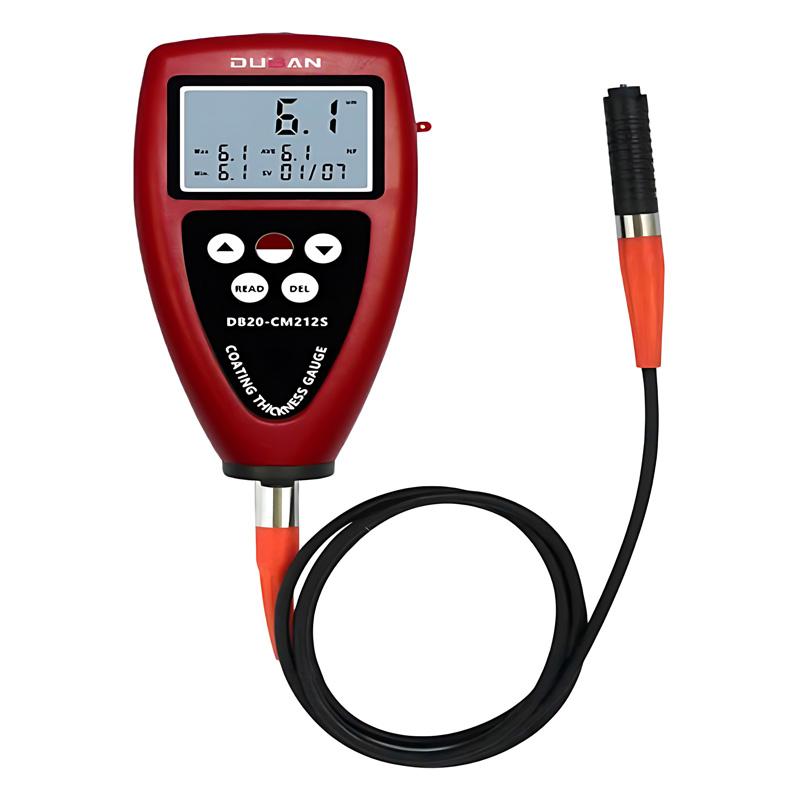

The DB20-CM212S is a statistical split Coating thickness gauge, which can store 99 sets of new measurement data values. It has the characteristics of small measurement error, high Reliability, Good Stability and easy operation. It is an indispensable nondestructive testing instrument for controlling and ensuring product mass. The spring guide sleeve Probe with wear-resistant hard metal probe can perform measurements on hard or rough surfaces to ensure that the probe has constant pressing force and stable sampling value.
Features
1. Measurement range, high resolution.
2. Automatic memory calibrated value, easy to use.
3. Small size and light weight.
4. Digital backlight display, ignoring the difference.
5. 99 sets of data can be stored; the statistical function of the instrument is realized by measuring the average value, MAX Maximum and MIN Minimum.
6. Using optional USB software and cables, it can communicate with a PC computer to achieve data acquisition, processing, analysis, and printing functions.
7. It has automatic shutdown to achieve power saving function.
Principle
The DB20-CM212S uses the principle of magnetic Induction and eddy Current, and uses a battery-powered Portable measuring instrument. It uses a number of advanced technologies such as computer technology and nondestructive detection technology to accurately measure its thickness without damaging the subject.
Applications
F Probe: platings, paints layer, enamel layer, aluminum tile, copper tile, Babbitt tile, phosphating layer, paper thickness measurement, hull paints and the thickness measurement of the attachment of underwater structural parts. Nf Probe: paints on the surface of aluminum, copper, zinc, non-magnetic stainless steel, plastic, rubber coating, anodic oxidation layer thickness measurement of aluminum or aluminum alloy materials.
Standards
ISO2178、ISO2360、Gb4956、Gb4957
Steps
1. Single measurement and Continuous Measurement mode optional.
2. Realize the statistical function of the instrument by measuring the average value, MAX Maximum and MIN Minimum.
3. Utilize optional USB software and cables to communicate with PC computers for data collection, processing, analysis, and printing.
Notice
Operating conditions: Temperature 0~ 50 ° C (32~ 122 ° F); Humidity < 80% RH.
- Thinnest substrate: 0.3mm/12mil.
- Minimum convex diameter: 4mm/0.16inch.
- Minimum concave radius: 25mm/0.98inch.
- Minimum measurement surface diameter: 6mm/0.24inch.
Power supply: 2x1.5vAAA 7 #battery.
