Overview

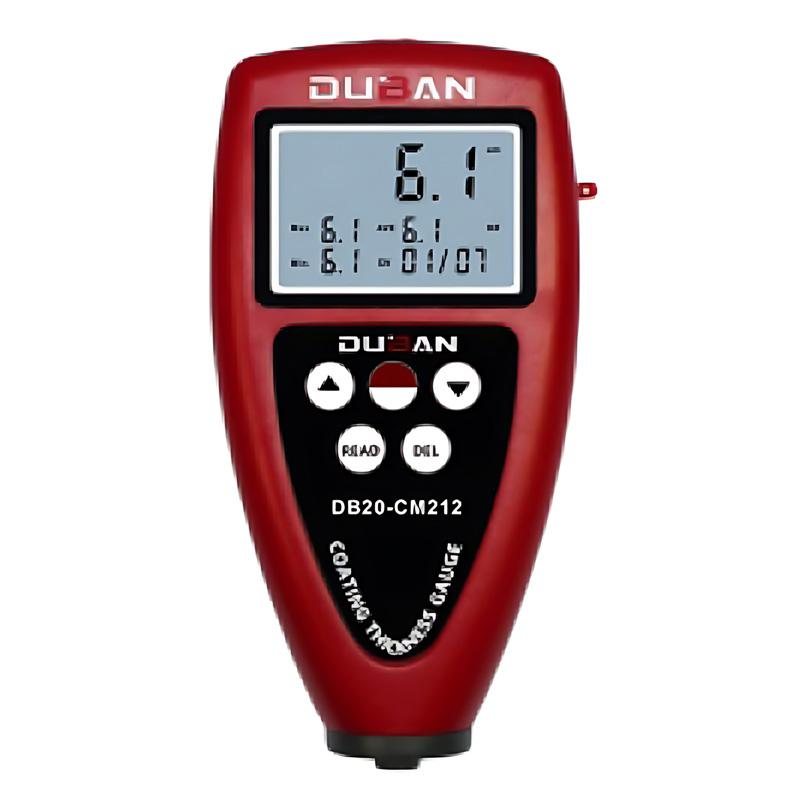

DB20-CM212 is a DUBAN brand statistical Coating thickness gauge, which adopts an integrated design and can store 99 sets of measurement data. The instrument has the characteristics of small measurement error, high Reliability, Good Stability, easy operation, etc. It is an indispensable nondestructive testing instrument to control and ensure product mass. It adopts a battery-powered Portable design and works based on the principle of magnetic Induction and eddy Current to accurately measure thickness without damaging the measured body.
Features
1. Probes with wear-resistant hard metal probes, capable of measurement on hard or rough surfaces, ensuring constant compression force and stable sampling values
2. Measurement range, high resolution
3. Automatic memory calibrated value, easy to use
4. Integrated structure, small size and light weight
5. Digital backlight display, ignoring poor
6. 99 sets of data can be stored, and statistical functions can be realized by measuring the average value, MAX Maximum and MIN Minimum
7. Communicate with PC using optional USB software and cables for data collection, processing, analysis and printing
8. Equipped with automatic shutdown to achieve power saving function
Principle
The DB20-CM212 uses magnetic Induction and eddy Current principles for measurement. It uses computer technology and nondestructive detection technology to accurately measure thickness without damaging the subject. The F Probe is used for measurement of the thickness of the non-magnetically permeable cover on the surface of the magnetically permeable material, and the Nf Probe is used for measurement of the thickness of the insulating cover on the non-magnetically permeable metal substrate.
Applications
F Probe applications: platings, paints, enamel, aluminum tile, copper tile, Babbitt tile, phosphating layer, Paper thickness measurement, hull paints and underwater structural parts attachment thickness measurement
Nf Probe Applications thickness measurement of insulating coatings on non-magnetically permeable metal substrates, thickness measurement of anodic oxidation of aluminum or aluminum alloy materials
Standards
ISO2178、ISO2360、GB4956、GB4957
Steps
1. Choose F-type or Nf-type Probe according to the tested material
2. Single or continuous measurement on the measurement surface
3. The instrument automatically stores data and calculates statistical values
4. Data transfer and analysis via USB connection to PC
Notice
• Ensure that the measurement surface meets the minimum convex diameter of 26mm and minimum concave radius of 50mm
• Operating Ambient Temperature should be in the range of 0~ 50 ° C, Humidity below 80% RH
• Check the battery level before use to ensure normal power supply
Avoid using instruments in extreme environment conditions
• Periodically calibrated for Measurement accuracy
