Overview

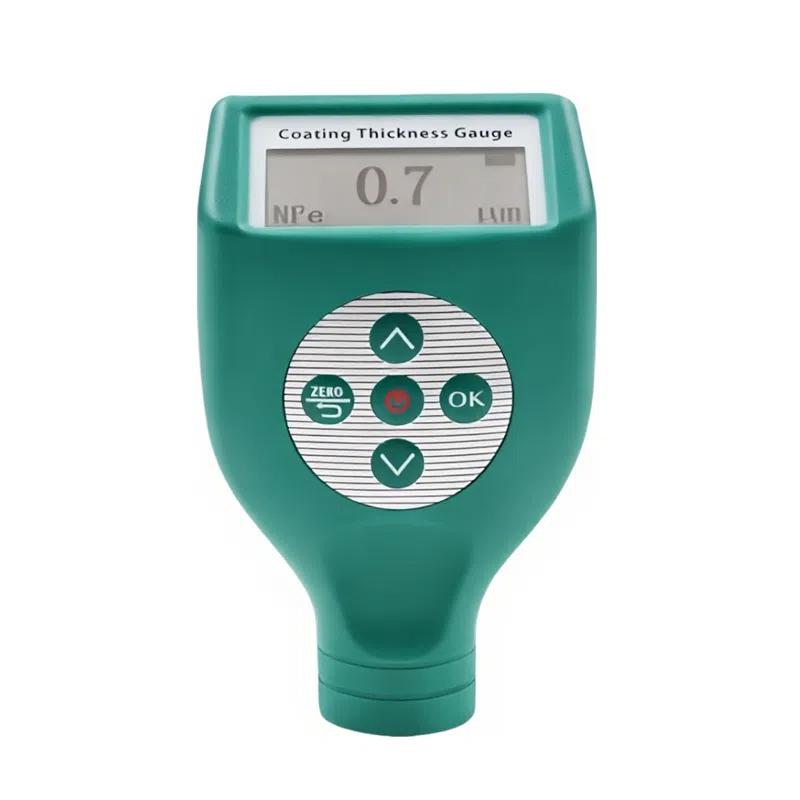

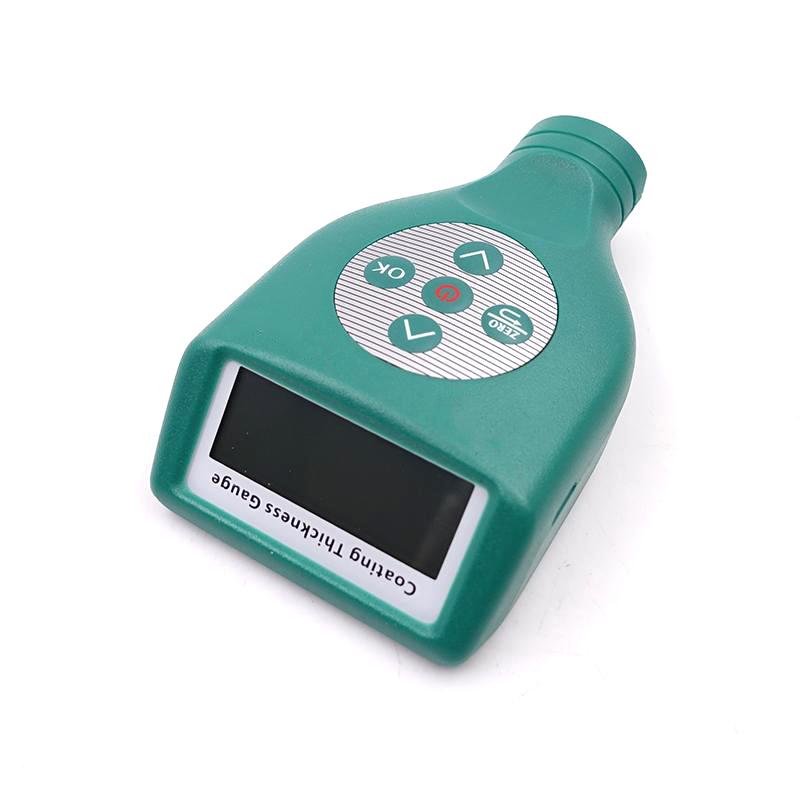

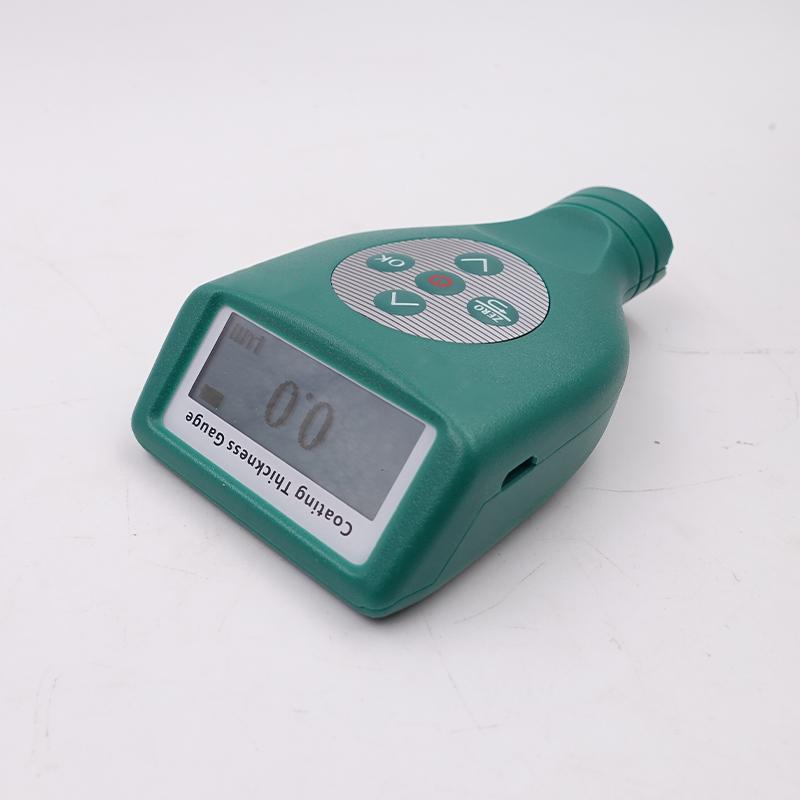

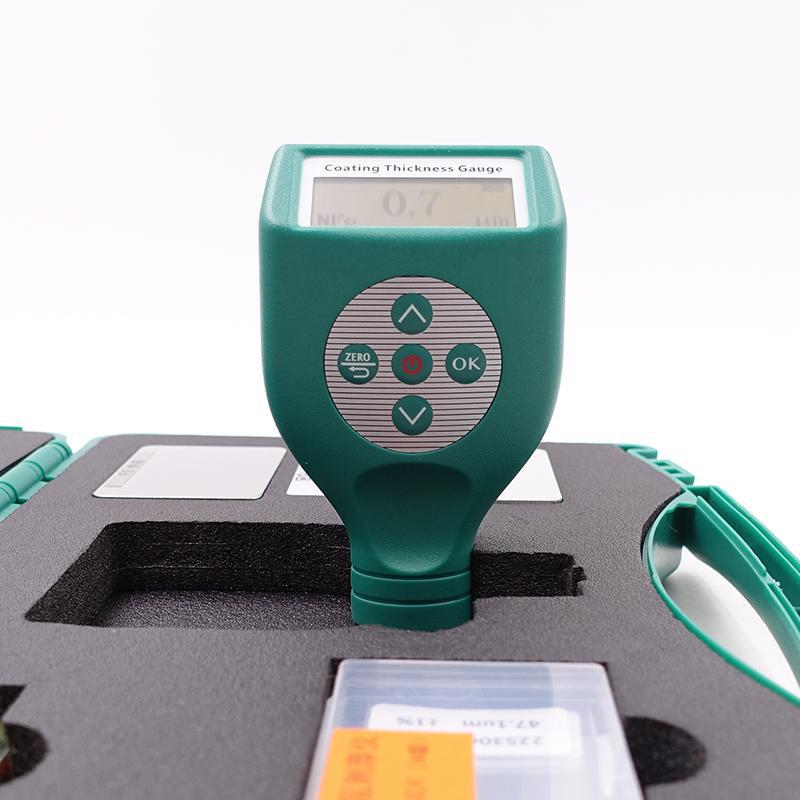

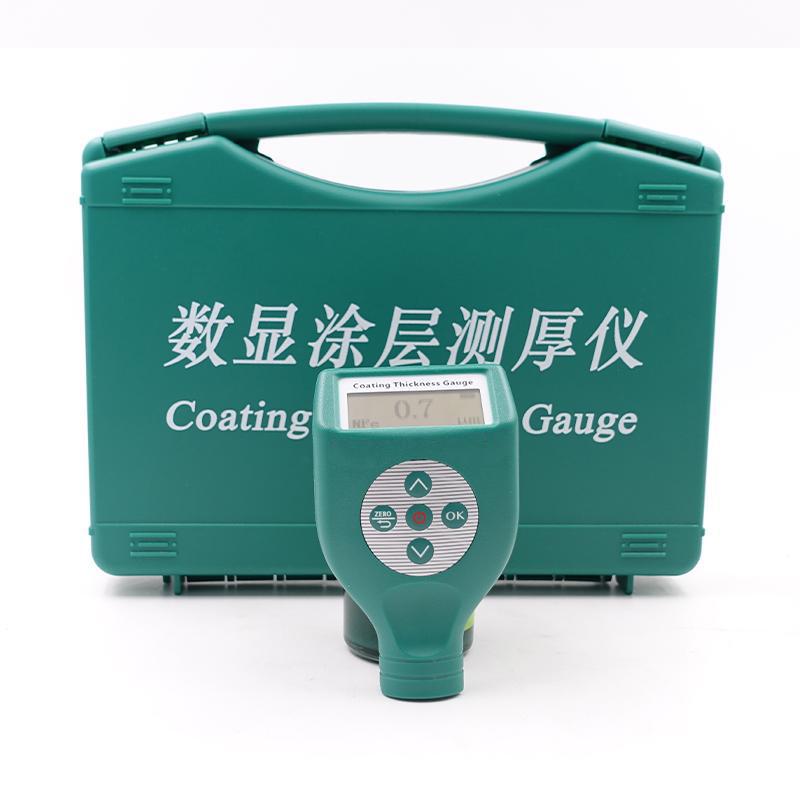

BP-1500FN Coating thickness gauge is a magnetic and eddy current integrated instrument of HuiNuo brand, which can automatically identify magnetic or nonmagnetic substrates and automatically convert them. It can quickly, non-damage and accurately measure the thickness of coatings and platings, and is suitable for laboratories and engineering sites. The instrument is widely used in the automotive industry, manufacturing, metal processing industry, chemical industry, commodity inspection and other fields, and is a tool required by the material protection profession.
Features
1. Measuring methods include magnetic Induction and eddy Current to automatically identify the type of matrix
2. Spring guide sleeve Probe with super wear-resistant cemented carbide probe to ensure stable compression force and sampling value
3. High accuracy, Stability, can measure 1-5μm ultra-thin coatings
4. Measurement speed is fast, up to 0.3 seconds/time
5. Large screen digital backlight display, ignoring poor, suitable for night use
6. With single point and multi-point calibrated, metric and inch unit conversion, single/continuous Measurement mode
7. High and low temperature resistance, anti-drop, Probe wear-resistant 500,000 times or more
8. Measurement accuracy, Measurement range, high resolution
Principle
The BP-1500FN Coating thickness gauge works based on the principle of magnetic Induction and eddy Current. The Fe function uses magnetic Induction to detect the nonmagnetic Coating thickness on magnetic substrates, which is suitable for coatings such as paints and plastics on substrates such as steel and iron. The NFe function uses eddy Current to detect the insulation Coating thickness on nonmagnetic substrates, which is suitable for coatings such as paints and plastics on substrates such as aluminum, copper, and stainless steel.
Applications
Automobile industry, manufacturing industry, metal processing industry, chemical industry, commodity inspection
Standards
National standards, international standards
Steps
1. Install 2 AA batteries
2. Power on and select Measurement mode (Single or Continuous)
3. Touch the Probe surface, and the instrument automatically recognizes the type of substrate
4. Read the thickness value on the display
5. You can choose to shut down manually or wait for automatic shutdown.
Notice
• Test ambient temperature range is -10-50 ℃, relative humidity is less than 80%
• Ensure that the thickness of the substrate is not less than 0.3mm.
• Maintain Probe compression stability during hard or rough surface measurement
• Avoid Strong Impact or Drop of Instrument
• Regularly check Probe abrasion to ensure Measurement accuracy
