Overview

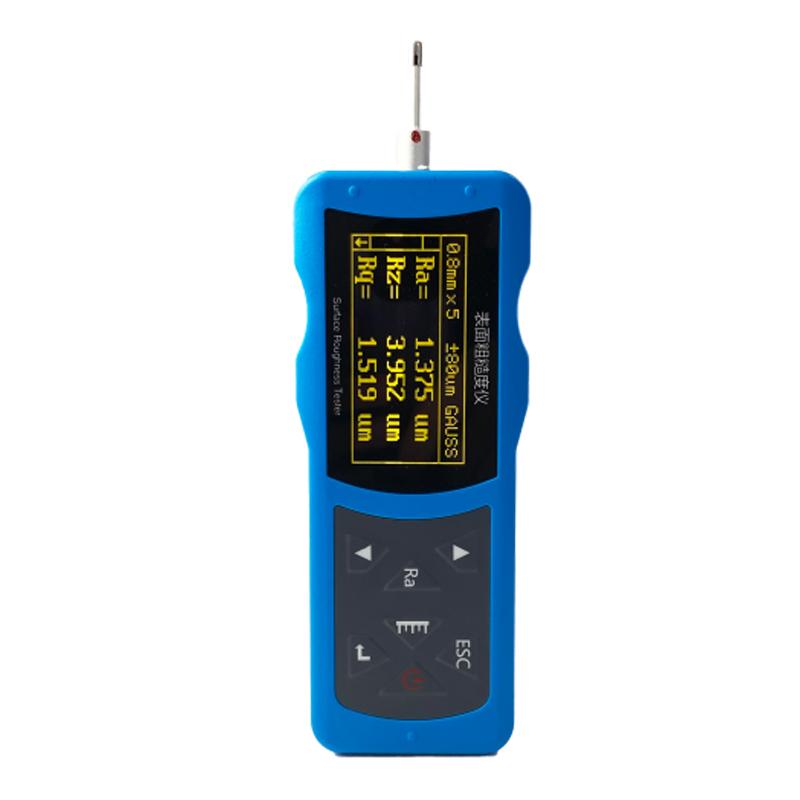

NDT150A surface roughness instrument adopts mechatronics design, with communication and automatic control functions. The instrument supports convenient Bluetooth wireless transmission, DSP control and data processing, large-capacity data storage, anti-motor dead software/hardware design, and is compatible with ISO, DIN, ANSI, JIS and other standards.
Features
1. Large display highlight high definition display
2. Data analysis Data storage export
3. Data storage 100 sets
4. Lithium battery direct charging lasting battery life 24H
5. Bluetooth connection mobile app software
6. USB interface to connect to computer software
7. Fast Response with Low Power Consumption
8. Support Chinese/English language selection
9. Optional Multi-Parameter Printing
Principle
The surface roughness instrument adopts the Displacement Differential Inductance Measurement principle, and glides at different speeds under the guidance of the guide head (carbide, coasting direction radius 40mm) through the diamond contact pin (90 cone angle, 2μm/5μm tip radius). Measurement of surface profile parameters.
Applications
Industrial manufacturing, quality control, surface inspection, materials research
Standards
ISO4287 international standard, ANSI B46.1 American standard, DIN4768 German standard, JIS B601 Japanese standard
Steps
1. Connect the power supply or use the built-in lithium-ion rechargeable battery
2. Measurement parameters and standards
3. Set the sampling length and evaluation length
4. Start Sensor for measurement
5. Export data via Bluetooth or USB
6. Use APP or computer software to analyze the results
Notice
• Working ambient temperature range is -20 ℃~ 40 ℃, Humidity is less than 90% RH
• Storage and transportation ambient temperature range is -40 ℃~ 60 ℃, Humidity is less than 90% RH
• Make sure the stylus and guide are clean and pollution-free during measurement
• Avoid Use in Extreme Temperatures or Humidity Conditions
• Periodically calibrated to ensure Measurement accuracy
