Overview

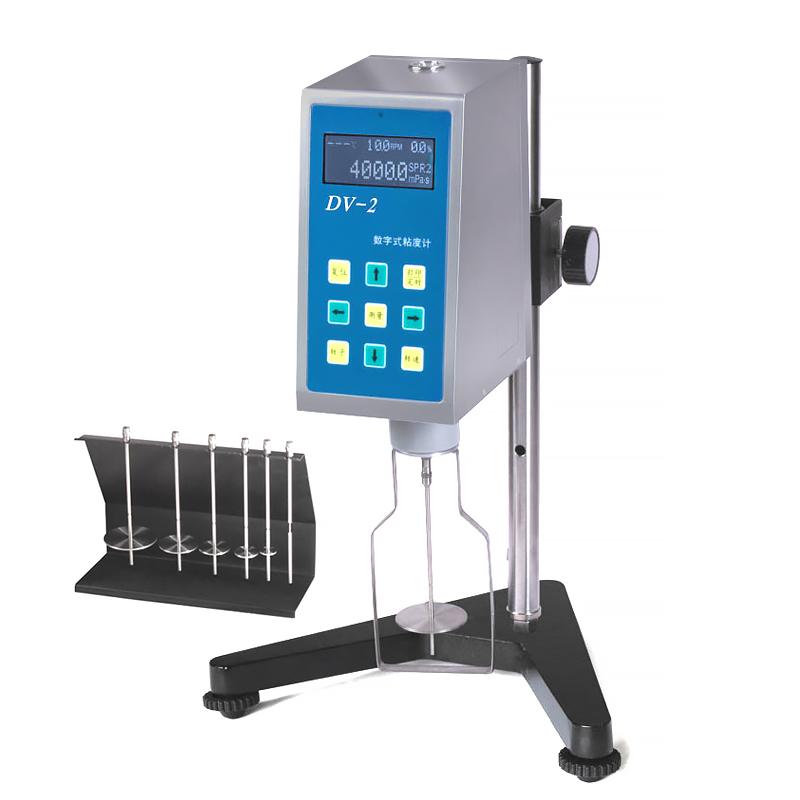

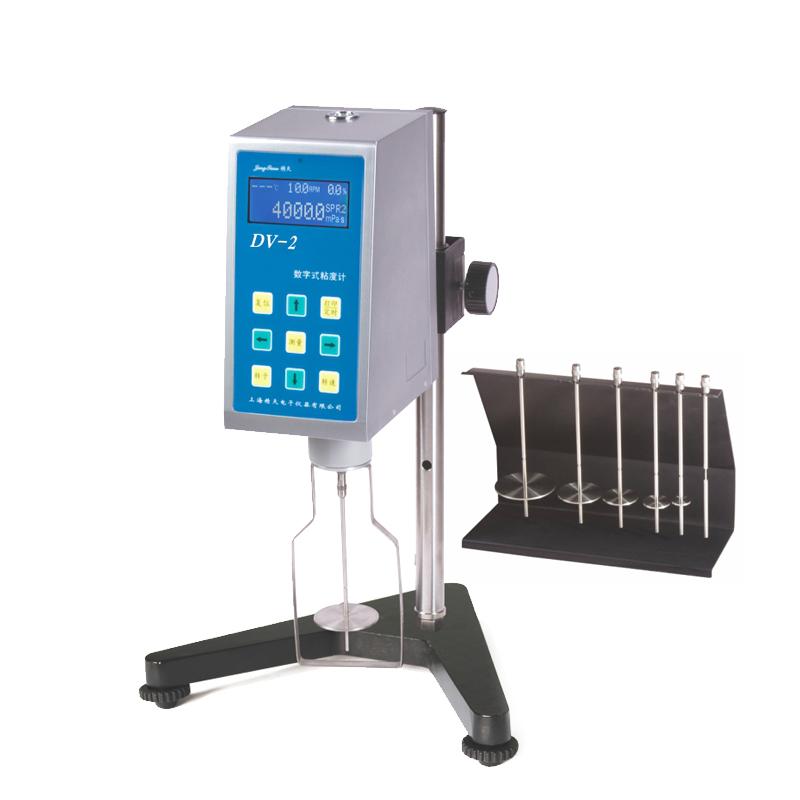

HuiNuo HBDV-2 digital display Rotational Viscometer is an intelligent digital Viscometer, using 16-bit microcomputer processor core control circuit and stepper motor high subdivision drive, the range is 320~ 320,000,000 mPa · s, the whole process is continuously variable, Rotation speed is stable. The instrument can measure the Tack resistance and dynamic viscosity of various liquids, and is widely used in oils, paints, food, paper, cosmetics, chemicals, coatings, capsules and other fluids viscosity measurement.
Features
1. Adopt 16-bit microcomputer processor core control circuit and stepper motor high subdivision drive to ensure wide range and stable Rotation speed.
2. Continuously variable speed throughout the process, Rotation speed control is flexible.

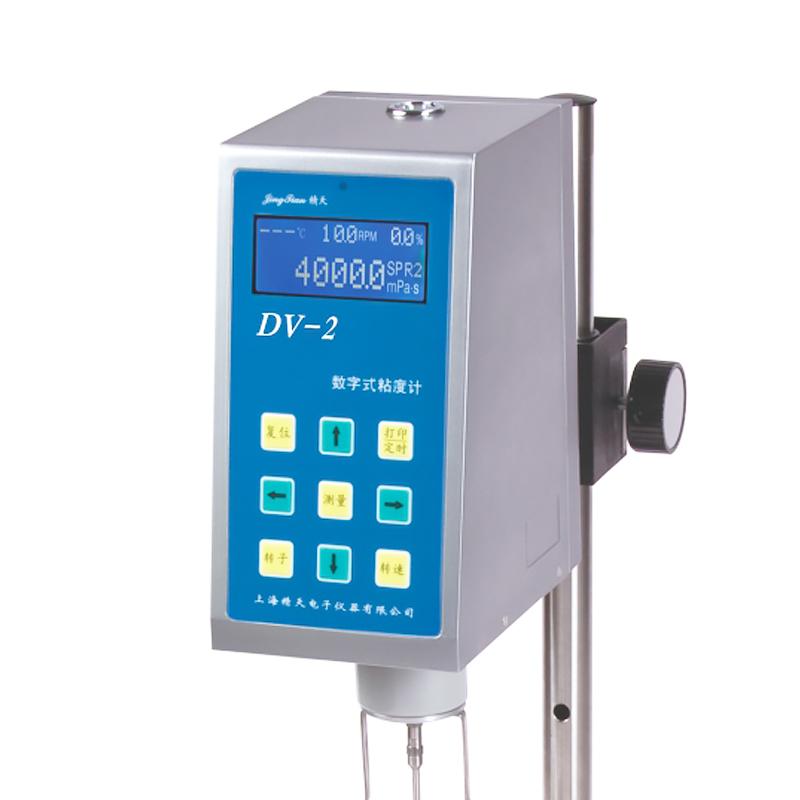

3. The LCD screen can display viscosity, shear rate, shear stress, Rotation speed, temperature, percentile torque, rotor number and the maximum viscosity value of the selected rotor at the current Rotation speed.
4. The circuit uses chip technology, resulting in a compact structure and a reasonable layout.

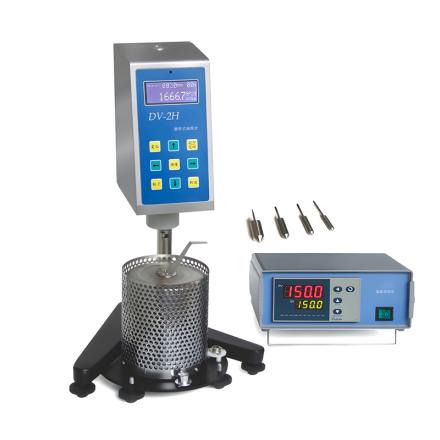

5. Can be equipped with special temperature control heating device measurement asphalt apparent viscosity and hot melt glue, paraffin, high polymer and other fluid viscosity.
6. Optional data collection analysis and drawing software can be connected to the computer for automatic data collection and preservation, support automatic operation and historical data comparison.
Principle
Tack resistance and dynamic viscosity of liquids are measured by the swirl/spin design of the Viscometer. Stepper motor high subdivision drive and microcomputer processor control enable stepless speed change and accurate measurement. The LCD screen directly displays relevant parameters such as viscosity, Rotation speed, temperature, etc.
Applications
Oil, paints, food, paper, cosmetics, chemicals, coatings, capsules, asphalt, hot glue, paraffin, high polymers
Steps
1. Connect the Dedicated Power Adapter.

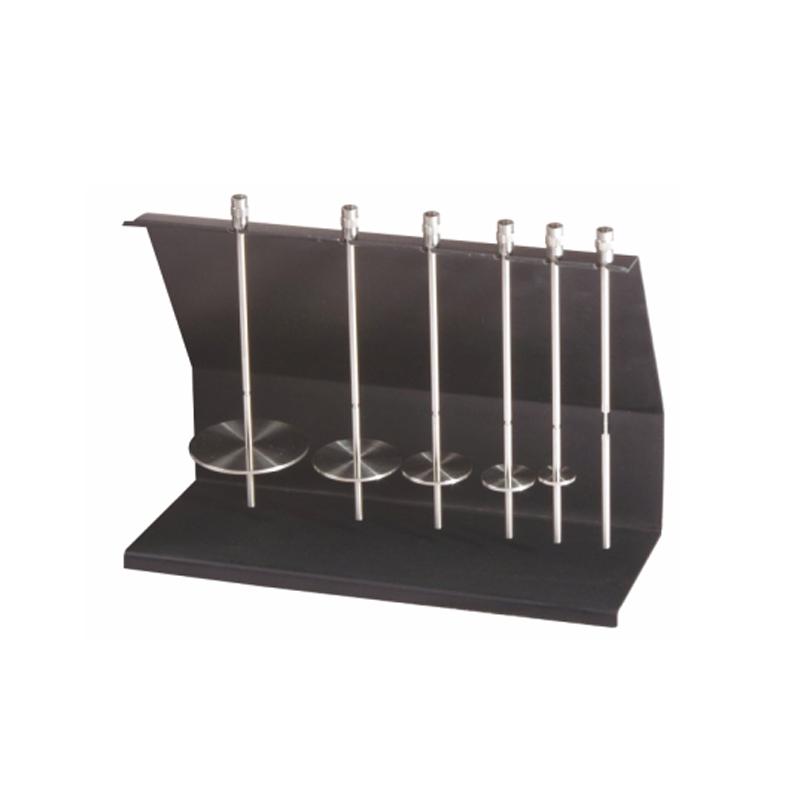

2. Select the appropriate rotor and install it.
3. Speed range 0.1~ 200rpm.
4. Measuring location of the sample.
5. Start the instrument, LCD display viscosity, Rotation speed, temperature and other parameters.
6. Record or collect data through software.
Notice
• Use dedicated Power Adapter, Input Voltage 100~ 240V, Frequency 50~ 60Hz.
• Ensure that the rotor is correctly installed and selected to avoid measurement errors.
• Check sample status before measurement to prevent contamination or damage to the instrument.
• Regularly calibrate instruments to ensure accuracy.
• Avoid use in extreme environments, affecting performance.
