Overview

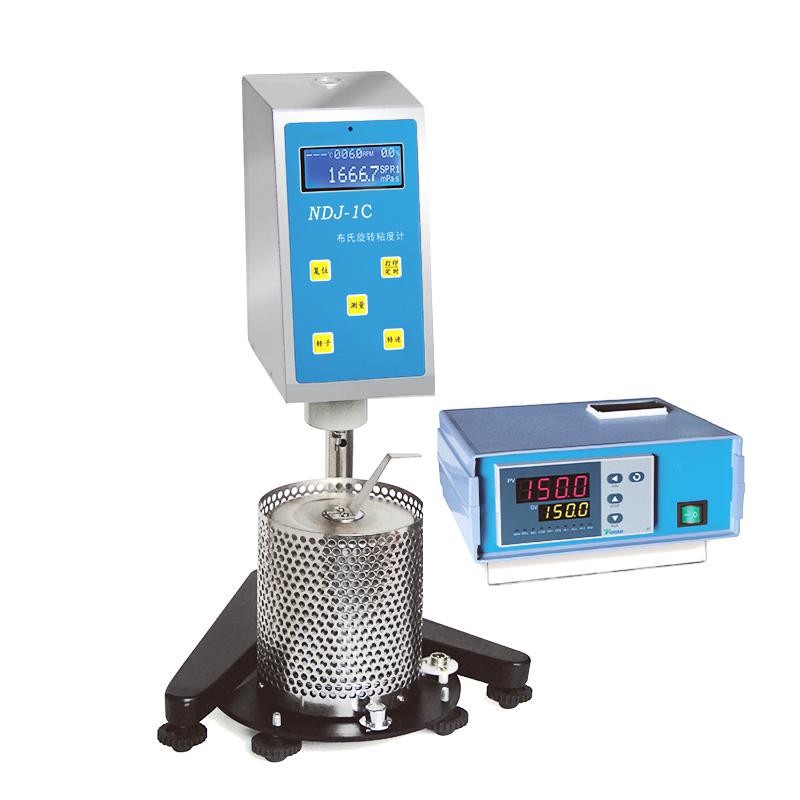

HuiNuo NDJ-1C cloth rotational viscometer is mainly used for the measurement of solid at room temperature and liquid after high temperature heating, such as asphalt, hot-melt adhesive, polyethylene (PE) wax, etc. The instrument can be used on a single machine, and the data is directly displayed on the LCD screen without secondary calculation. It can also be equipped with software to realize data collection analysis and full monitoring of viscosity-temperature Linear dispersion.
Features
1. High subdivision stepper motor, Rotation speed accurate and stable
2. LCD liquid crystal with blue backlight function, directly display viscosity, Rotation speed, percentile torque, rotor number and the maximum viscosity value and temperature value of the selected rotor at the current Rotation speed
3. The viscosity value shows continuous change, and there is an alarm sound beyond the Measurement range
4. Measurement performance reaches the level of foreign products of the same type through computer correction accuracy
5. High temperature furnace adopts embedded integral heating, uniform heating, small thermal inertia
Principle
The instrument measures the viscosity by the resistance of the swirl/spin rotor in the liquid when swirl/spin, uses a high-subdivision stepper motor to drive the rotor at the set Rotation speed swirl/spin, measures torque and calculates the viscosity value, and the data is directly displayed or collected and analyzed by software.
Applications
Asphalt, hot-melt adhesive, polyethylene (PE) wax and other high temperature liquid substance measurement
