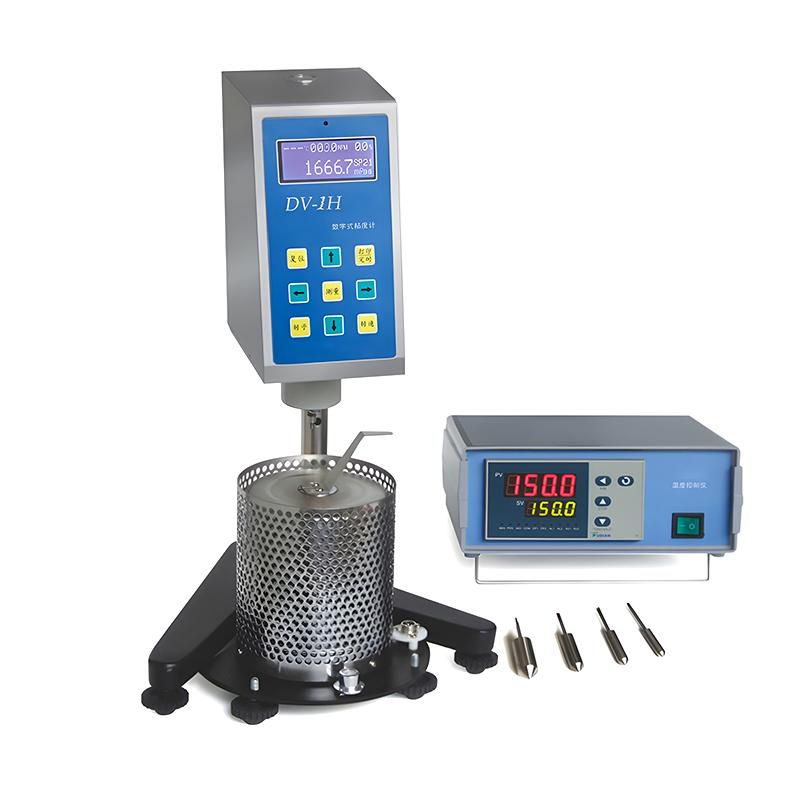

JINGTIAN LVDV-1H digital display swirl/spin type high temperature Viscometer high temperature embedded heating stepless speed change

Name: JINGTIAN LVDV-1H digital display swirl/spin type high temperature Viscometer high temperature embedded heating stepless speed change
Brand: JingTian
SKU: NB047569
Price: 1862.0 USD
Availability: InStock

$ 1862.00Ex works

Rotation speed is accurate and stable with high subdivision stepper motor, viscosity range of 10~ 1000000mPa · s, temperature accuracy +/- 0.1 ℃, support continuously variable speed and direct liquid crystal display, no need for secondary calculation.

Model

Get Quote

Category : Rotational Viscometer

Brand : JingTian

SKU : NB047569

Service :The delivery and service By NBCLab.Com

Overview

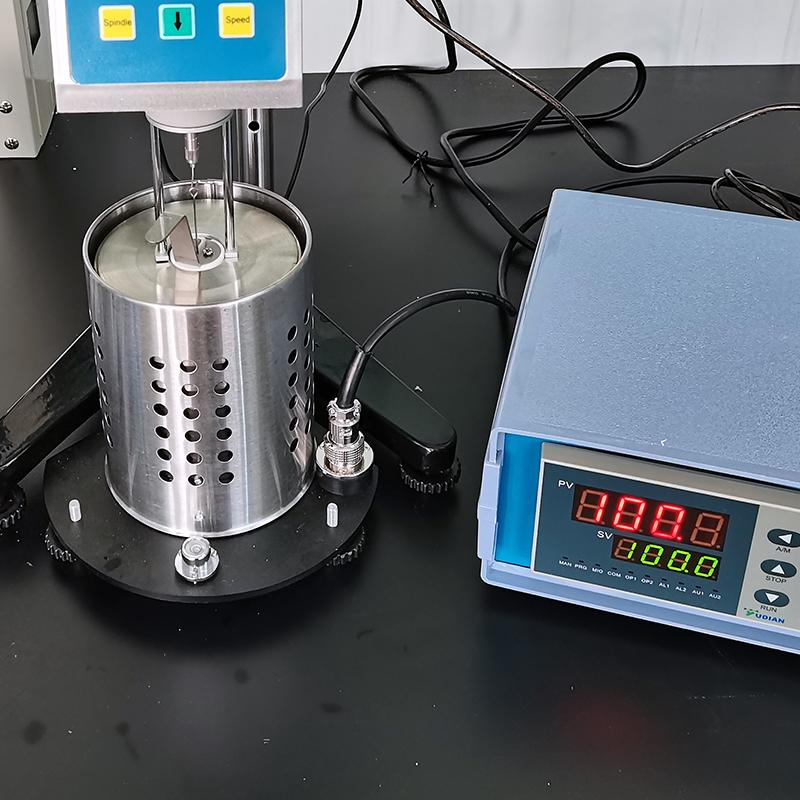

HuiNuo LVDV-1H digital display swirl/spin high temperature Viscometer is mainly used for the measurement of substances that are solid at room temperature and liquid after high temperature heating, such as asphalt, hot-melt adhesive, polyethylene (PE) wax, etc. The instrument can be used on a single machine, and the measurement data is directly displayed on the LCD screen without secondary calculation; it can also be equipped with data collection analysis and mapping software to realize data collection and monitor the viscosity-temperature throughout the process. Linear dispersion.

Features

1. Adopt high subdivision stepper motor, Rotation speed is accurate and stable 2. LCD liquid crystal with blue backlight function, directly display viscosity, Rotation speed, percentile torque, rotor number and the maximum viscosity value and temperature value of the selected rotor under the current Rotation speed 3. The viscosity value shows continuous change, and there is an alarm sound beyond the Measurement range 4. Measurement performance reaches the level of foreign products of the same type through computer correction accuracy 5. High temperature furnace adopts embedded integral heating, uniform heating, small thermal inertia 6. Rotation speed Control mode is continuously variable, the range is 0.1~ 99.9 rpm

Principle

Measurement principle of swirl/spin is adopted. High subdivision stepper motor is used to drive the rotor to swirl/spin in the sample to measure the viscosity of the sample.

Applications

Asphalt, hot-melt adhesive, polyethylene (PE) wax and other high temperature liquid substance measurement

Display mode
digital display
Viscosity Range
10~1000000 mPa·s

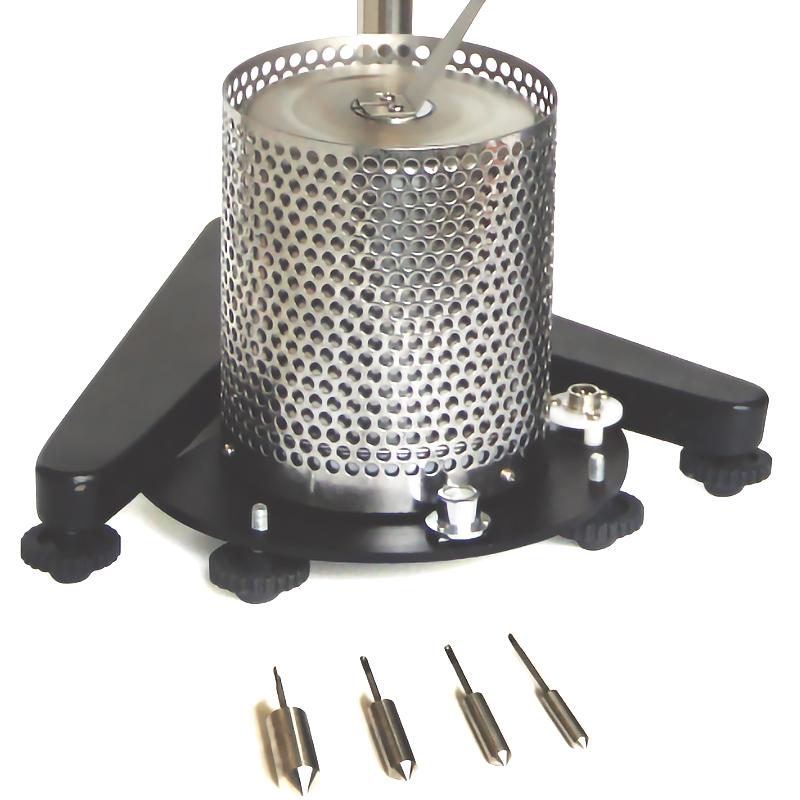

Rotor specification
21#、27#、28#、29#
reproducibility
±0.5% F.S
Measurement accuracy
±1% F.S
Power supply Voltage
220V 50Hz
Rotor speed
0.1~99.9 rpm
Display information
Viscometer: Viscosity, Rotation speed, Temperature, Percentimeter torque, Rotor number and the maximum viscosity value of the selected rotor at the current Rotation speed, etc. Temperature controller: Set temperature and actual Measuring temperature display.
capacity
10~20 mL
Temperature Range
RT+10~250℃
Temperature accuracy
±0.1 ℃
Speed control
CVT
