Overview

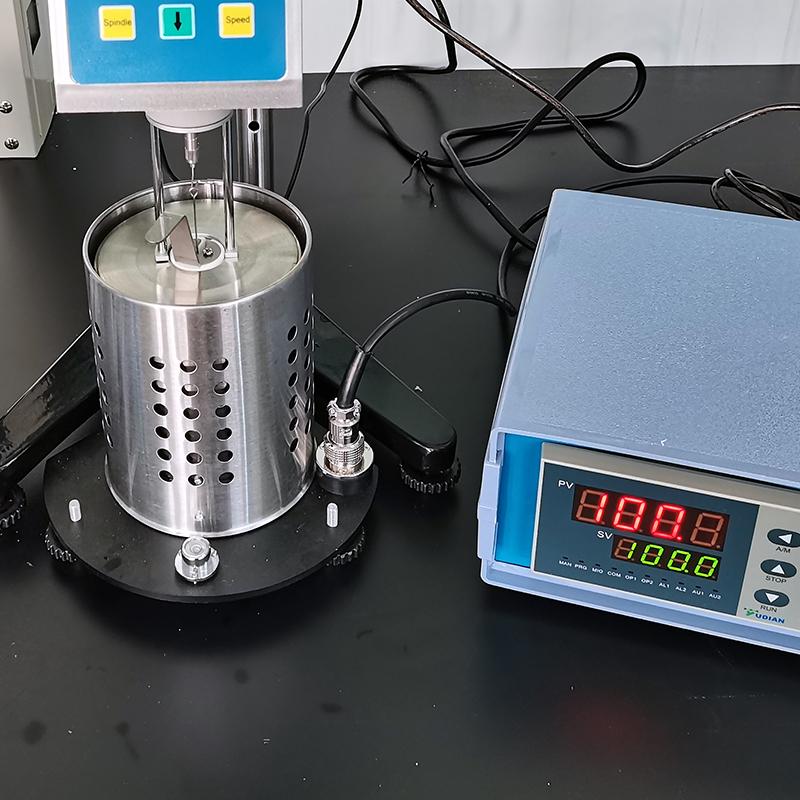

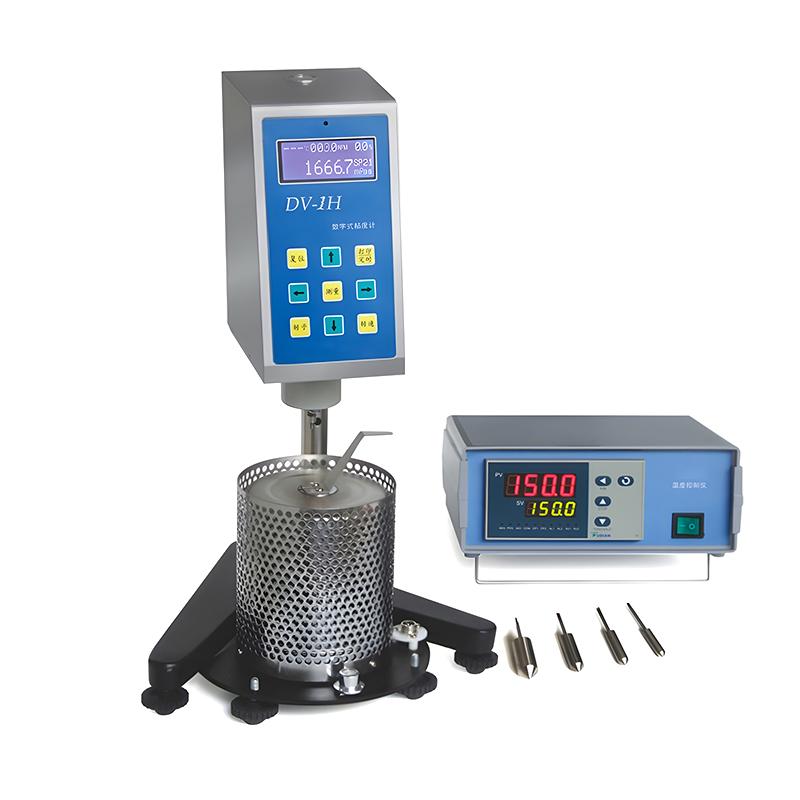

HuiNuo HBDV-1H digital display swirl/spin high temperature Viscometer is mainly used for the measurement of substances that are solid at room temperature and liquid after high temperature heating, such as asphalt, hot-melt adhesive, polyethylene (PE) wax, etc. The instrument can be used in a single machine, and the measurement data is directly displayed on the LCD screen without secondary calculation; it can also be equipped with optional data collection analysis and drawing software to realize data collection and monitor the viscosity-temperature throughout the process. Linear dispersion.
Features
1. Using high subdivision stepper motor, Rotation speed is accurate and stable.
2. LCD liquid crystal with blue backlight function, directly display viscosity, Rotation speed, percentile torque, rotor number and the maximum viscosity value and temperature value of the selected rotor at the current Rotation speed.
3. The viscosity value shows continuous change, and there is an alarm sound beyond the Measurement range.
4. Measurement performance is corrected by computer, and the accuracy reaches the level of foreign products of the same type.

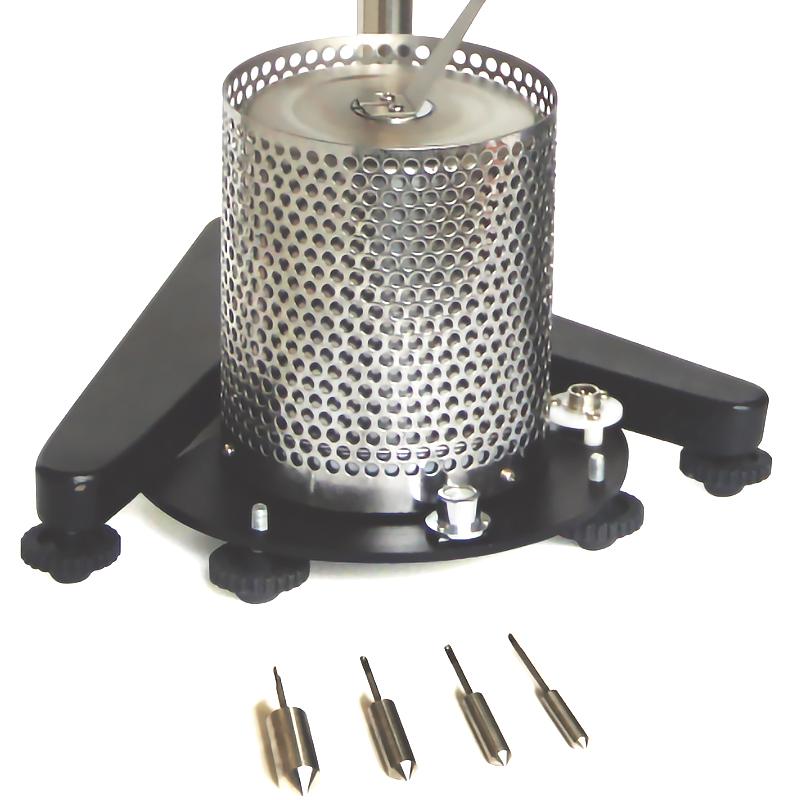

5. The high temperature furnace adopts embedded integral heating, uniform heating, and small thermal inertia.
6. Standalone or optional software for data collection and viscosity-temperature Linear dispersion monitoring.
Principle
Measurement mode of swirl/spin is used to test the viscosity of the sample under high temperature conditions. Rotor speed is controlled by stepper motor with stepless speed, combined with temperature Control system, viscosity, temperature and other parameters are monitored and displayed in real time.
Applications
Asphalt, hot-melt adhesive, polyethylene (PE) wax
