Overview

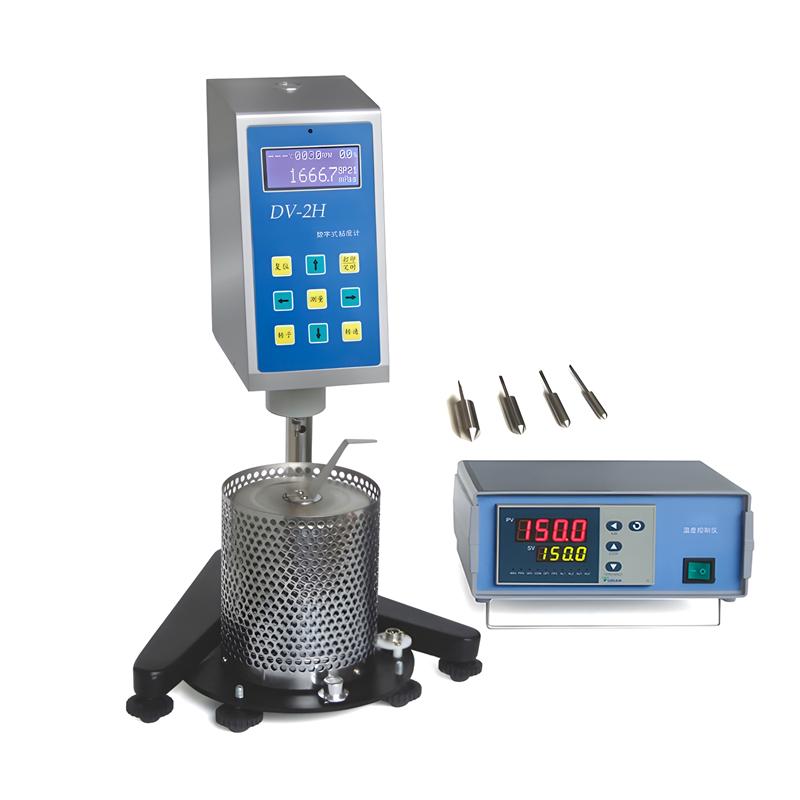

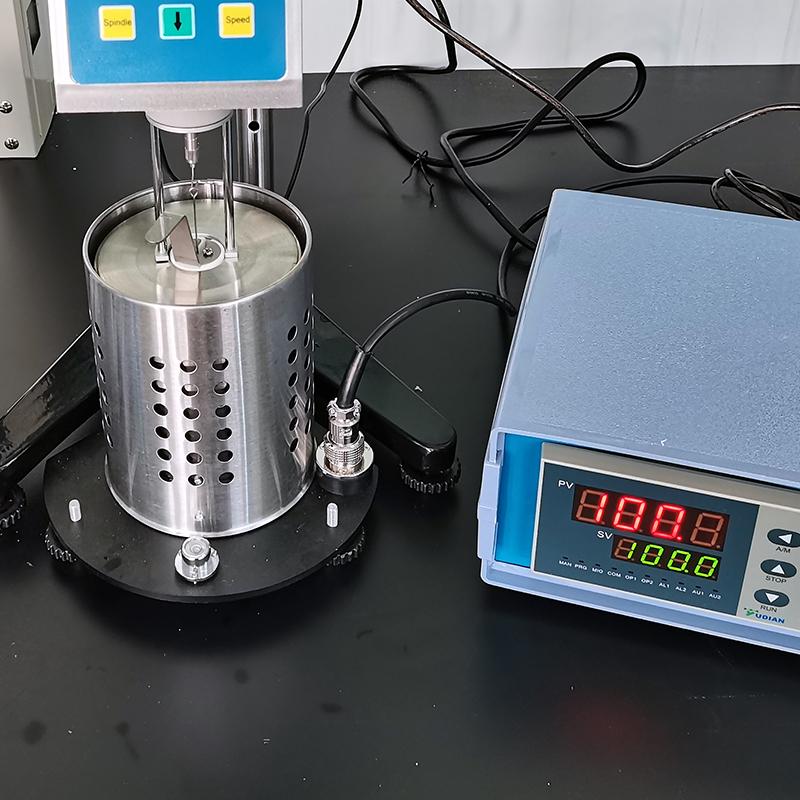

HuiNuo LVDV-2H digital display swirl/spin high temperature Viscometer is mainly used for the measurement of substances that are solid at room temperature and liquid after high temperature heating, such as asphalt, hot-melt adhesive, polyethylene (PE) wax, etc. The instrument can be used on a single machine, and the measurement data is directly displayed on the LCD screen without secondary calculation; it can also be equipped with "data collection analysis and drawing software" to realize data collection and Data analysis, and monitor the viscosity-temperature Linear dispersion throughout the process.
Features
1. Using high subdivision stepper motor, Rotation speed is accurate and stable.
2. LCD liquid crystal with blue backlight function, directly display viscosity, Rotation speed, percentile torque, rotor number and the maximum viscosity value and temperature value of the selected rotor at the current Rotation speed, DV-2 series can also display shear rate, shear stress.
3. The viscosity value shows continuous change, and there is an alarm sound beyond the Measurement range.
4. Measurement performance reaches the level of foreign products of the same type through computer correction accuracy.

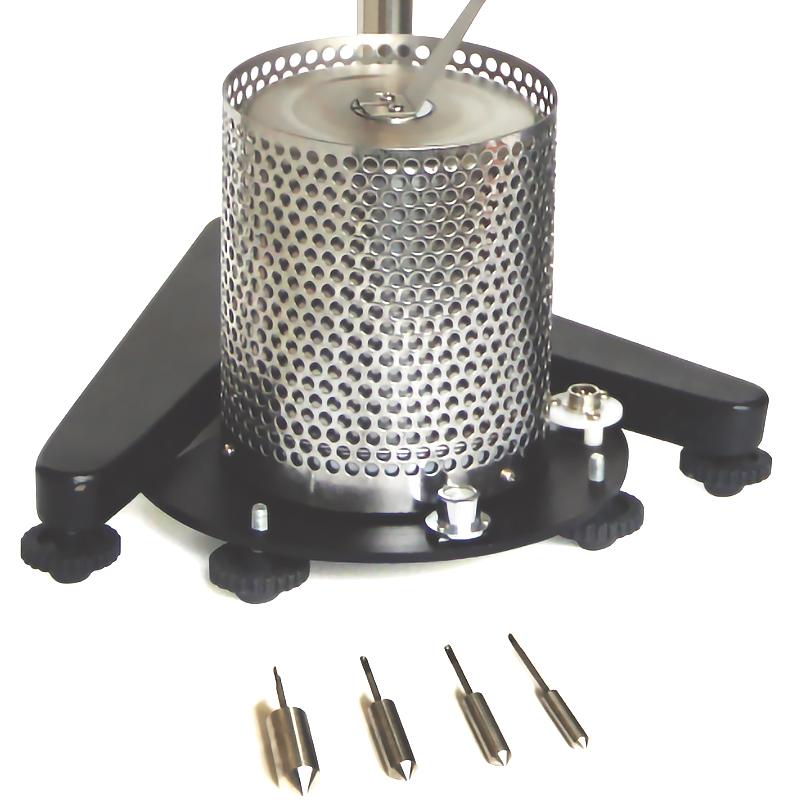

5. The high temperature furnace adopts embedded integral heating, uniform heating, and small thermal inertia.
Principle
The instrument uses swirl/spin design to measure the viscosity of substances in high temperature environment. The stepless variable speed control Rotor speed, combined with the temperature Control system, realizes accurate measurement and data collection of parameters such as viscosity, shear rate and shear stress.
Applications
Asphalt, hot-melt adhesive, polyethylene (PE) wax
Steps
1. Stand-alone use: The measurement data is directly displayed on the LCD screen without secondary calculation.
2. Optional software use: Realize data collection and Data analysis through "data collection analysis and drawing software", and monitor the viscosity-temperature Linear dispersion throughout the process.
Notice
• Measurement range beyond the alarm sound prompt.
• The sample capacity is 10~ 20mL.
• The power requirements are 220V 50Hz.
