Overview

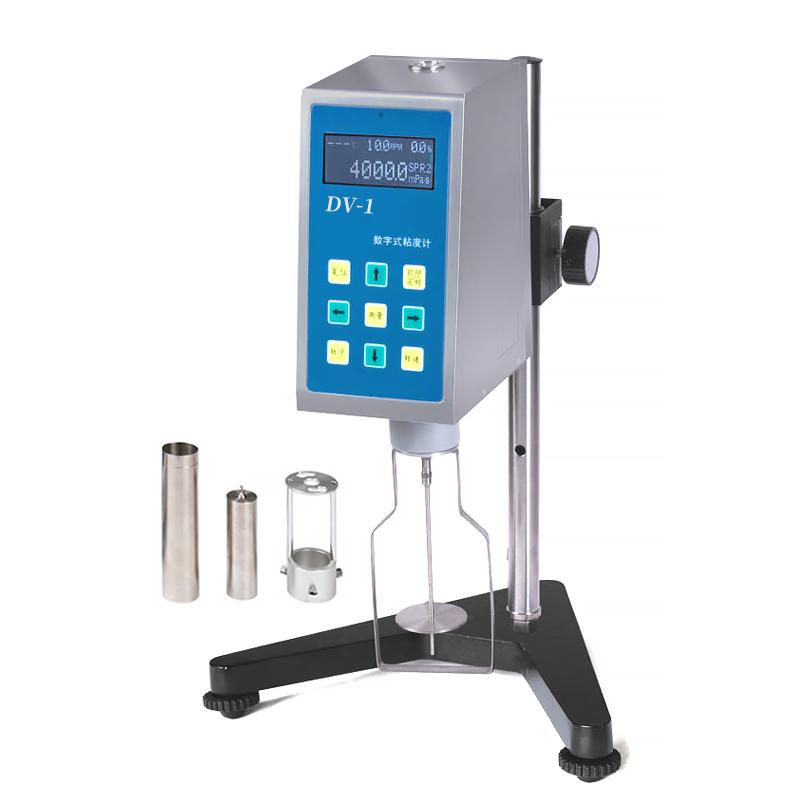

HuiNuo LVDV-1 + L0 digital display Rotational Viscometer is a general-purpose intelligent digital Viscometer, using a 16-bit microcomputer processor core control circuit and a stepper motor high subdivision drive, with a wide range, stepless speed change throughout the process, and stable Rotation speed. The LCD screen can display viscosity, shear rate, shear stress, Rotation speed, temperature, percentimeter torque, rotor number and the maximum viscosity value of the selected rotor at the current Rotation speed. The viscosity range covers 0.6 to 6,000,000 mPa · s.
Features

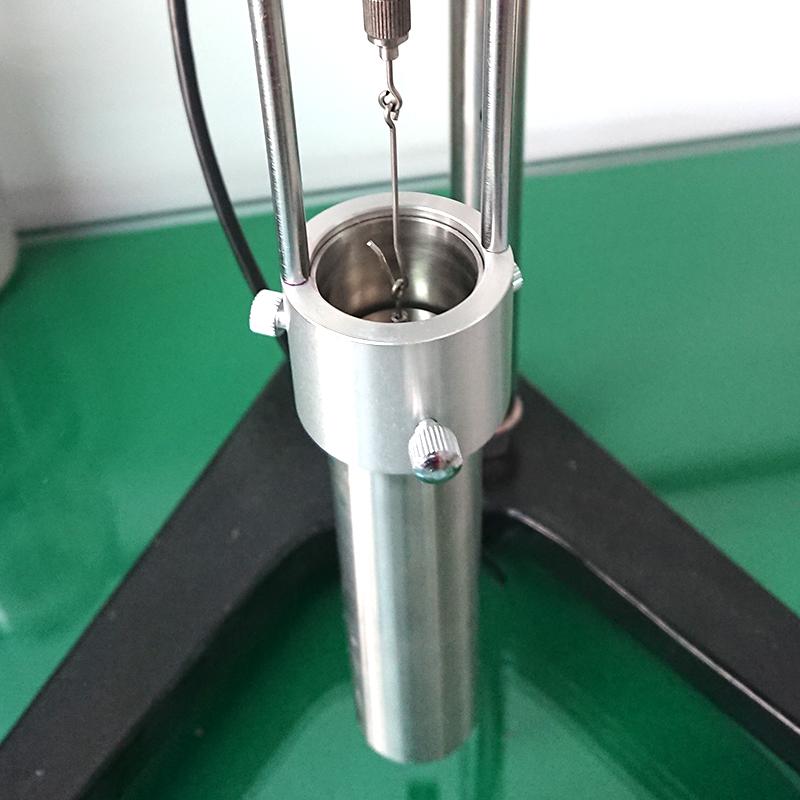

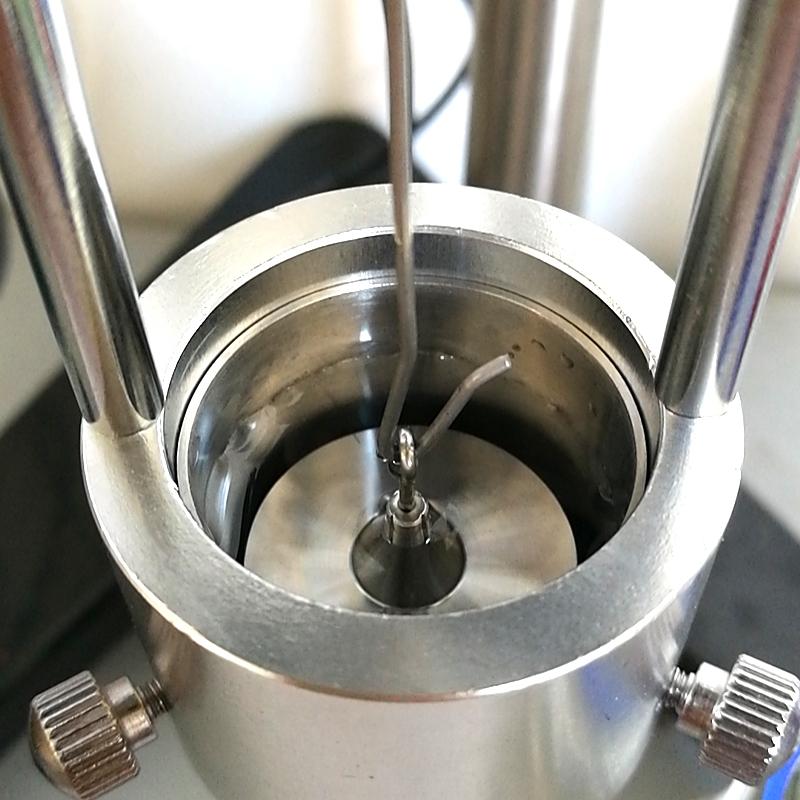

1. Accurate measurement of ultra-low viscosity samples
The sample size is only 25~ 30mL.
3. Can measure lower viscosity, with different models of Viscometer use
4. Adopt 16-bit microcomputer processor and stepper motor high-subdivision driver
5. Continuously variable speed throughout the process, Rotation speed is stable
6. The LCD screen displays a variety of parameter information
7. Wide viscosity range, covering 0.6 to 6,000,000 mPa · s
8. reproducibility +/- 0.5% F.S, Measurement accuracy +/- 1% F.S
Principle
Based on the principle of swirl/spin viscosity measurement, the Viscometer measures the Tack resistance and dynamic viscosity of the liquid by driving the rotor swirl/spin in the liquid through a stepper motor. Using continuously variable speed control Rotation speed, a microcomputer processor processes the data in real time and displays various parameters such as viscosity, Rotation speed, temperature, etc.
Applications
Oil, paints, food, paper, cosmetics, chemicals, coatings, capsules, asphalt, hot glue, paraffin, high polymers
