Overview

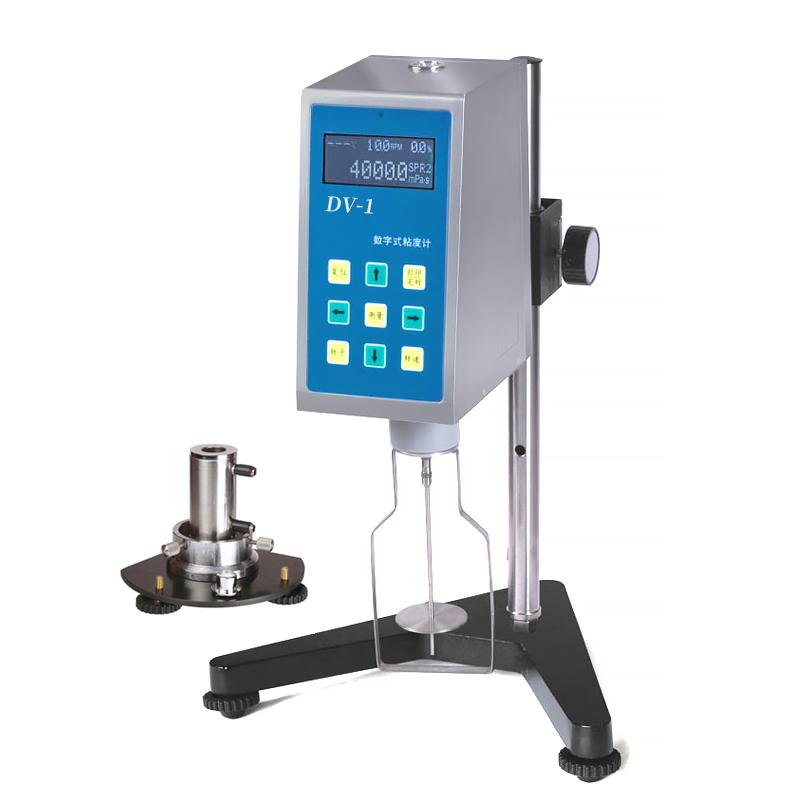

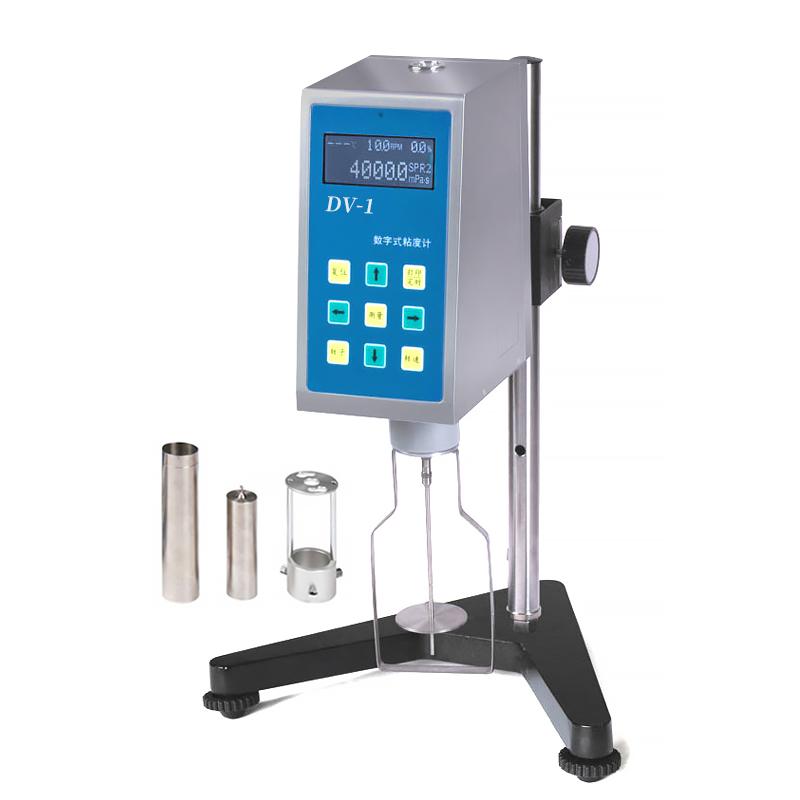

HuiNuo RVDV-1 + L0 digital display Rotational Viscometer is a general-purpose intelligent digital Viscometer, using a 16-bit microcomputer processor core control circuit and a stepper motor high subdivision drive, with a wide range of 80~ 40,000,000 mPa · s. The whole process is continuously variable, and the Rotation speed is stable. The LCD screen can display parameters such as viscosity, Rotation speed, temperature, percentile torque, rotor number and the maximum viscosity value of the selected rotor at the current Rotation speed.
Features

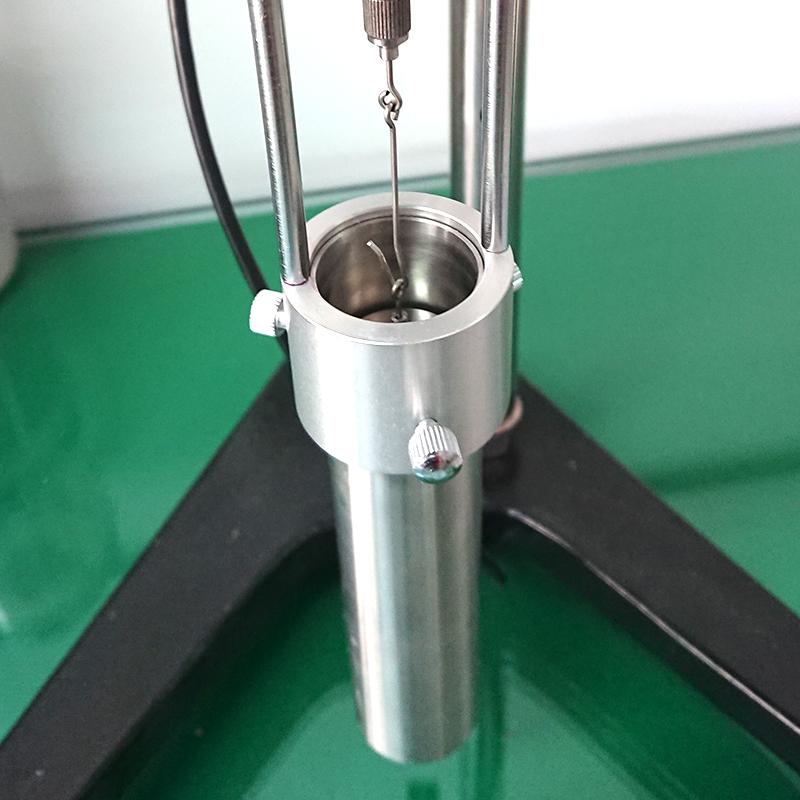

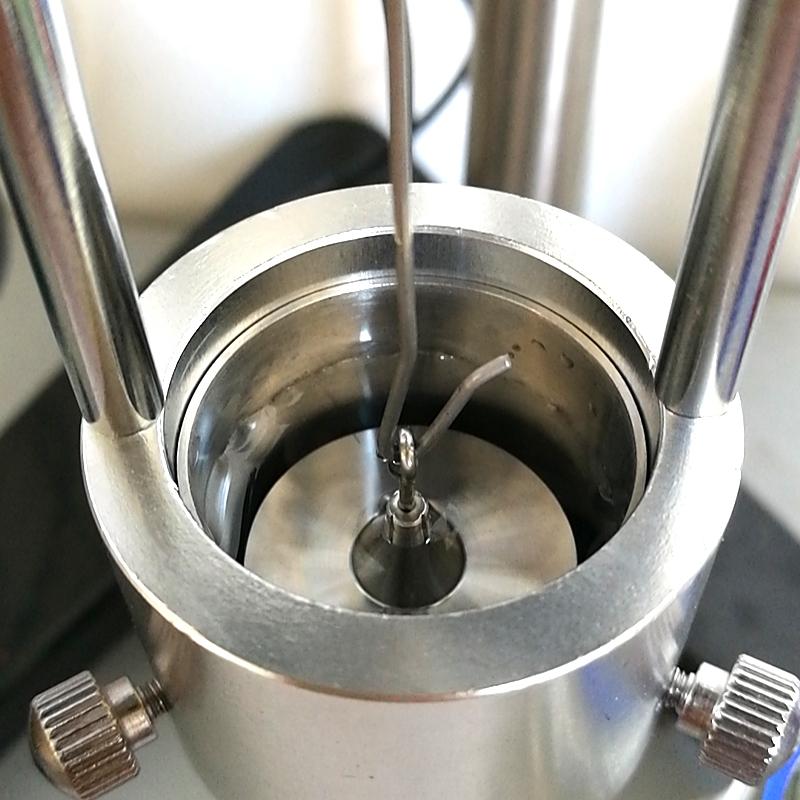

1. Accurate measurement of ultra-low viscosity samples
The sample size is only 25~ 30mL.
3. Can measure lower viscosity, with different models of Viscometer use
4. Adopt 16-bit microcomputer processor core control circuit
5. Stepper motor high subdivision drive
6. Continuously variable speed throughout the process, Rotation speed is stable
7. The LCD screen displays a variety of parameters
8. The circuit adopts chip technology, with a compact structure and reasonable layout
Principle
Tack resistance and dynamic viscosity of various liquids are measured using the swirl/spin Measurement principle. Control mode is continuously variable, the rotor swirl/spin in the range of 0.1 to 99.9 rpm, and the viscosity value is calculated by measuring the resistance of the liquid to the rotor.
Applications
Oil, paints, food, paper, cosmetics, chemicals, Coatings, capsules and other fluid viscosity measurement
Steps
1. Prepare 25~ 30mL samples
Select the appropriate rotor (L0, R2, R3, R4, R5, R6, R7)
3. Rotation speed (0.1~ 99.9rpm)
4. Start measurement
5. Read parameters such as viscosity, Rotation speed, temperature, percentile torque, rotor number and the maximum viscosity value that can be measured at the current Rotation speed of the selected rotor displayed on the LCD screen
