Overview

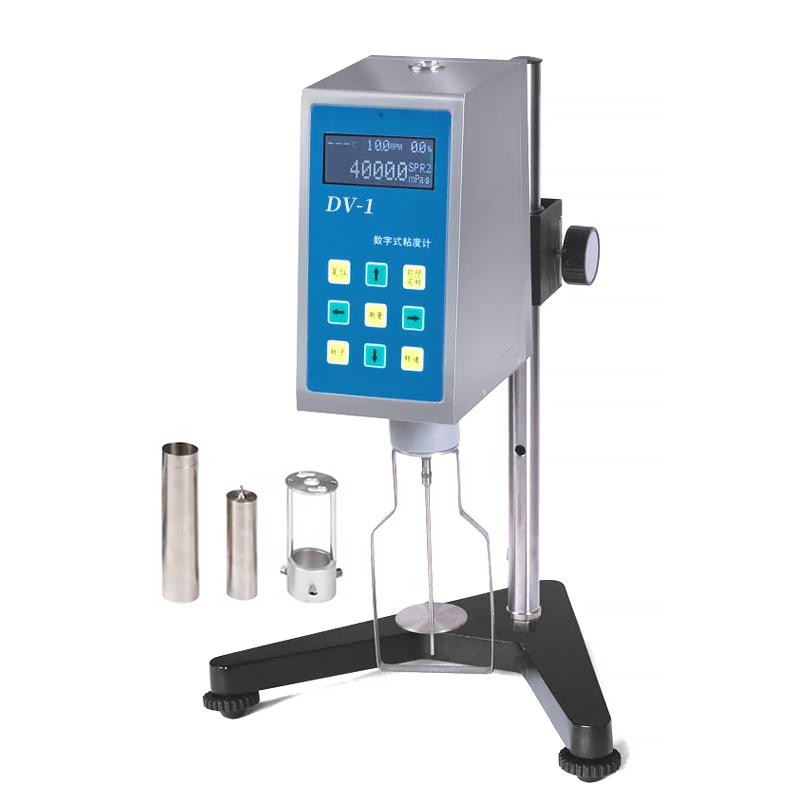

HuiNuo HBDV-1 + L0 digital display Rotational Viscometer is the most versatile Viscometer. It uses a 16-bit microcomputer processor core control circuit and a stepper motor high subdivision drive. The range is 50~ 320,000mPa · s. The whole process is stepless and variable, and the Rotation speed is stable. The LCD screen can directly display the viscosity, Rotation speed, temperature, percentimeter torque, rotor number and the maximum viscosity value of the selected rotor at the current Rotation speed. This product can accurately measure ultra-low viscosity samples, and the sample volume only needs 25~ 30mL.
Features
1. Adopt 16-bit microcomputer processor core control circuit and stepper motor high-subdivision drive
2. Wide range of 50~ 320,000mPa · s
3. Continuously variable speed throughout the process, Rotation speed is stable
4. The LCD screen directly displays the viscosity, Rotation speed, temperature, percentile torque, rotor number and the maximum viscosity value of the selected rotor at the current Rotation speed
5. Accurate measurement of ultra-low viscosity samples
6. The sample volume is only 25~ 30mL.
7. Can measure lower viscosity, with different models of Viscometer use
Principle
The Viscometer uses the swirl/spin Measurement principle to determine the dynamic viscosity of the liquid by measuring the Tack Resistance of the liquid to the swirl/spin rotor. The instrument drives the rotor to swirl/spin in the liquid by a stepper motor, measures the required torque, and calculates the viscosity value through a microcomputer processor.
Applications
Oil, paints, food, paper, cosmetics, chemicals, Coatings, capsules and other fluid viscosity measurement
Standards
Reproducibility ： +/- 0.5% F.S, Measurement accuracy ： +/- 1% F.S
