Overview

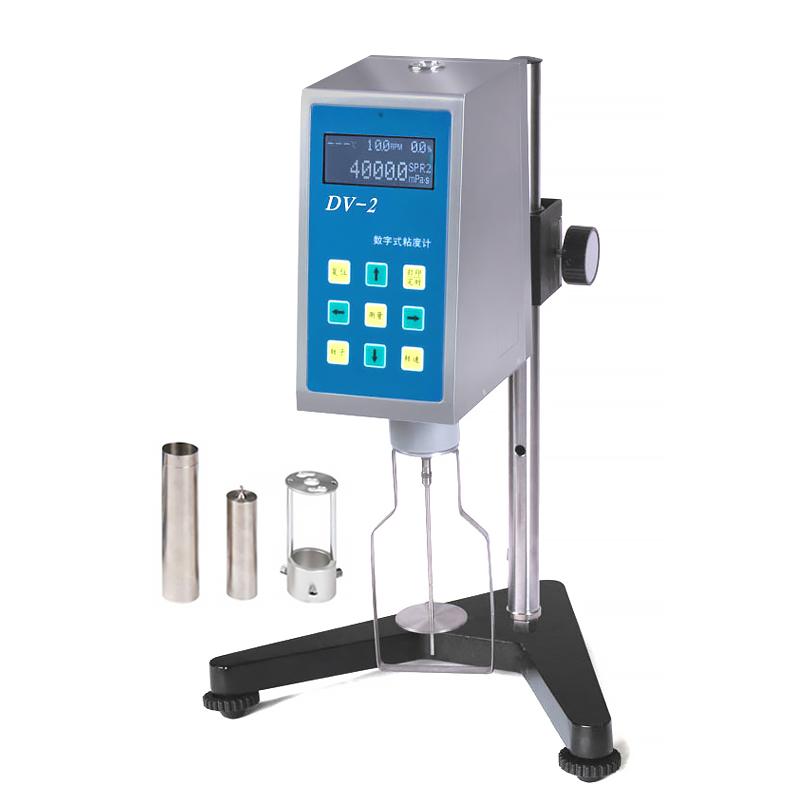

HuiNuo RVDV-2 + L0 digital display Rotational Viscometer is an intelligent digital Viscometer, using 16-bit microcomputer processor core control circuit and stepper motor high subdivision drive, wide range, stepless speed throughout the process, Rotation speed is smooth. The LCD screen can directly display viscosity, Rotation speed, temperature, percentile torque, rotor number and the maximum viscosity value of the selected rotor at the current Rotation speed. Among them, the DV-2 type can also display shear rate and shear stress. Standard ultra-low viscosity adapter, viscosity measurement range 3~ 40000000mPa · s.
Features
1. Adopt 16-bit microcomputer processor core control circuit and stepper motor high subdivision drive, wide range, stepless variable speed throughout the process, Rotation speed is stable.
2. The LCD screen can directly display the viscosity, Rotation speed, temperature, percentile torque, rotor number and the maximum viscosity value of the selected rotor at the current Rotation speed. The DV-2 type can also display the shear rate and shear stress.
3. The circuit uses chip technology, resulting in a compact structure and a reasonable layout.
4. Standard ultra-low viscosity adapter, accurate measurement of ultra-low viscosity samples, the sample volume is only 25~ 30mL.
5. Can measure low viscosity, with different models of Viscometer use.
6. The main performance indicators have reached the advanced level of foreign congeneric products.
Principle
Measuring method of swirl/spin, the Viscometer uses a stepper motor to drive the rotor to swirl/spin in the liquid to measure the Tack resistance and dynamic viscosity of the liquid. The microcomputer processor controls the Rotation speed and data processing. Measurement parameters are displayed in real time on the LCD screen.
Applications
Oil, paints, food, paper, cosmetics, chemicals, coatings, capsules, asphalt, hot glue, paraffin, high polymers
