Overview

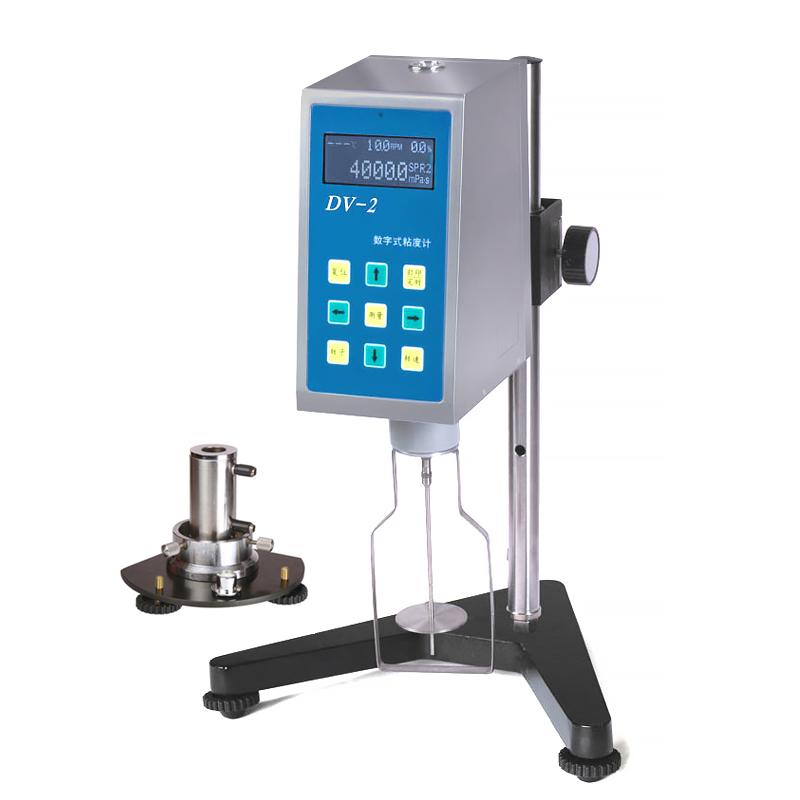

HuiNuo LVDV-2 + SSA digital display Rotational Viscometer is an intelligent digital Viscometer with 16-bit microcomputer processor core control circuit and high subdivision drive of stepper motor. It has the characteristics of wide range, stepless speed change throughout the process, and smooth Rotation speed. The LCD screen can display viscosity, shear rate, shear stress, Rotation speed, temperature, percentimeter torque, rotor number and the maximum viscosity value of the selected rotor at the current Rotation speed. The viscosity range covers 6~ 6000000mPa · s, which is widely used in the viscosity measurement of oils, paints, food, paper, cosmetics, chemicals, coatings, capsules and other fluids.
Features
1. Adopt 16-bit microcomputer processor and stepper motor high subdivision drive to ensure smooth Rotation speed
2. Wide range, continuously variable speed throughout the process
3. The LCD screen displays a number of parameters: viscosity, shear rate, shear stress, Rotation speed, temperature, percentile torque, rotor number and maximum measurable viscosity value
4. Equipped with special temperature control heating device, can measure asphalt apparent viscosity and hot melt glue, paraffin, high polymer and other fluids
5. Optional data collection analysis and drawing software, connect the computer to achieve automatic data collection and storage
6. Equipped with a small number of sample adapters, the sample volume is only 10~ 20mL, suitable for valuable sample testing
7. Easy to disassemble and clean
Principle
Tack resistance and dynamic viscosity of various liquids are measured using the swirl/spin Measurement principle. Control mode is continuously variable, the rotor swirl/spin in the range of 0.1~ 200rpm, and the viscosity value is calculated by detecting the resistance.
Applications
Oil, paints, food, paper, cosmetics, chemicals, coatings, capsules, asphalt, hot glue, paraffin, high polymers
