Overview

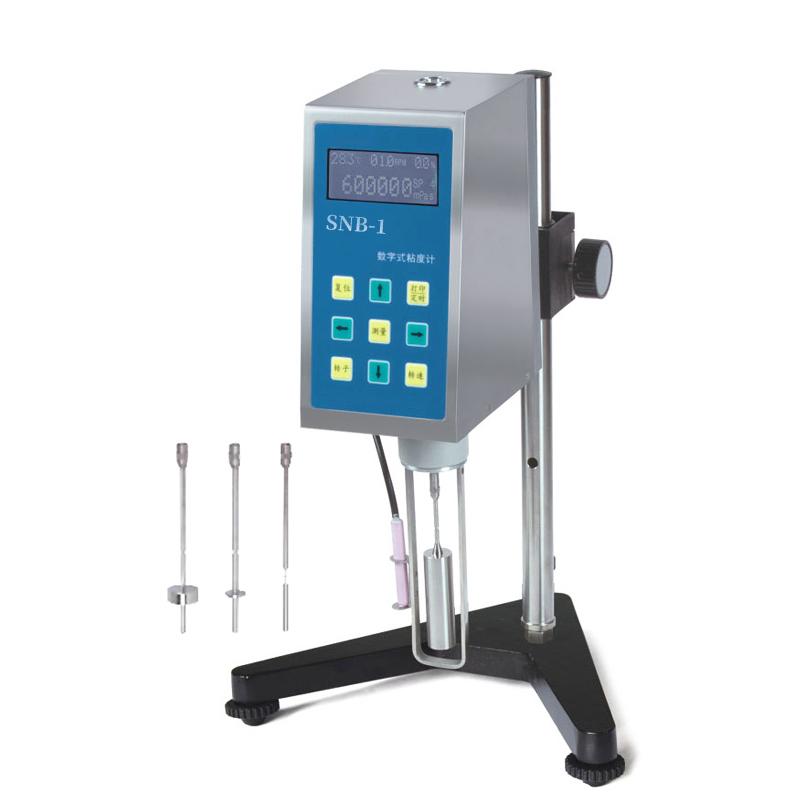

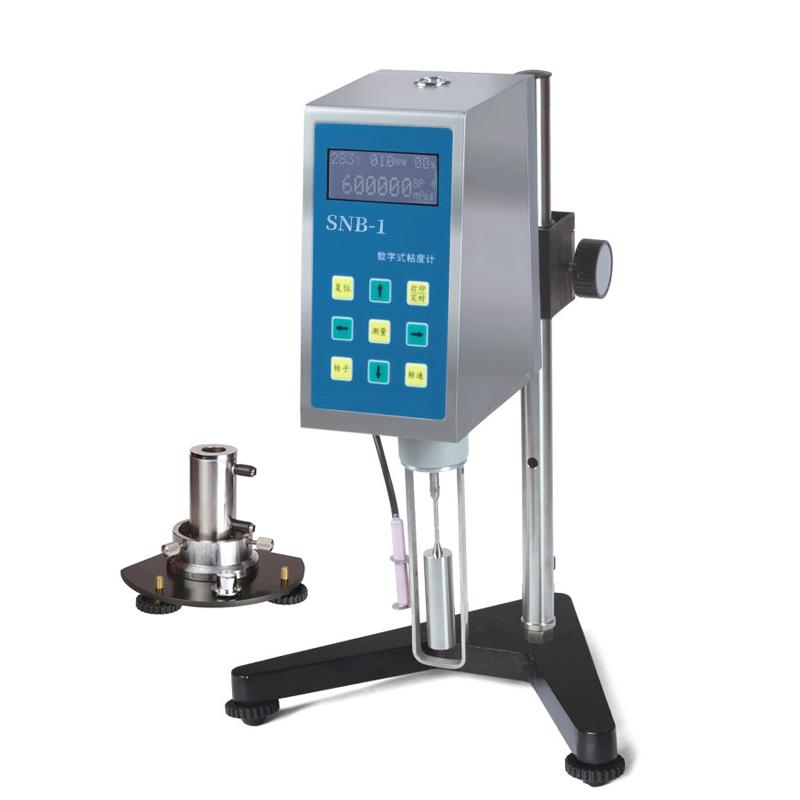

The HuiNuo SNB-1 + printer is a digital Rotational Viscometer equipped with a micro monochrome needle printer for data collection. Its LCD displays viscosity, shear rate, shear stress, Rotation speed, temperature, percentimeter torque, rotor number and the maximum viscosity value measurable at the current Rotation speed of the selected rotor. The viscosity measurement range is 20 to 600,000 mPa · s.
Features
1. The LCD screen displays a variety of parameters, including viscosity, shear rate, shear stress, Rotation speed, temperature, percentile torque, rotor number and maximum measurable viscosity value

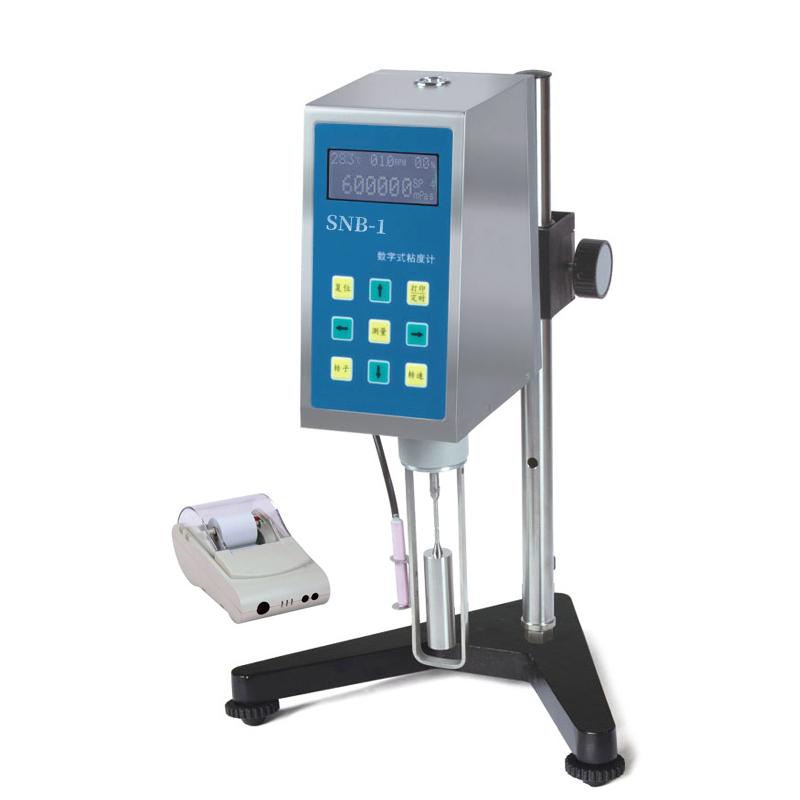

2. Equipped with a micro monochrome needle printer, which can collect and print data such as temperature, rotor, Rotation speed, viscosity value and percentile torque
3. Wide viscosity measurement range, covering 20~ 600,000mPa · s
4. High reproducibility, +/- 0.5% F.S
5. Measurement accuracy of +/- 1% F.S
6. Rotation speed control adopts stepless transmission mode, range 1~ 60rpm
7. Provide a variety of rotor specifications: L1 #, L2 #, L3 #, L4 #
Principle
The product works on the principle of Rotational Viscometer, the rotor swirl/spin in the sample, measurement of parameters such as viscosity, shear rate, shear stress, and control of Rotation speed through stepless speed change for accurate measurement and data collection.
Steps
1. Connect a dedicated Power Adapter (input 100~ 240V, 50~ 60Hz)
2. Select and install the appropriate rotor (L1 #, L2 #, L3 #, L4 #)
3. Set the required Rotation speed (continuously variable speed within the range of 1~ 60rpm)
4. Start measurement, LCD display viscosity, Rotation speed, percentimeter torque, rotor number and maximum measurable viscosity value, etc
5. Use the micro printer to collect and print data such as temperature, rotor, Rotation speed, viscosity value and percentile torque
