Overview

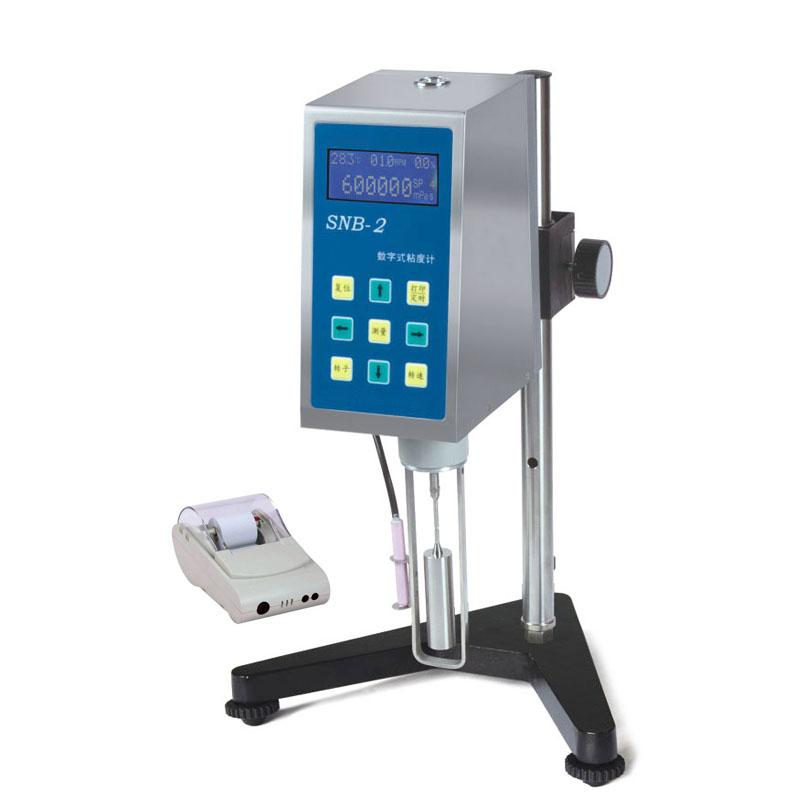

The HuiNuo SNB-2 + printer is a digital Rotational Viscometer that can display viscosity, shear rate, shear stress, Rotation speed, temperature, percentile torque, rotor number and the maximum viscosity value of the selected rotor at the current Rotation speed. The product comes standard with the printer's High Accuracy Viscosity Tester, which can quickly print measurement data. Measurement range 12~ 6000000mPa · s, Measurement accuracy +/- 1%, suitable for viscosity tests such as Coatings, Glues, Food, inks, Adhesives, etc.
Features
1. Display viscosity, shear rate, shear stress, Rotation speed, temperature, percentile torque, rotor number and the maximum viscosity value of the selected rotor at the current Rotation speed
2. Standard micro monochrome needle printer for data collection
3. Printing content includes temperature, rotor, Rotation speed, viscosity value and percentile torque, etc
4. Measurement range 12~ 6000000mPa · s, Measurement accuracy +/- 1%
5. reproducibility +/- 0.5% F.S
6. Rotation speed Control mode is continuously variable, Rotor speed 0.1~ 99.9rpm
7. Equipped with a dedicated Power Adapter, input 100~ 240V 50~ 60Hz
Principle
The digital Rotational Viscometer uses the swirl/spin Measurement principle to measure the viscosity value by the resistance of the rotor when swirl/spin in the sample. The system displays and prints viscosity, Rotation speed, temperature and other related parameters in real time for High Accuracy viscosity testing.
Applications
Coatings, glues, food, inks, Adhesives and other viscosity tests
